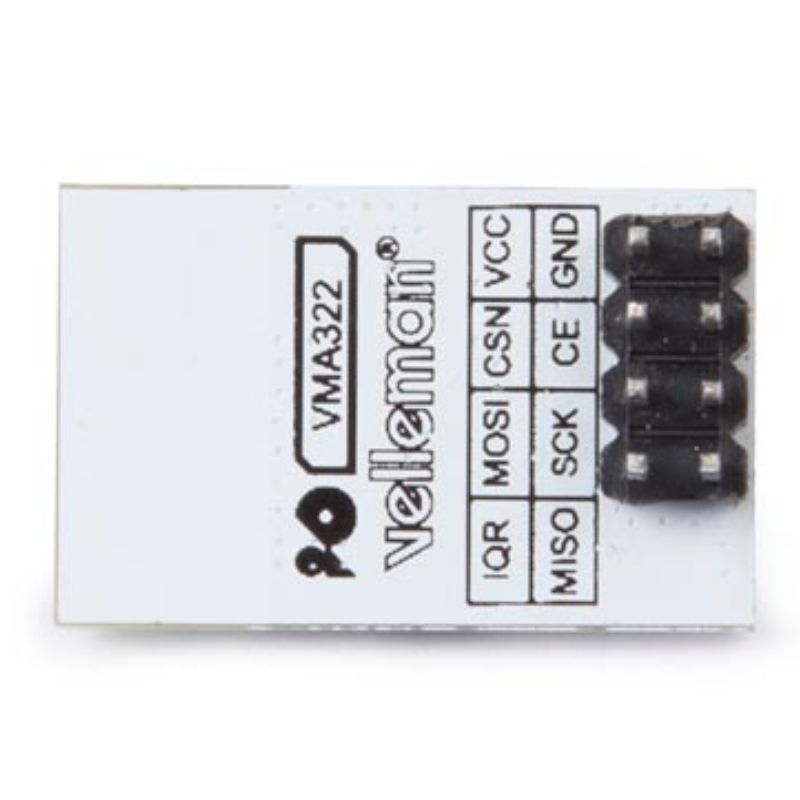

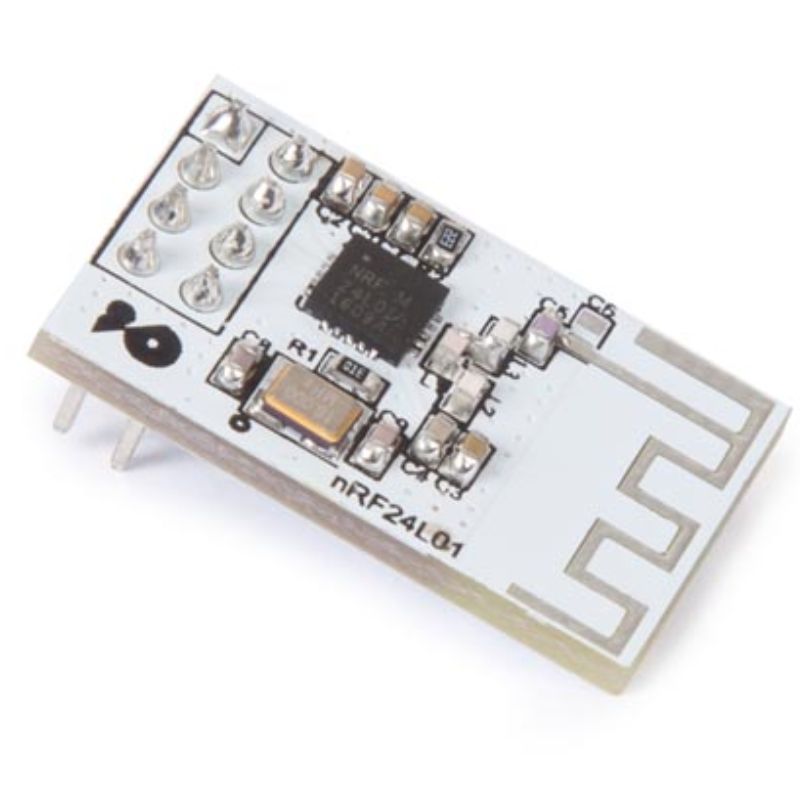

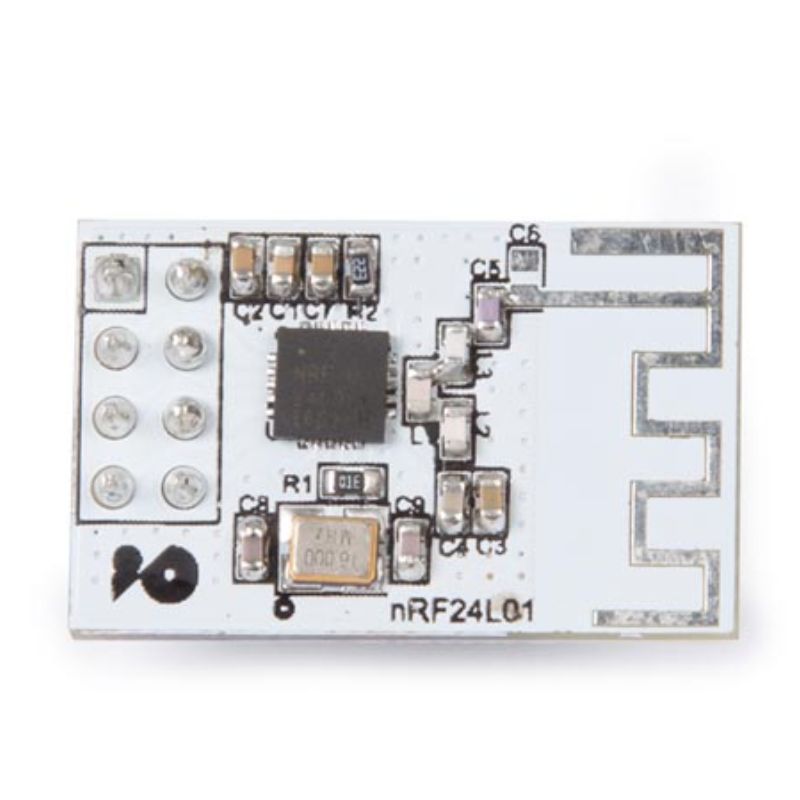

This module based on Nordic nRF24L01, highly integrated, ultra low
power (ULP) 2Mbps RF transceiver for the 2.4GHz ISM (Industrial,
Scientific and Medical) band. Nordic nRF24L01+ integrates a complete
2.4GHz RF transceiver, RF synthesizer, and baseband logic including the
Enhanced ShockBurst™ hardware protocol accelerator supporting a
high-speed SPI interface for the application controller.
Features
- worldwide license-free 2.4 GHz ISM band operation
- 250 kbps, 1 Mbps and 2 Mbps on-air data-rate options
- enhanced ShockBurst™ hardware protocol accelerator
- ultra low power consumption - months to years of battery lifetime
Specifications
- power supply: 1.9 - 3.6 V
- IO port working voltage: 0 - 3.3 V
- transmitting rate: +7 dB
- receiving sensitivity: < 90 dB
- transmission range: 250 m in open area
- dimensions: 15 x 29 mm
-
Age
8+
-
Part No
WPI322
-
Manufacturer
Velleman
-
Stock No
1814-QA1-2
-
SKU No
254083
*Prices subject to change without notice. We reserve the right to limit quantities.
To purchase bulk quantities, Please contact our Sales Department
(+1-416-494-8999) or email shop@sayal.com
Velleman WPI322 Document 1
