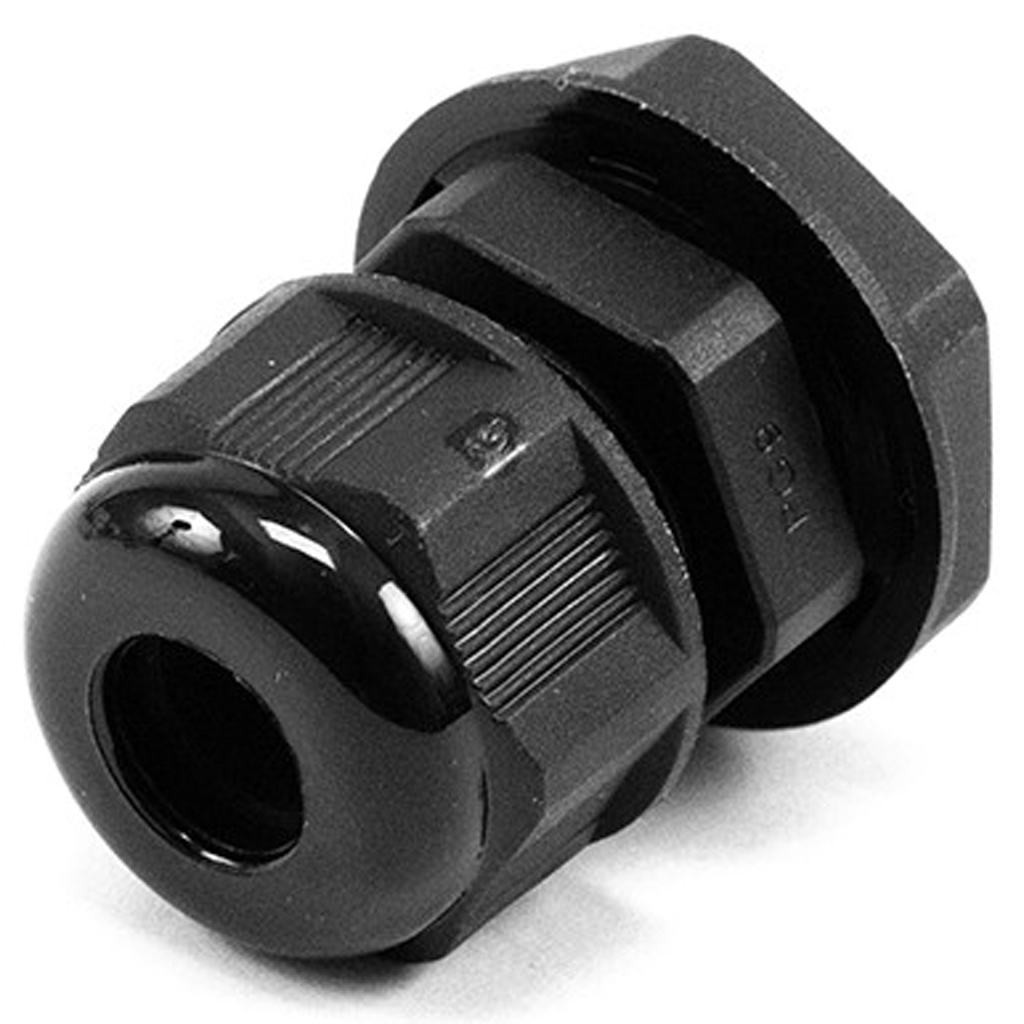

Strain relief cordgrip pg9 15mm dia 8mm wire nylon blk 30 long
STRAIN RELIEF CORDGRIP PG9 15MM DIA 8MM WIRE NYLON BLK 30 LONG
Image is for illustrative purposes only. Please refer to product description.

STRAIN RELIEF CORDGRIP PG9 15MM DIA 8MM WIRE NYLON BLK 30 LONG

Part#:1427NCGPG9B Stock#: KEHJ-1611 SKU: 255221
$2.95 CAD
Availability: 123 in stock
Stock and Aisle Location
# Store Qty Aisle
Burlington14
Cambridge11
Markham5
Mississauga33
Scarborough10
Vaughan3
Warehouse 47

  • Liquid-tight cordgrip made from nylon

  • Available in black (RAL 9005)

  • Used where cable is entering or leaving an enclosure.

  • Accepts a wide range of cable diameters due to large opening and NBR (nitrile rubber) seal.

  • The strain relief elements tighten in a circular sequence on the sealing ring to give outstanding strain relief without twisting or damaging the cable.

  • Use the cordgrip with the smallest maximum diameter that will fit your application (see table below).

  • Nylon locknut and EPDM o-ring included (as shown).

  • Operating Temperatures:

    • Static state: -40°C to 100°C (up to 120° instantaneous)

    • Dynamic state: -20°C to 80°C (up to 100° instantaneous)

  • Designed to meet NEMA Type 4, 4X, 6, 6P, 12 & 13 - Protection to IP68.

  • UL94-V2 flammability rating.

  • UL listed.


Specsheet

Material Nylon

Color Black

Thread Size (D) PG9

Mounting Hole Dia 15mm

Wire Diameter Min.4 mm Max.8 mm

Outer Length (L) 22 mm

Inner Length (T) 8mm

*Prices subject to change without notice. We reserve the right to limit quantities.
  • Age
    0+
  • Part No
    1427NCGPG9B
  • Manufacturer
    HAMMOND MANUFACTURING LTD.
  • Stock No
    KEHJ-1611
  • SKU No
    255221

To purchase bulk quantities, Please contact our Sales Department
(+1-416-494-8999) or email shop@sayal.com
