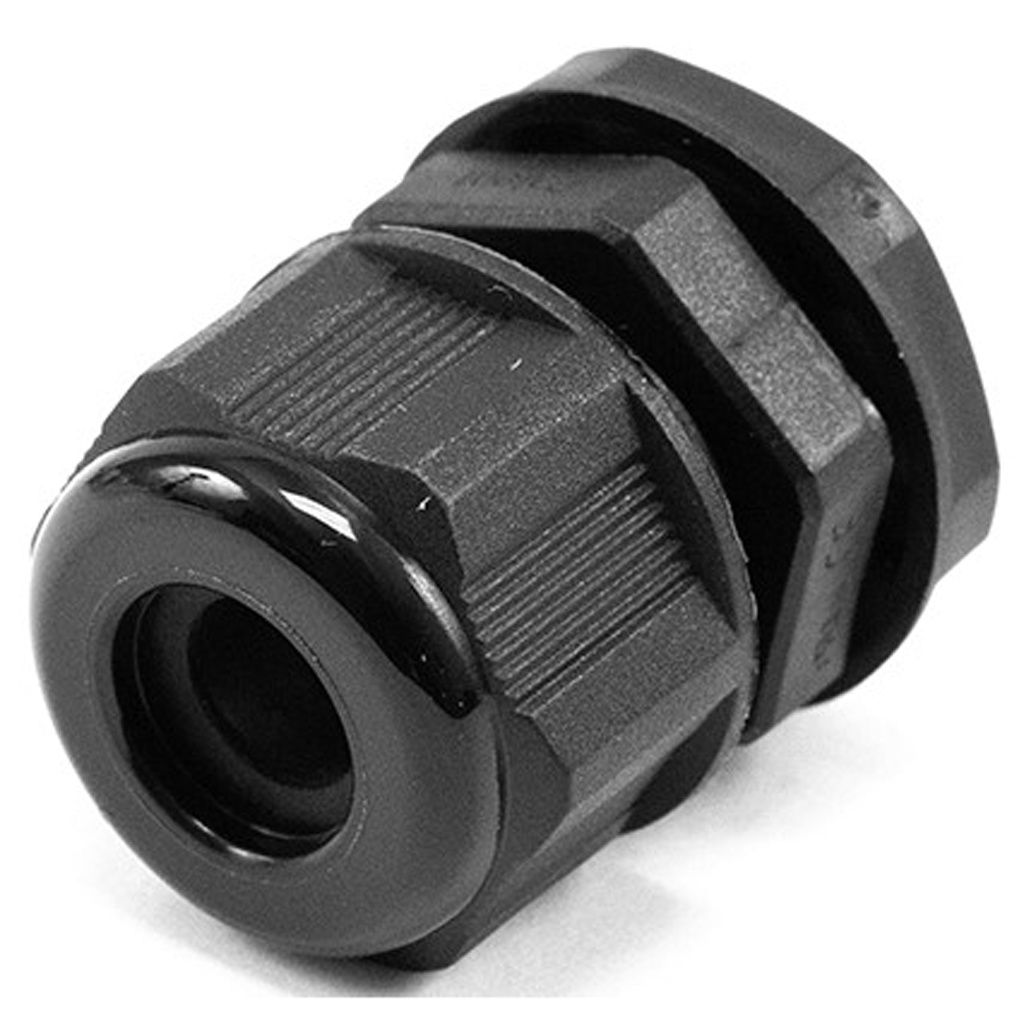

STRAIN RELIEF CORDGRIP PG11 19MM DIA 10MM WIRE NYLON BLK 33 LONG

• Liquid-tight cordgrip made from nylon
• Available in black (RAL 9005)

• Used where cable is entering or leaving an enclosure.
• Accepts a wide range of cable diameters due to large opening and NBR (nitrile rubber) seal.
• The strain relief elements tighten in a circular sequence on the sealing ring to give outstanding strain relief without twisting or damaging the cable.
• Use the cordgrip with the smallest maximum diameter that will fit your application (see table below).
• Nylon locknut and EPDM o-ring included (as shown).
• Operating Temperatures:
  • Static state: -40°C to 100°C (up to 120° instantaneous)
  • Dynamic state: -20°C to 80°C (up to 100° instantaneous)
• Designed to meet NEMA Type 4, 4X, 6, 6P, 12 & 13 - Protection to IP68.
• UL94-V2 flammability rating.
• UL listed.

Material Nylon

ColorBlack

Thread Size (D) PG11

Mounting Hole Dia 19mm

Wire Diameter Min. 5 mm Max.10 mm

Outer Length (L) 25 mm

Inner Length (T) 8mm

• Age

  0+

• Part No

  1427NCGPG11B

• Manufacturer

  HAMMOND MANUFACTURING LTD.

• Stock No

  KEHJ-1821

• SKU No

  255222
