TINYFPGA BX ICE40LP8K DEVELOPMENT BOARD - Soldering required

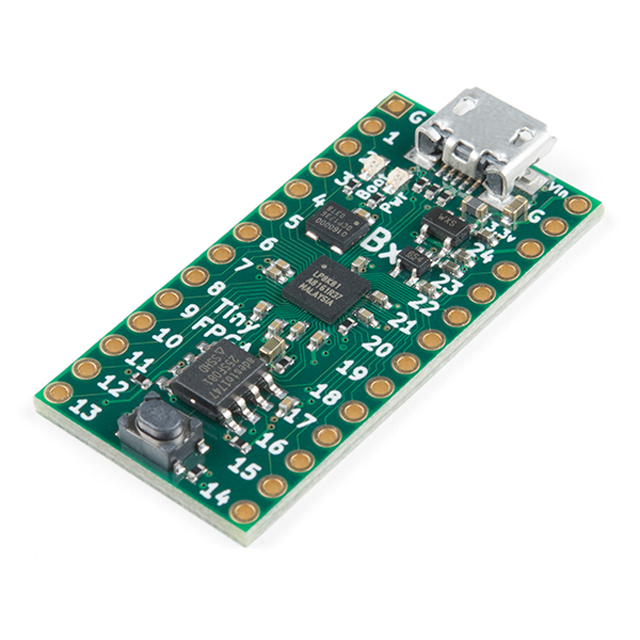

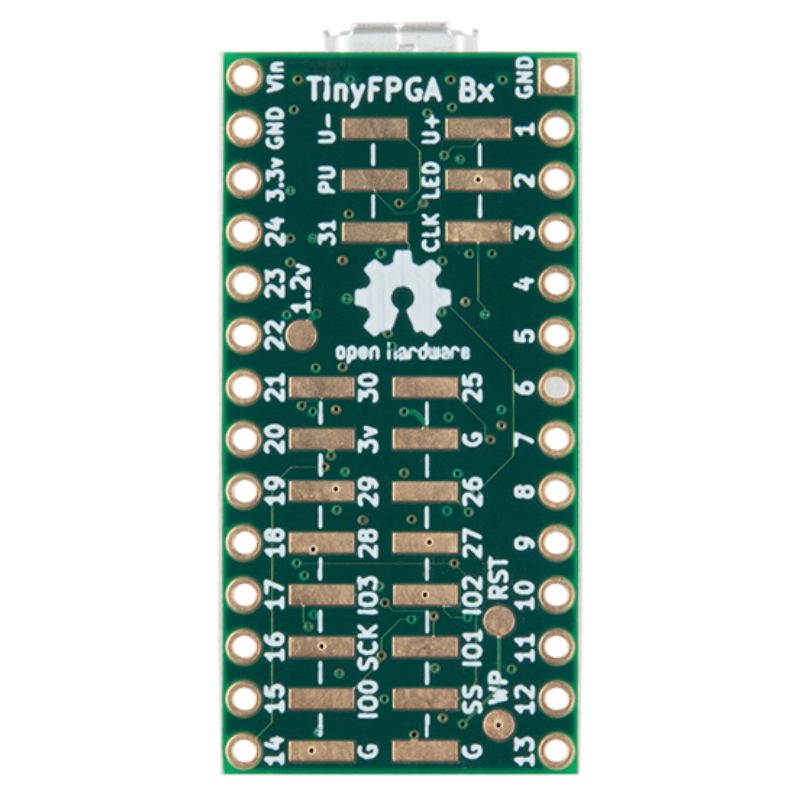

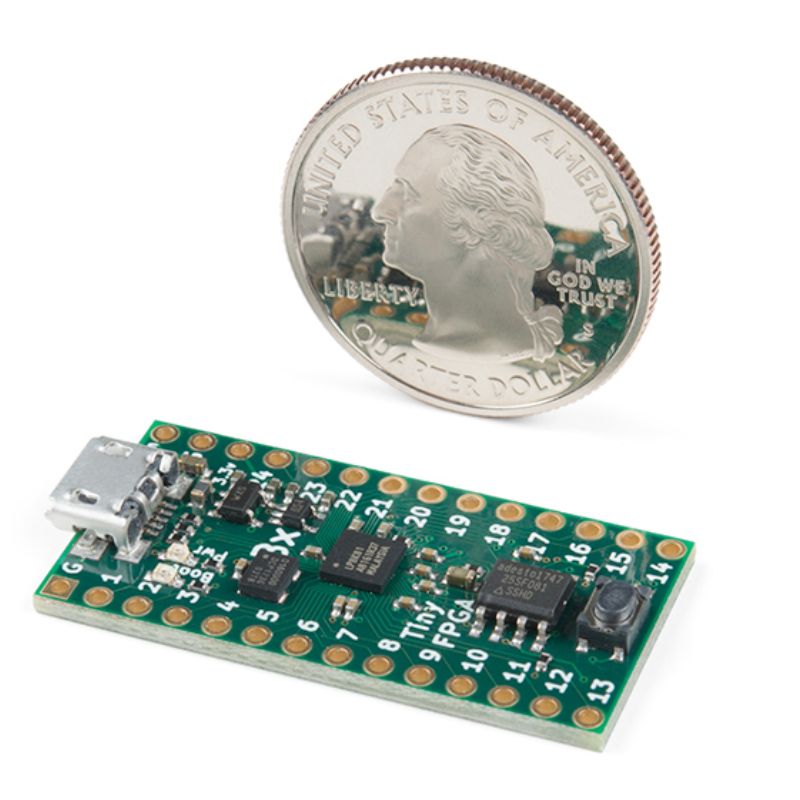

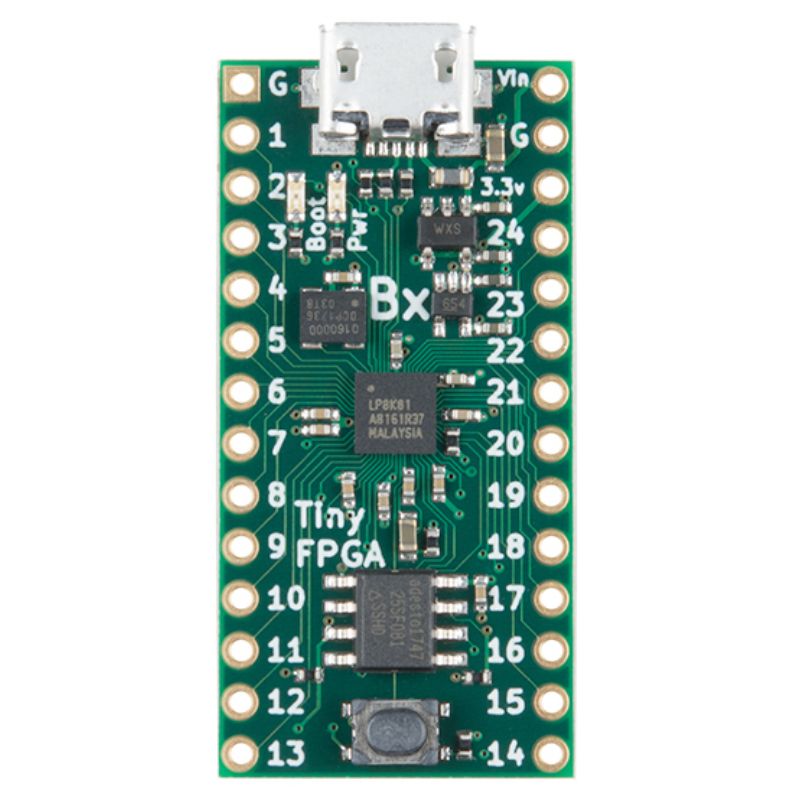

The TinyFPGA BX is a small FPGA module with all of the components and circuitry required for the FPGA to function taken care of for you. To develop for the board you create a design in your favorite digital design language (Verilog/VHDL, Migen, and Chisel are some popular options). Alternatively, you can use a schematic entry tool like IceStudio. A schematic entry tool allows you to graphically draw a digital circuit to be implemented on the FPGA. Once you have a design, you can program it onto the TinyFPGA BX module over USB. All the functions your design implements will now be able to interface with the outside world through the module's IO pins. Specifications Height: 1.4 inches, width: 0.7 inches Programming interface: USB 2.0 full-speed (12 mbit/sec) ICE40LP8K FPGA 7,680 four-input look-up-tables 128 KBit block RAM Phase Locked Loop 41 user IO pins 8 MBit of SPI Flash Onboard 3.3 V (300 mA) and 1.2 V (150 mA) LDO regulators Low-Power 16 MHz MEMs Oscillator 1.3 mA power when active 50 ppm stability. The TinyFPGA BX brings the power and flexibility of custom digital logic designs to the maker community. The BX module allows you to design and implement your own digital logic circuits in a tiny form-factor perfect for breadboards, small spaces, or custom PCBs. This incredible power allows you to do things that are not possible with traditional microcontrollers. While microcontroller boards have a fixed set of peripheral devices on-board, the TinyFPGA BX modules can implement the exact peripheral devices needed to get the job done. It's not software bit-banging, it's the real deal implemented in digital logic. When the next project has different requirements, reprogram the TinyFPGA BX with a new design suited to the task. The full potential of programmable logic devices allows for even more ambitious projects than custom microcontroller peripherals: augment a retro-computer with new capabilities, recreate an 8-bit computer from history, or design your own.

---

• Age

  12+

• Part No

  TINYFPGA BX MODULE

• Manufacturer

• Stock No

  1825-MB1

• SKU No

  257756

Limited Stock Available To purchase, Please contact our Sales Department
(+1-416-494-8999) or email shop@sayal.com
