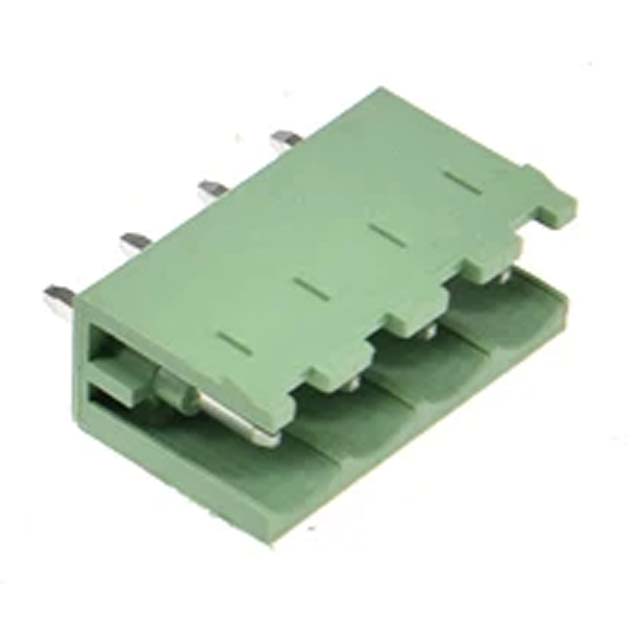

Pitch 5.08mm
4 position
Screw M2.5 steel Zinc Plated
Wire Guard Phosphor bronze NI Plated
Contacts Brass Tin Plated
Housing PA66 UL94V-0
Electrical:
Rated IEC 15A UL 10A @ 300V
Withstanding Voltage 2500v/min
Wire Range 28-12AWG
Mechanical;
Temperature Range -40 to +105 degree C
Max soldering +150C for 5 Sec
Torque 0.4NM (3.5lb.in)
Strip Length 7-8mm
THIS PARTS MATES WITH GTRA-4354BB
*Prices subject to change without notice. We reserve the right to limit quantities.
-
Age
0+
-
Part No
EX2EDGV-5.08-4P
-
Manufacturer
-
Stock No
GTSA-4312
-
SKU No
261865
To purchase bulk quantities, Please contact our Sales Department
(+1-416-494-8999) or email shop@sayal.com
