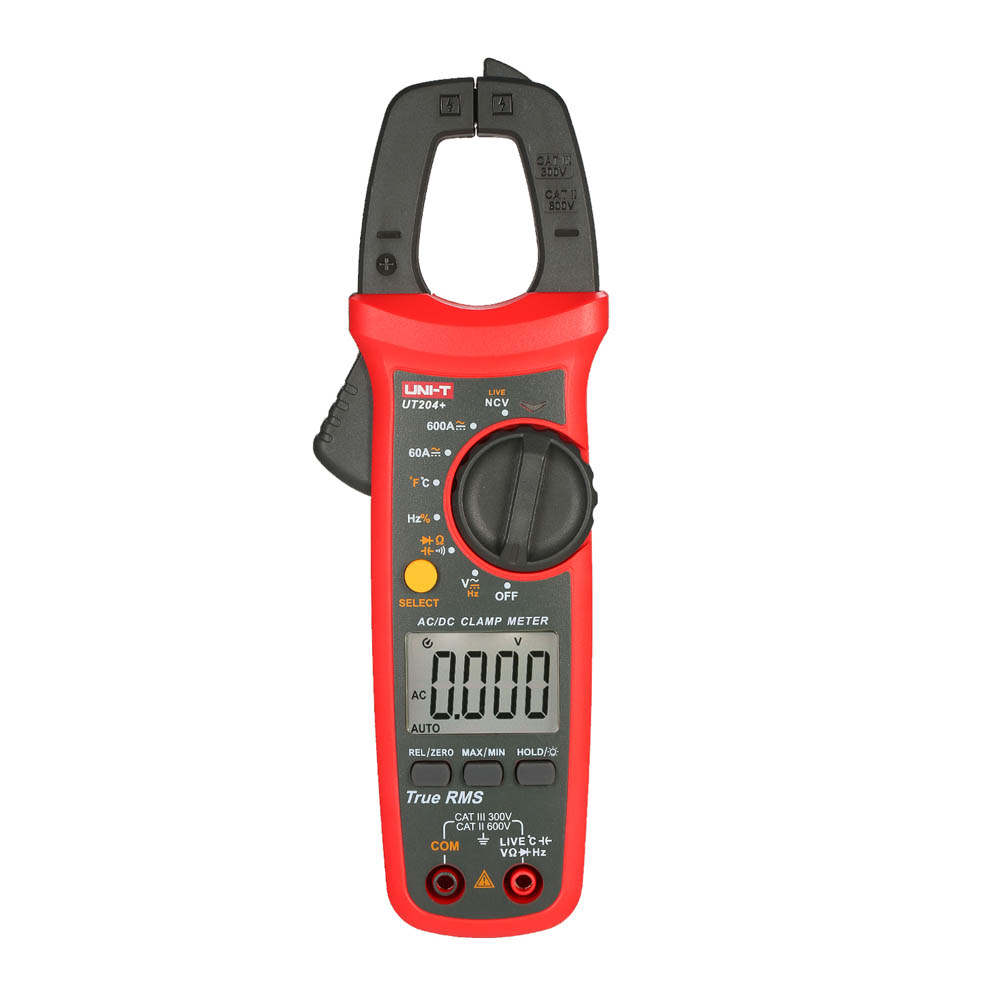

MULTIMETER DIGITAL CLAMP AC/DC 600A 600V 60M 60mF -40 TO 1000C

Part#:UT204+ Stock#: MJY-UT204PLUS SKU: 262217

$79.95 CAD

Availability: 25 in stock

View all UNI-TREND TECHNOLOGY LTD. items

Stock and Aisle Location

#	Store	Qty	Aisle
	Burlington	3
	Cambridge	2
	Markham	6
	Mississauga	6
	Scarborough	4
	Vaughan	3
	Warehouse	1

Multifunctional Clamp Meter: can be used to measure AC/DC current, AC/DC voltage, resistance, capacitance, frequency, duty cycle, relative value, Max/Min value, temperature, LIVE test, continuity test, and diode test.
Measuring : 600A AC/DC current, 600V AC/DC voltage, 60MΩ resistance, 60mF capacitance, 10Hz~10MHz frequency, 0.1%~99% duty cycle, and -40~1000℃ temperature.
Data Hold: hold the measured data for conveniently checking or observing data.
Backlight Function: 1.6-inch LCD screen with backlight ON/OFF switchable for display data clearly.
28mm Jaw Opening: jaw opening of 28mm to measure current without touching or interrupting the circuit.
Accessories: comes with a pair of test probes for convenient measurement, and a black zipper pouch for storing the clamp meter.
Power Supply: powered by 2*1.5V AAA battery (NOT included), convenient to operate.
Reliable & Functional: with good reliability and high , really practical for electrical equipment testing and maintenance.

Specifications:

Material: ABS
Safety Rating: CAT II 600V, CAT III 300V
Display Count: Max. 6000
Jaw Opening: 28mm
Auto off: 15 minutes
: Auto
AC Current : 60.00A/600.0A
AC Current Resolution: 0.01A/0.1A
DC Current : 60.00A/600.0A
DC Current Resolution: 0.01A/0.1A
AC Voltage : 6.000V/60.00V/600.0V
AC Voltage Resolution: 0.001V/0.01V/0.1V
AC Voltage Frequency: 10Hz~60kHz
AC Voltage Frequency Resolution: 0.01Hz~0.01kHz
DC Voltage : 600.0mV/6.000V/60.00V/600.0V
DC Voltage Resolution: 0.1mV/0.001V/0.01V/0.1V
Resistance : 600.0Ω/6.000kΩ/60.00kΩ/600.0kΩ/6.000MΩ/60.00MΩ
Resistance Resolution: 0.1Ω/0.001kΩ/0.01kΩ/0.1kΩ/0.001MΩ/0.01MΩ
Capacitance : 60.00nF/600.0nF/6.000uF/60.00uF/600.0uF/6.000mF/60.00mF
Capacitance Resolution: 0.01nF/0.1nF/0.001uF/0.01uF/0.1uF/0.001mF/0.01mF
Temperature : -40~40℃/40~500℃/500~1000℃ (-40~104℉/104~932℉/932~1832℉)
