Type "K" Thermocouple Input
Switchable Resolution 0.1° / 1°
With℃& ℉ switching
Max / MIN Function
Data Hold Function
Room Temperature Compensated
T1 & T2 dual points display
T1 - T2 differential measurement
Flip-up stand
Backlight LCD displayModel

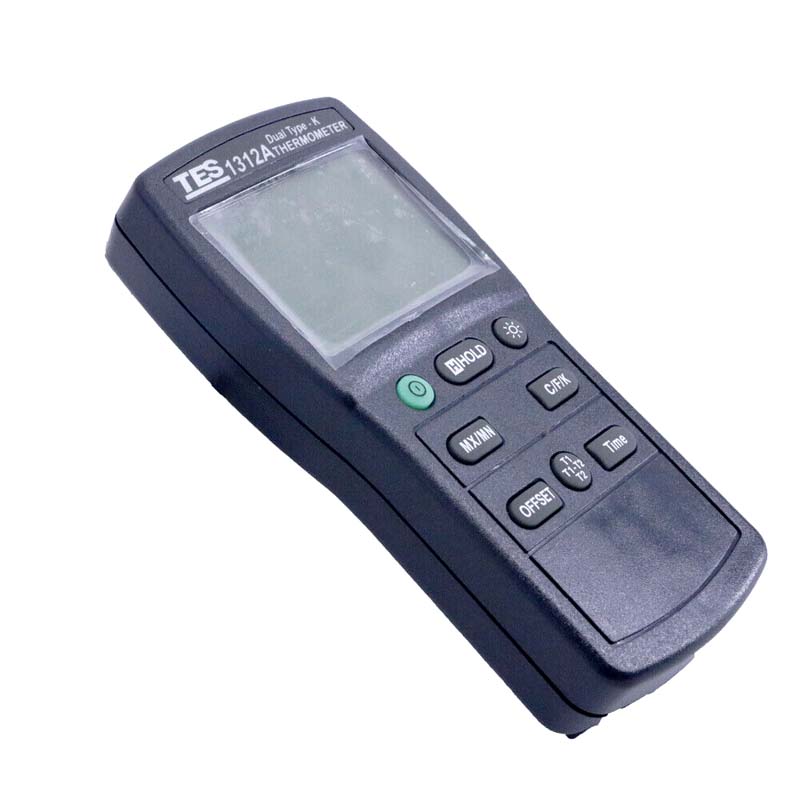

TES-1312A
Measuring Rang - 50 ºC ~ 1350 ºC, - 58 ºF ~ 1999 ºF
Sensor
K Type Thermocouple
Input
Dual Channel (TES-1312A)
Resolution
- 50 ºC ~ 199.9 ºC.....0.1 ºC,
- 50 ºF ~ 199.9 ºF.....0.1 ºF
Accuracy
TES-1312A :
- 50 ºC ~ 1000 ºC... +/- (0.3%rdg + 1 ºC)
- 50 ºF ~ 1832 ºF... +/- (0.3%rdg + 2 ºF)
1000 ºC ~ 1300 ºC... +/- (0.5%rdg + 1 ºC)
1832 ºF ~ 1999 ºF... +/- (0.5%rdg + 2 ºF)
Temperature Coefficient
Less that 0.1 times the applicable accuracy
specification per ºC (ºF)
Input Protection
60V DC or 24 Vrms AC maximum input voltage on
any Combination of input Connector
Sampling Rate
2.5 times/sec
Operating / Storage Conditions
0 ºC ~ 40 ºC < 80%RH , -10 ºC ~ 60 ºC < 70%RH
Power Source
6 pcs AAA size Battery
Size
135 mm(L) x 72 mm(W) x 31 mm(H)
Weight
235g
Accessories
Battery, Instruction, Manual
-
Part No
TES 1312A
-
Manufacturer
TES
-
Stock No
MEW-650
-
SKU No
263665
