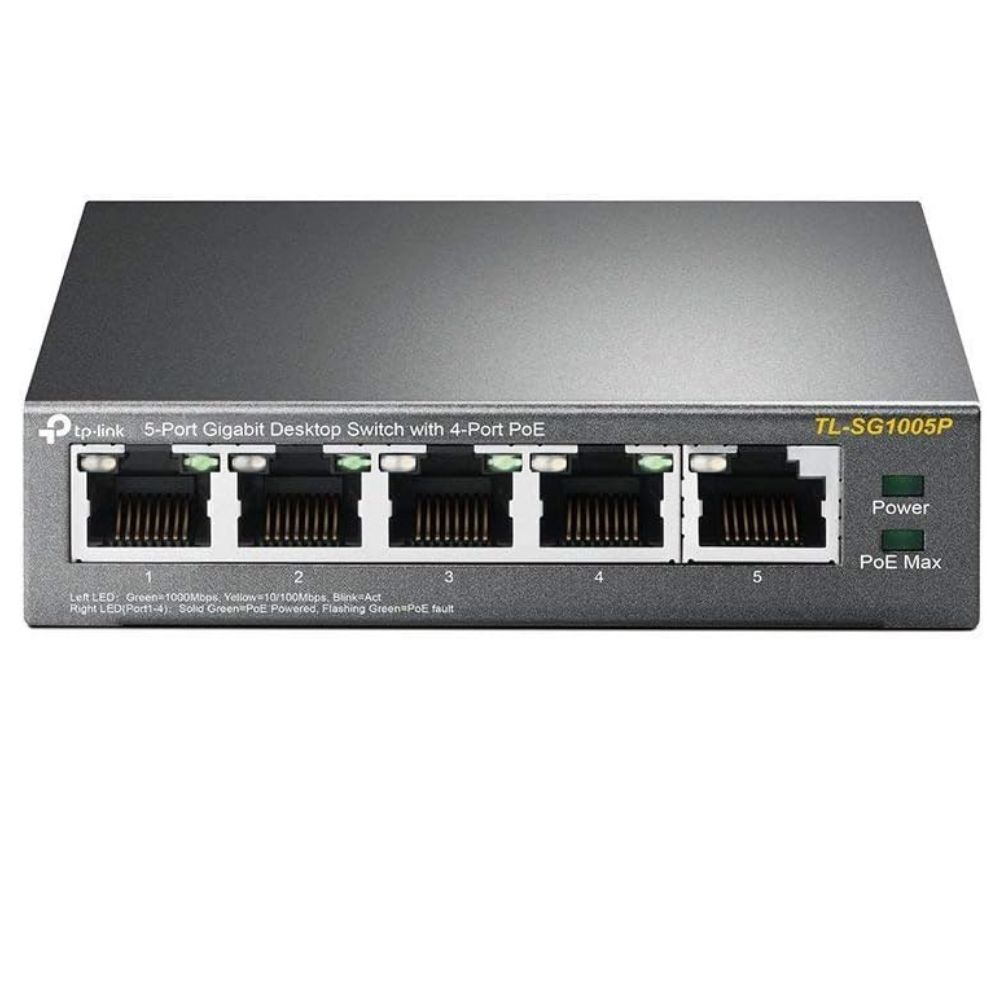

TP-link SG1005P 5-Port Gigabit Desktop Switch with 4-Port PoE
Flexible Full Gigabit 5-Port PoE Configuration: 4x PoE+ (802.3at/af) 10/100/1000 Mbps RJ45 ports providing up to 30W per port and total PoE power budget of 65W, together w/ 1x Gigabit Non-PoE Port for high-speed connections.
Plug-and-play, simple set up with no software or configuration needed
Advanced Software Features: Prioritize your traffic and guarantee high quality of video or voice data transmission with Port-based 802.1p/DSCP QoS and IGMP Snooping.
Sturdy Metal Case: Durable metal casing and desktop/wall-mounting design are well-suited for different environments.
Reliable and Quiet: IEEE 802.3X flow control provides reliable data transfer and Fan-less design ensures quiet operation.
Interfaces 4 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) PoE+
Inputs/Outputs 1 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45)
Protocols Auto-MDIX/MDI
IGMP Snooping
Supported Protocols Port Mirroring
Transmission Method Store-and-Forward
Jumbo Frames Support 16,000 Bytes
MAC Address Table Size 2K
VLAN Groups 32
Security Features Storm Control
Standards Supported IEEE Standards
802.1p, 802.3ab, 802.3af, 802.3at, 802.3i, 802.3p, 802.3q, 802.3u, 802.3x
Performance
Forwarding Rate 7.44 Mpps
Switching Bandwidth 10 Gb/s
Priority Queues 4
Packet Buffer 1.5 Mb
Electrical
Power Draw 74.2 W (Max)
DC Input Power 53.5 VDC at 1.31 A
AC Input Power 100 to 240 VAC, 50 / 60 Hz
PoE Power Budget 65 W
PoE per Port 30 W
Power Supply Type External
*Prices subject to change without notice. We reserve the right to limit quantities.
-
Age
0+
-
Part No
TL-SG1005P
-
Manufacturer
TP-LINK
-
Stock No
AGW-304
-
SKU No
268558
To purchase bulk quantities, Please contact our Sales Department
(+1-416-494-8999) or email shop@sayal.com
