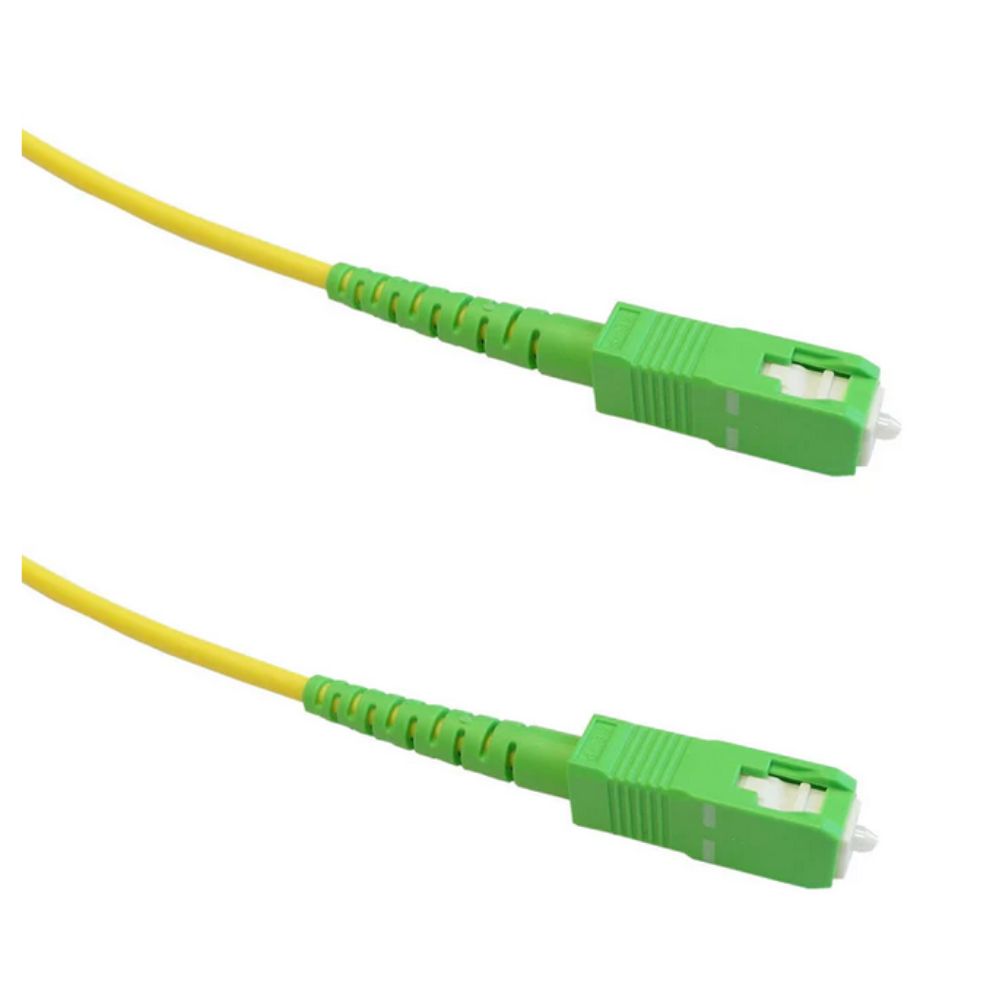

OS2 Singlemode Simplex SC/APC to SC/APC 9 Micron - Fiber Optic Patch Cable - 3mm Jacket - LSZH/OFNR - 3m
These 9 micron (OS2) fiber optic cable is made with Corning ClearCurve LBL glass fiber, which exceeds ITU-T G.657.A2/B2 and remains compatible and fully compliant with ITU-T G.652.D. It has 3mm jacket and rated low smoke zero halogen (LSZH) & riser (OFNR). They are tested to provide the optimum data transmission and network stability. They are used for connections to data center, CATV, fiber test equipment, LAN, telecommunication networks, FTTx, communication rooms and fiber optic communication system.
Physical Characteristics
Color Yellow
Cable Diameter 3mm
Fiber Size 9/125 micron
Fiber Type Singlemode
Glass Manufacturer Corning Glass (ClearCurve LBL)
Connector Ferrules Ceramic
Fiber Classification OS2
Jacket Rating Riser (OFNR) & Low Smoke Zero Halogen (LSZH)
Operating Temperature -10°C ~ +70°C
Connector(s)
Connector A SC/APC Simplex Male
Connector B SC/APC Simplex Male
Performance
Insertion Loss <0.3db @ 1550nm
Return Loss ≥55db
Speed 10 Gbps
Environmental
RoHS Yes
Conflict Minerals Yes
-
Part No
FO-604-10-SCA2
-
Manufacturer
-
Stock No
APQA-1103
-
SKU No
270018
