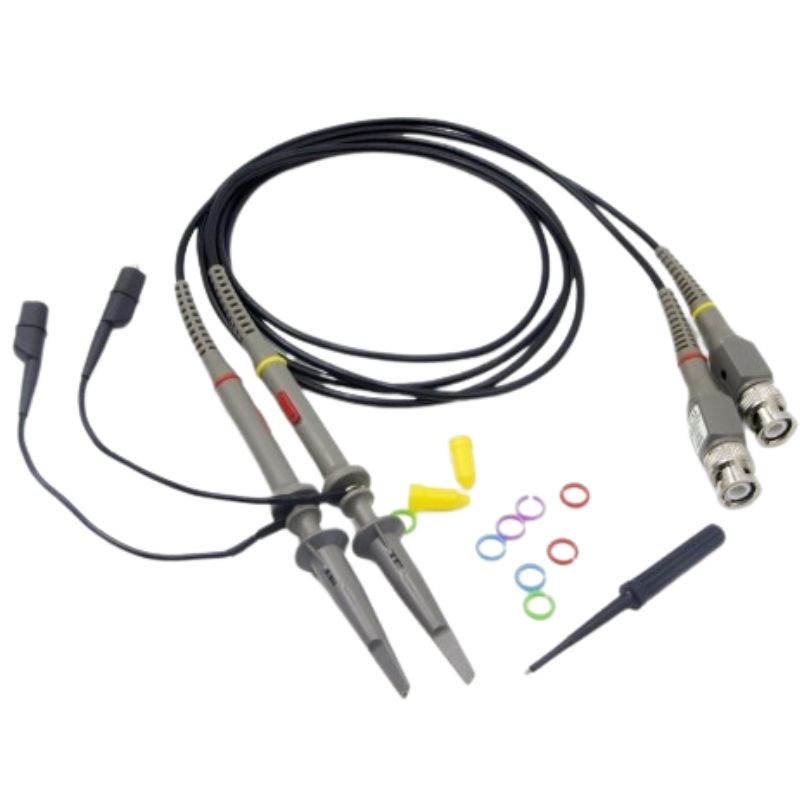

100MHz Oscilloscope Probes 2-Pack
These passive high impedance probes are designed and calibrated for use on any oscilloscope that has an input impedance of 1M and whose input capacity is within the compensation range.
Note: The ground spring specified in the manual is not included, it is included only for high voltage probes
Features:
Attenuation ratio: x1 and x10
Bandwidth: 6MHz (x1) and 100MHz (x10)
Input resistance: 1M (x1) and 10M (x10)
Input capacitance: 90pF (x1) and 18pF (x10)
Compensation range: 10-35pF (x10)
Rise time: 58ns (x1) and 3.5ns (x10)
Working voltage: 300Vp-p (x1) and 600Vp-p (x10)
Operating temperature range: -14°F to +122°C (-10°C to +50°C)
Length: 4 feet
Bandwidth 100 MHz
Resistance 1M Ohm, 10M Ohm
Capacitance 90 pF(1X), 18 pF(10X)
Length 48 in.
Voltage Rating 600 V
Attenuation Ratio 10:1, 1:1
Product Type Test Probe
*Prices subject to change without notice. We reserve the right to limit quantities.
-
Part No
P6100
-
Manufacturer
-
Stock No
GBM-257
-
SKU No
270532
