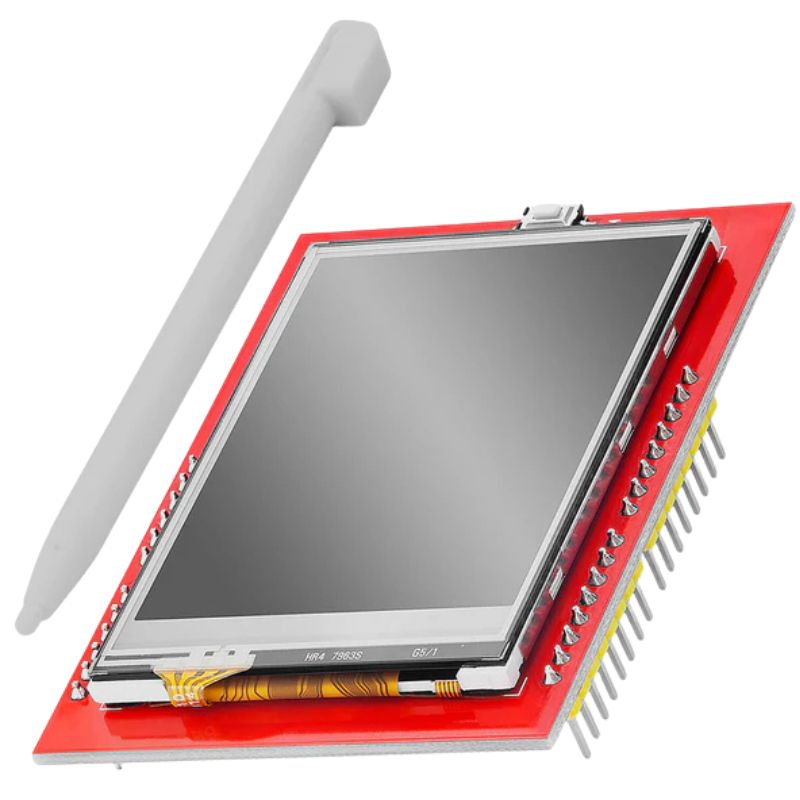

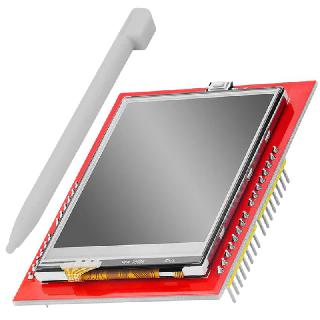

This 2.4 inch tft lcd shield is resistive touch, not capacitive touch.
-The 2.4 inch display can be directly plug into u no and 2560.
-Wiring with STC12 board: 5V-5V, 3V3-3V3, GND-GND, LCD_D0-P20, LCD_D1-P21, LCD_D2-P22, LCD_D3-P23, LCD_D4-P24, LCD_D5-P25, LCD_D6-P26, LCD_D7-P27, LCD_RST-P33, LCD_CS-P13, LCD_RS-P12, LCD_WR-P11, LCD_RD-P10, no need to connect SD_SS, SD_DI, SD_DO, SD_SCK.
-You will receive 1pcs 2.4 inch tft lcd display with touch pen, other accessories excluded.
-
Part No
ARDTS-156315
-
Manufacturer
-
Stock No
1813-KB3
-
SKU No
270574
