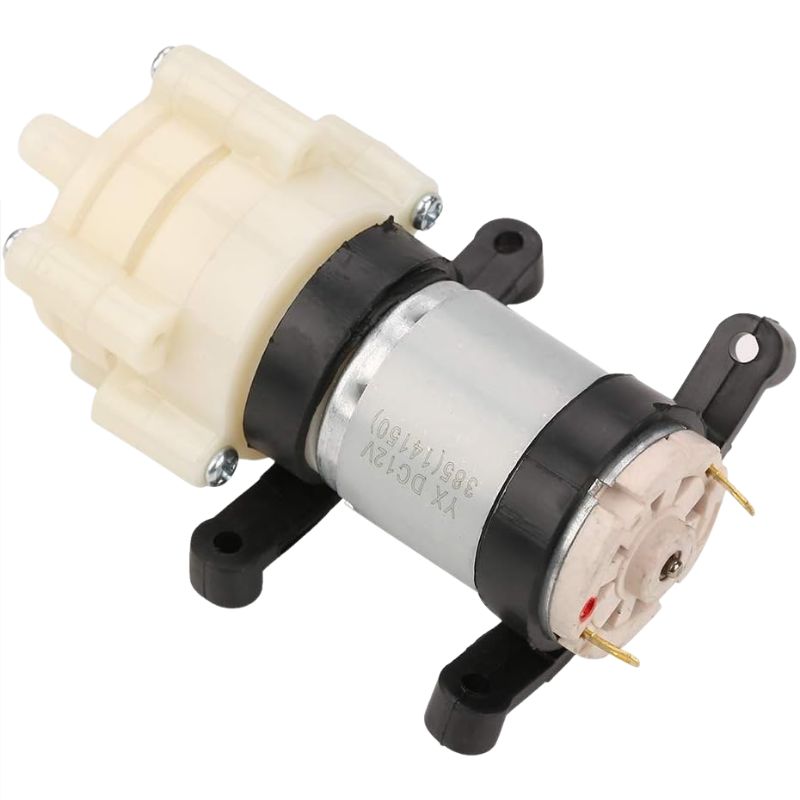

This is a R385 DC diaphragm pump, it could be use on a kettle, stove, water dispenser and other tea products, but it was modified to enhance its performance, modified a fixed bracket, and the worklife get greatly improved, even can be achieved 2000 hours. Now it‘s become more useful and can be used in experimental models, regular watering, water-cooled notebook and other occasions.
Pump Size: 90 mm * 40 mm * 35 mm
Outlet diameter: inside diameter of 6 mm, an outer diameter of 8.5 mm
Working voltage: DC12V, current work: 0.5-0.7A (6W power must achieve above)
Traffic: 1.5-2L / Min (left and right), the maximum suction lift: 2 m
Head: Vertical up to 3 meters
Work life: up to 2500H
Withstand water temperature: up to 80 ℃
*Prices subject to change without notice. We reserve the right to limit quantities.
-
Part No
385-14150
-
Manufacturer
-
Stock No
2672-AD1
-
SKU No
270849
To purchase bulk quantities, Please contact our Sales Department
(+1-416-494-8999) or email shop@sayal.com
