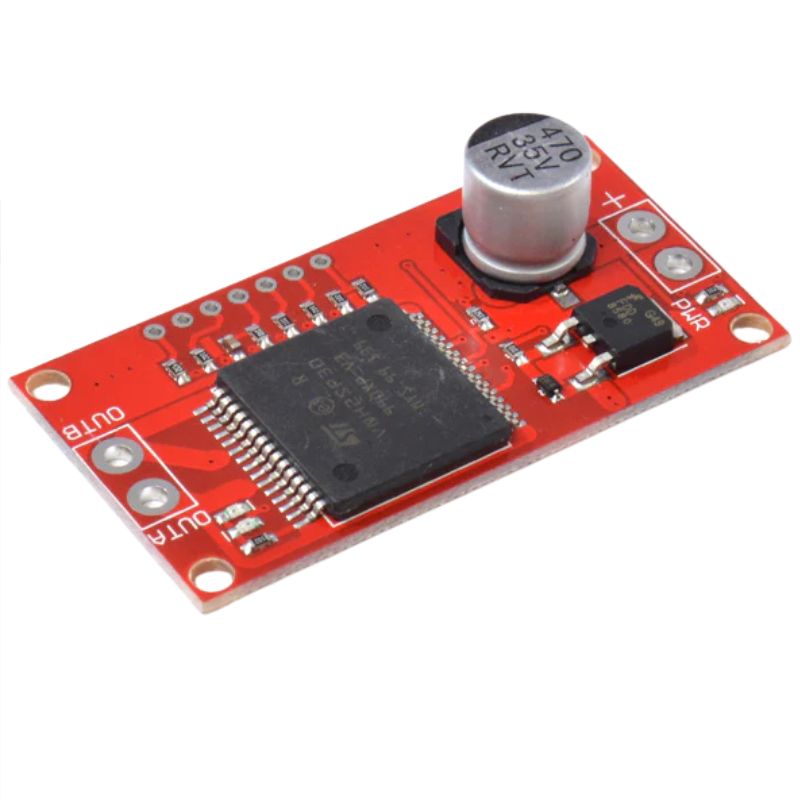

The 30A Mini VNH2SP30 Stepper Motor Driver Module is a powerful and compact solution for driving high-current motors with Arduino or other microcontroller platforms. It offers 30A peak and 14A continuous current handling, making it ideal for high-power applications. With built-in protection features, it ensures reliable performance and safety in various DIY and robotics projects.Operating Voltage: 12-16V DC
Peak Current: 30A
Continuous Current: 14A
Channels: 1
Over-Current Protection: Yes
Thermal Protection: Yes
LED Indicator: Yes
Cooling Fan: No
Arduino Shield: No, can be connected via wires
Dimensions: 55 x 28 x 12 mm
Weight: 15g
Max PWM Frequency: 20 kHz
-
Part No
PROMR-008704
-
Manufacturer
-
Stock No
1814-LA9
-
SKU No
271012
