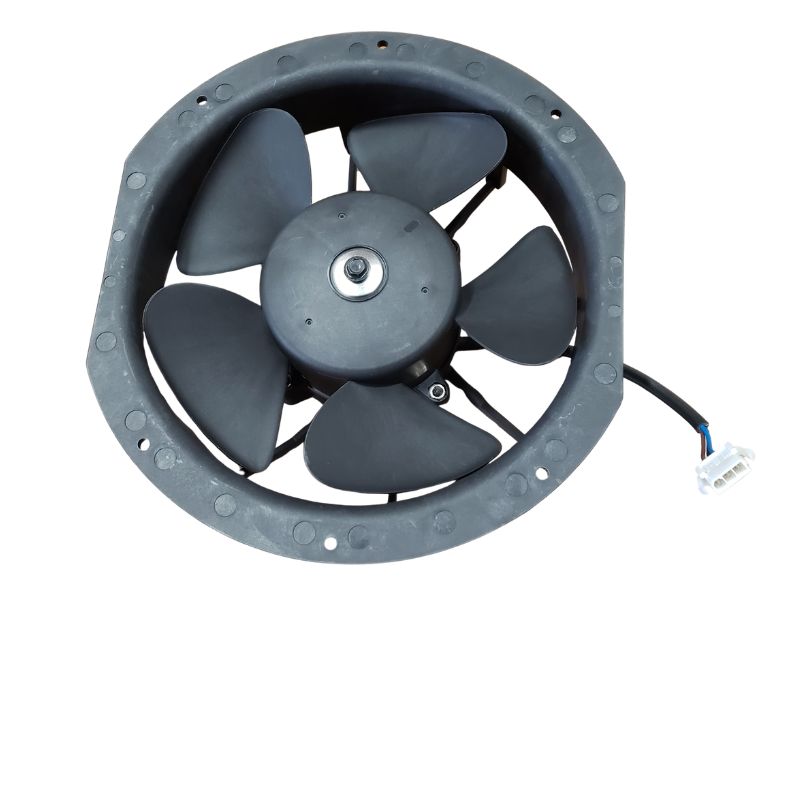

The Delta Electronics AFL2212LW-00 is a low-profile, variable-speed brushless axial fan designed for commercial refrigeration, appliance ventilation and equipment-cooling applications. It operates from a 12V DC supply and provides efficient airflow with PWM speed control, ball bearings and an IP56-rated enclosure.
Fan Tubeaxial 12VDC Rectangular/Rounded - 203mm L x 195mm H Ball 170.1 CFM (4.76m³/min) 3 Wire Leads
Specifications
Manufacturer: Delta Electronics
Model/part number: AFL2212LW-00
Product type: EC brushless axial cooling fan
Rated voltage: 12V DC
Rated current: 0.6A—based on AFL2212LW-00-labelled units
Speed range: 600–1400 RPM
Maximum airflow: Up to 170.1 CFM
Maximum power: Approximately 7.2W based on 12V × 0.6A
Fan diameter: Approximately 222 mm
Depth: Approximately 80 mm
Bearing type: Ball bearing
Speed control: PWM
Connection: Wire leads
Ingress protection: IP56
Operating temperature: −40°C to +60°C
Frame material: Plastic
Impeller material: Plastic
Typical applications: Commercial refrigeration, refrigerator airflow, ventilation and equipment cooling
Short description
Delta AFL2212LW-00 variable-speed 12V DC brushless axial fan featuring PWM control, ball bearings, 600–1400 RPM operation and an IP56-rated housing.
-
Part No
AFL2212LW-00
-
Manufacturer
Delta Electronics Inc.
-
Stock No
JTGB-7763
-
SKU No
275357
