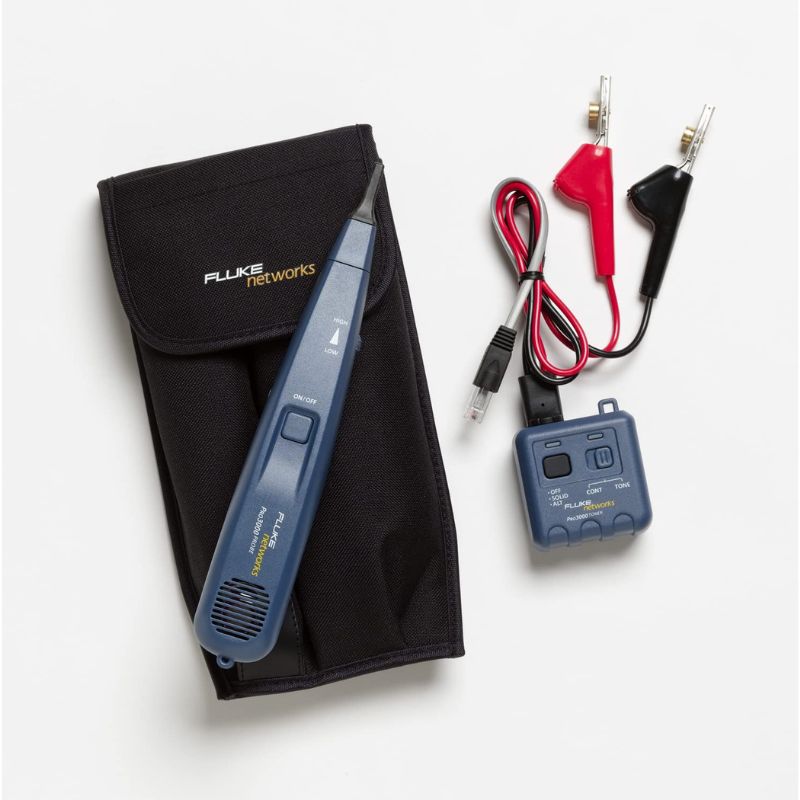

CABLE TRACER KIT AMPLIFIER PROBE & TONE GENERATOR
Part No: 26000900
Manufacturer: FLUKE
Stock No: MTE-381
SKU No: 237586
.jpg)
(1).jpg)
(2).jpg)
(3).jpg)
(4).jpg)
Image is for illustrative purposes only. Please refer to product description.
$211.95 CAD
Stock may not be available at all store locations. Inventory quantites can change without notice.
| Burlington | 1 | |
| Cambridge | 1 | |
| Markham | 2 | |
| Mississauga | 1 | |
| Scarborough | 2 | |
| Vaughan | 2 |
Signal Interference can be caused by multiple sources (I.e. power cables, fans,lighting, etc.) and can make tracing communication cabling almost impossible.The Pro3000F probe utilizes innovative filter technology to obstruct signal interference to make tracing your cable easier, regardless of the work environment.

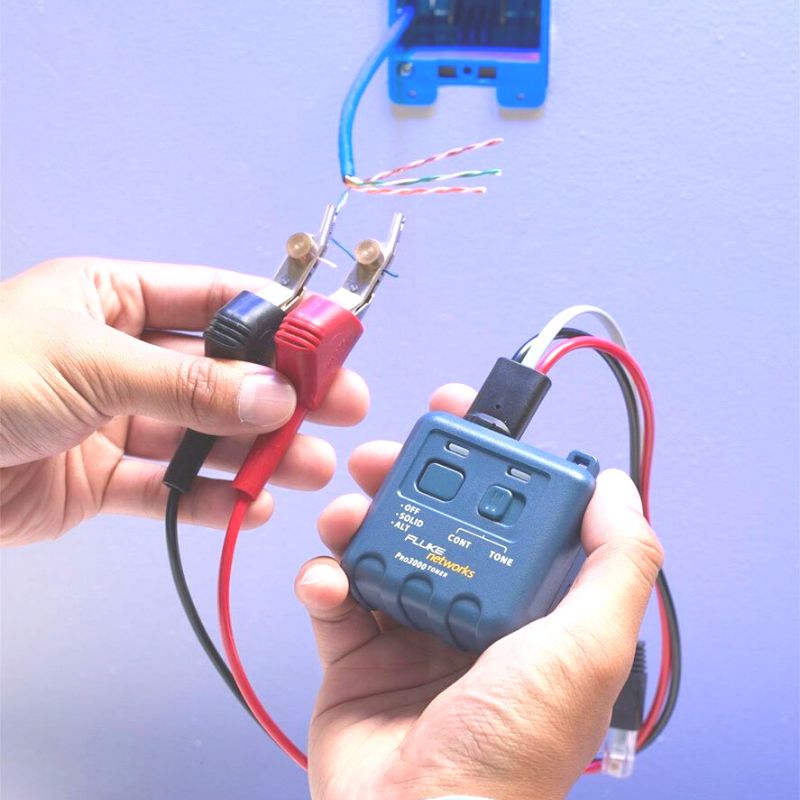

Pro3000 Analog Tone Generator and SmartTone™
Use the SmartTone™ capability of the Pro3000 Tone Generator to identify the right pair. Simply
short the selected pair at the near or far end to change the cadence of the tone generated. The
tone change you hear through the probe can help you identify the correct wire pair. SmartTone™
Tone Generator features:
SmartTone™
Send tone signal up to 10 miles on most cables

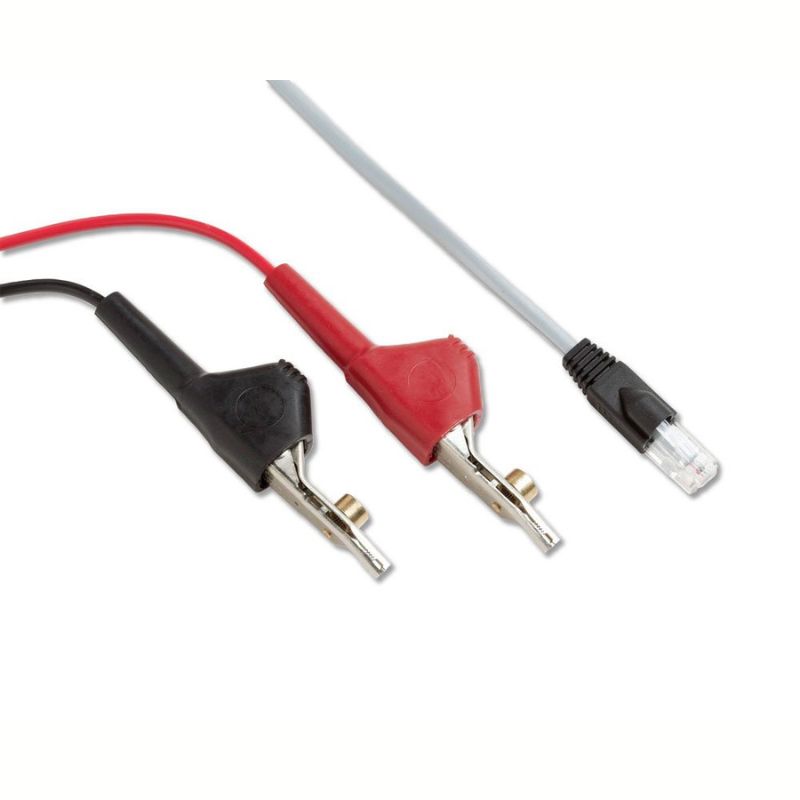

Line cord features angled bed-of-nails clips and a rugged RJ-11 plug for direct access to
phone and data jacks without adapters
External switch allows selection of solid or alternating tone options, indicated with solid or
flashing LEDs
Continuity Testing
Line polarity confirmation

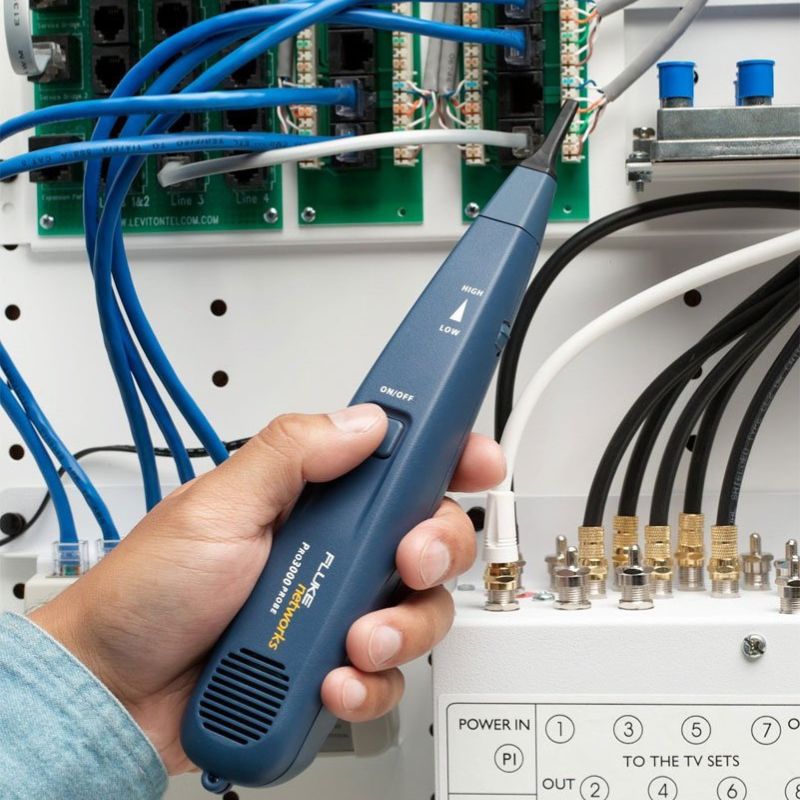

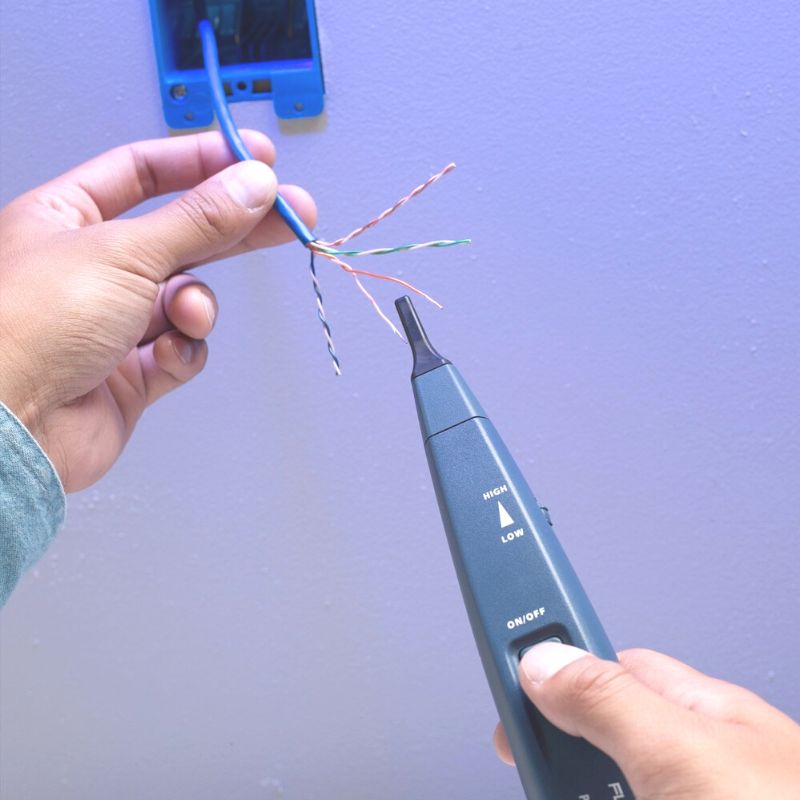

Pro3000 Unfiltered Probe
For technicians that do not require a filtered probe, there is the original Pro3000 Probe. The
ergonomic sleek design is easy to handle and use. Like the Pro3000F Filtered probe, the
Pro3000 Unfiltered Probe features a loud speaker to hear tone clearly through walls, enclosures
and in loud environments. The recessed on/off button helps prevent the probe from accidently
being turned on when stored
ON/OFF pushbutton (Hold to activate, release to turn off)
Volume dial
Replaceable tip
3.5 mm earphone jack
Battery 9V alkaline
Temperature Operating: -20° C to 60° C, Storage: -40° to 70° C
Dimensions 9.8 in. x 1.6 in. x 1.3 in. (24.9 cm x 4.1 cm x 3
The Pro3000 Tone Generator allows for direct connection to un-terminated wire using the angle bed of nails clips or terminated RJ-type jacks with the male RJ-11 plug. The tone generators strong tone and SmartTone™
Use the SmartTone™ capability of the Pro3000 Tone Generator to identify the right pair. Simply
short the selected pair at the near or far end to change the cadence of the tone generated. The
tone change you hear through the probe can help you identify the correct wire pair. SmartTone™
provides five distinct tones for exact pair identification.
SmartTone™
Send tone signal up to 10 miles on most cables
Line cord features angled bed-of-nails clips and a rugged RJ-11 plug for direct access to
phone and data jacks without adapters
External switch allows selection of solid or alternating tone options, indicated with solid or
flashing LEDs
Continuity Testing
Line polarity confirmation
Pro3000 Unfiltered Probe
For technicians that do not require a filtered probe, there is the original Pro3000 Probe. The
ergonomic sleek design is easy to handle and use. Like the Pro3000F Filtered probe, the
Pro3000 Unfiltered Probe features a loud speaker to hear tone clearly through walls, enclosures
and in loud environments. The recessed on/off button helps prevent the probe from accidently
being turned on when stored
Pro3000 Analog Unfiltered Probe Specifications
User InterfaceON/OFF pushbutton (Hold to activate, release to turn off)
Volume dial
Replaceable tip
3.5 mm earphone jack
Battery 9V alkaline
Temperature Operating: -20° C to 60° C, Storage: -40° to 70° C
Dimensions 9.8 in. x 1.6 in. x 1.3 in. (24.9 cm x 4.1 cm x 3
