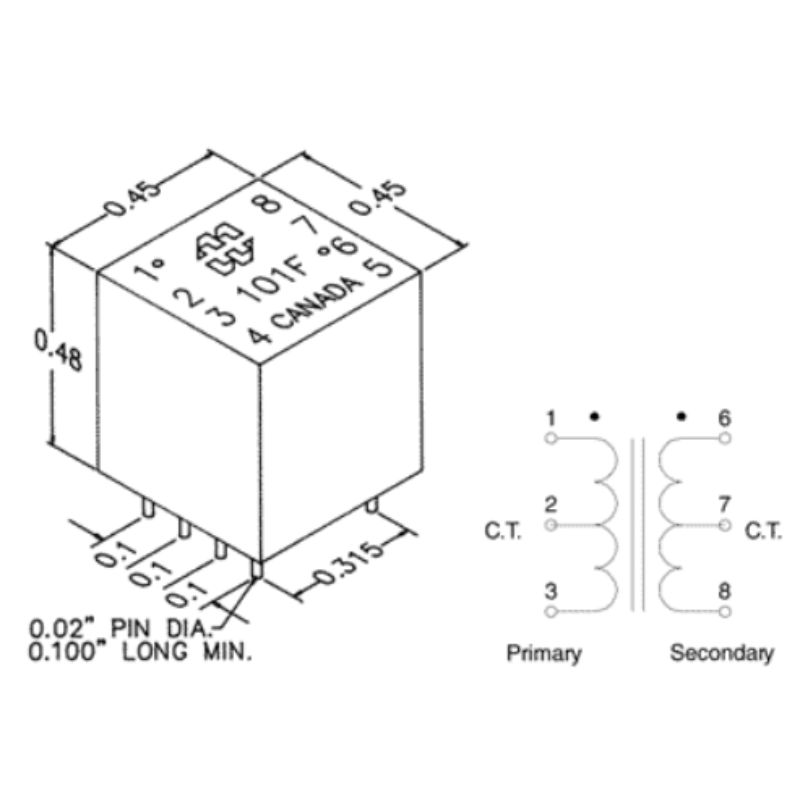

TXFR AUDIO 600RCT/600RCT EPOXY 6PINS - 101F

TXFR AUDIO 600RCT/600RCT EPOXY 6PINS

Part No: 101F

Manufacturer: HAMMOND MANUFACTURING LTD.

Stock No: JRSE-6702-1

SKU No: 193105

Image is for illustrative purposes only. Please refer to product description.

$30.95 CAD

Stock may not be available at all store locations. Inventory quantites can change without notice.

Features

Pin type, miniature size, P.C. board mount, net weight of only 0.1 oz.
Rugged potted construction produces a completely sealed unit withstanding severe
environmental conditions.
Secondary may be used as primary and primary as secondary.
Power level: Minimum frequency range: 300 Hz. to 100 Khz. +/- 0.5 db @ 100 mw
Frequency range @ +10 dbm is 200 Hz. to 100 Khz. +/- 0.5 db
Frequency range @ +15 dbm is 200 Hz. to 100 Khz. +/- 0.5 db
Frequency range @ +20 dbm is 300 Hz. to 100 Khz. +/- 0.5 db
Frequency measurements with no D.C. current saturation.
