Part No: CK205
Manufacturer: CANA KIT
Stock No: 2521-AF1
SKU No:205947
Stock Number: 2521-AF1    $22.95

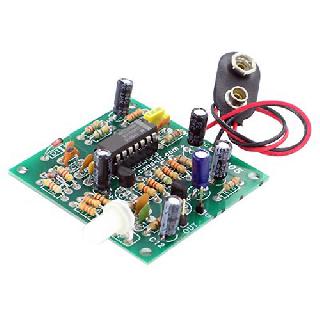

Image is for illustrative purposes only. Please refer to product description.

ea. CAD
This small circuit will produce a sine wave with a frequency of about 1KHz, ideal for testing electronic audio circuits. The circuit is based on a Wien-Bridge Oscillator which provides a sinusoidal output. It can be modified in order to produce other output frequencies such as 50 or 60 Hz by simply replacing two resistors.
Supply voltage: 9V battery (not included) Output frequency: approximately 1KHz Output level: adjustable from 0 - 3V peak to peak Current consumption: < 10mA
