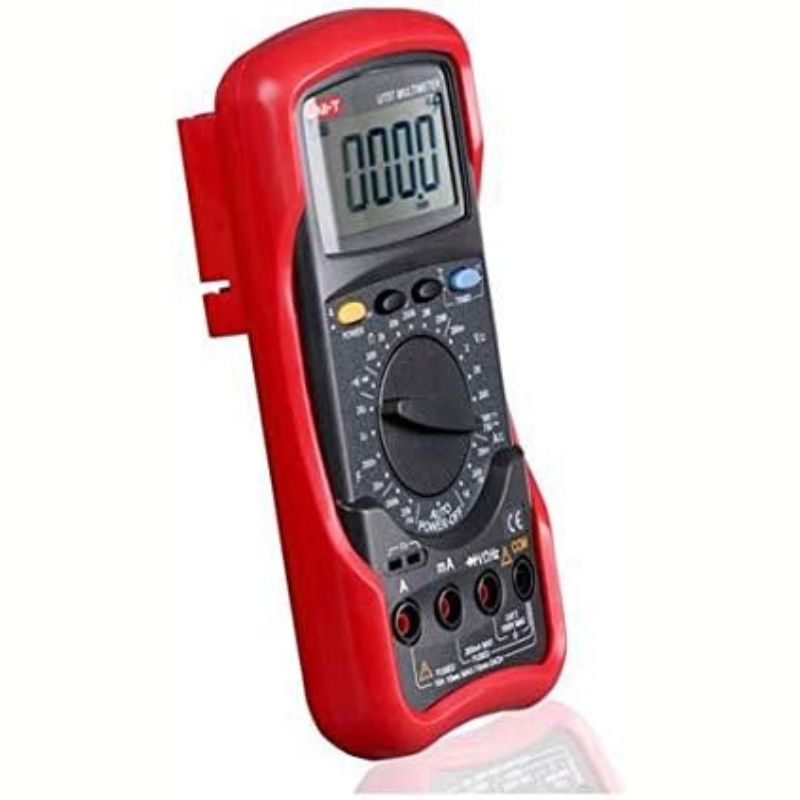

MULTIMETER DIGITAL 10A W/BASIC HFE/DIODE HANDHELD
Part Number
UT51
Manufacturer
Stock Number
MJJD-811A
SKU Number
238117
Stock Number: MJJD-811A    $44.95
$44.95
ea. CAD
Specifications Range Best Accuracy
Model   UT51
DC Voltage (V) 200mV/2V/20V/200V/1000V ±(0.5%+1)
AC Voltage (V) 200mV/2V/20V/200V/750V ±(0.8%+3)
DC Current (A) 20mA/200mA/2mA/20mA/200mA/2A/10A ±(0.8%+1)
AC Current (A) 200mA/2mA/20mA/200mA/2A/10A ±(1%+3)
Resistance (Ω) 200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ/200MΩ ±(0.8%+1)
Features
Fused 10A Range
Transistor
Diode
Continuity Buzzer
Low Battery Display
Input Impedance for DC Voltage Measurement 10MΩ
Max. Display 1999
General Characteristic
Power 9V Battery (6F22)
LCD Size 65mm×33mm
Product Colour Red and Grey
Product Net Weight 560g (including holster)
Product Size 190mm×88mm×34mm
Standard Accessories Test Lead, Batteryl, Holster
Standard Individual Packing Gift Box,English Manual
Standard Quantity Per Carton 20 Pcs
Standard Carton Measurement 535mm×362mm×385mm
Standard Carton Gross Weight 20.5 Kg
Optional Accessories* Clip-On Test Lead Light (UT-TL), Built-In Test Lead Light (UT-L1), Built-In Test Lead Light Plus (UT-L2)

Product Manual (en)
