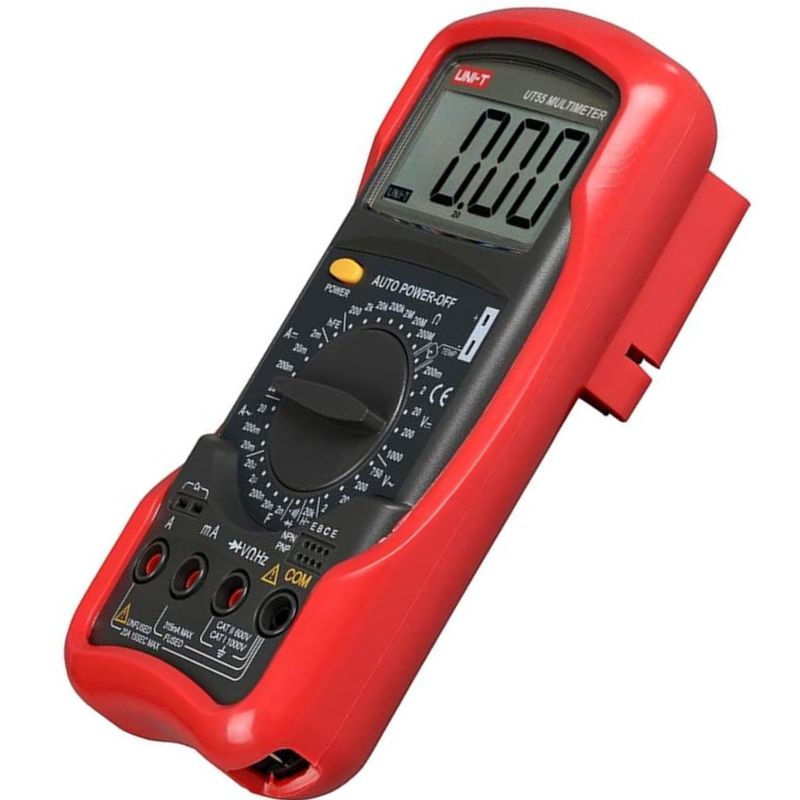

MULTIMETER DIGITAL 20A AUTO PWR CAPACITANCE/TEMP/DIODE/TRANS
Part No: UT55
Manufacturer: UNI-TREND TECHNOLOGY LTD.
Stock No: MJJP-881A
SKU No:238119
Stock Number: MJJP-881A    $54.95
$54.95
ea. CAD
Specifications Range Best Accuracy
Model   UT55
DC Voltage (V) 200mV/2V/20V/200V/1000V ±(0.5%+1)
DC Current (A) 2mA/20mA/200mA/20A ±(0.8%+1)
AC Voltage (V) 2V/20V/200V/750V ±(0.8%+3)
AC Current (A) 20mA/200mA/20A ±(1%+3)
Resistance (Ω) 200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ/200MΩ ±(0.8%+1)
Capacitance (F) 2nF/20nF/200nF/2μF/20μF ±(4%+3)
Frequency (Hz) 2kHz/20kHz ±(1.5%+5)
20kHz ±(1.5%+5)
Temperature (°C) -20℃~1000℃ ±(1%+3)
Features
Transistor
Diode
Continuity Buzzer
Sleep Mode
Low Battery Display
Input Impedance for DC Voltage Measurement 10MΩ
Max. Display 1999
General Characteristic
Power 9V Battery (6F22)
LCD Size 65mm×33mm
Product Colour Red and Grey
Product Net Weight 580g (including holster))
Product Size 190mm×88mm×34mm

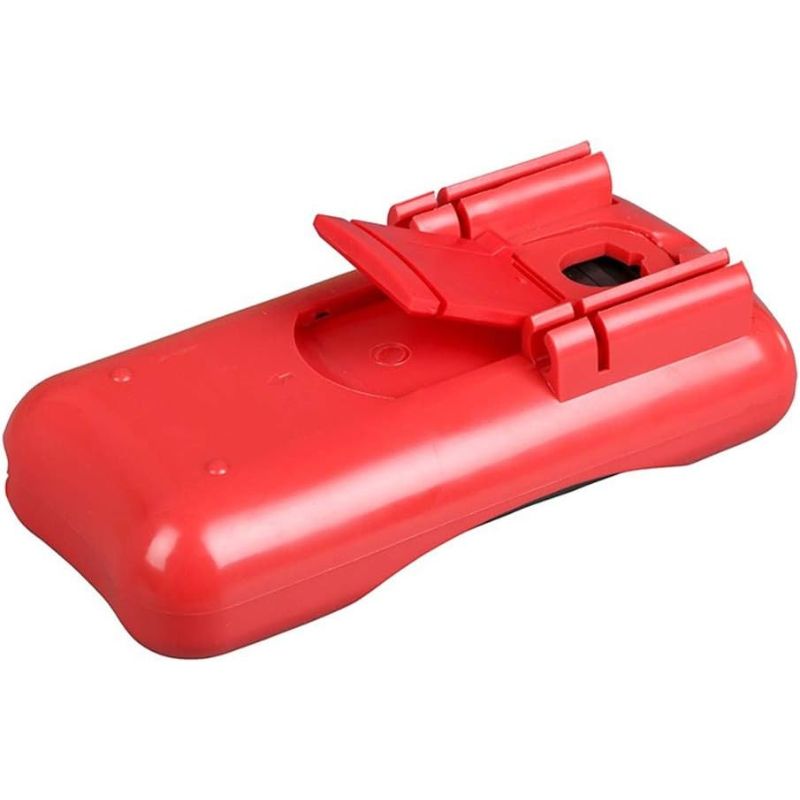

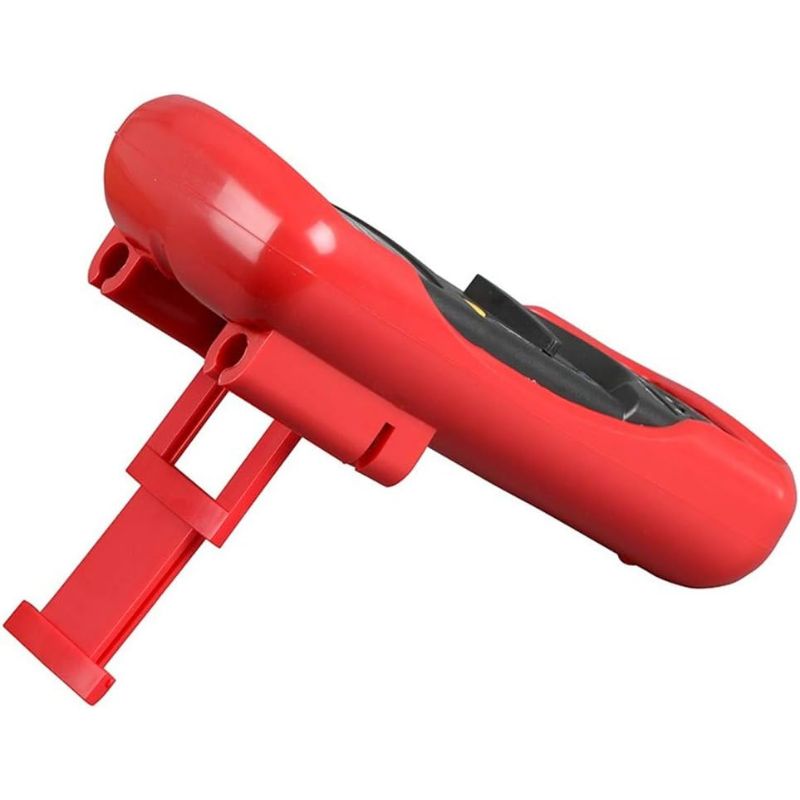

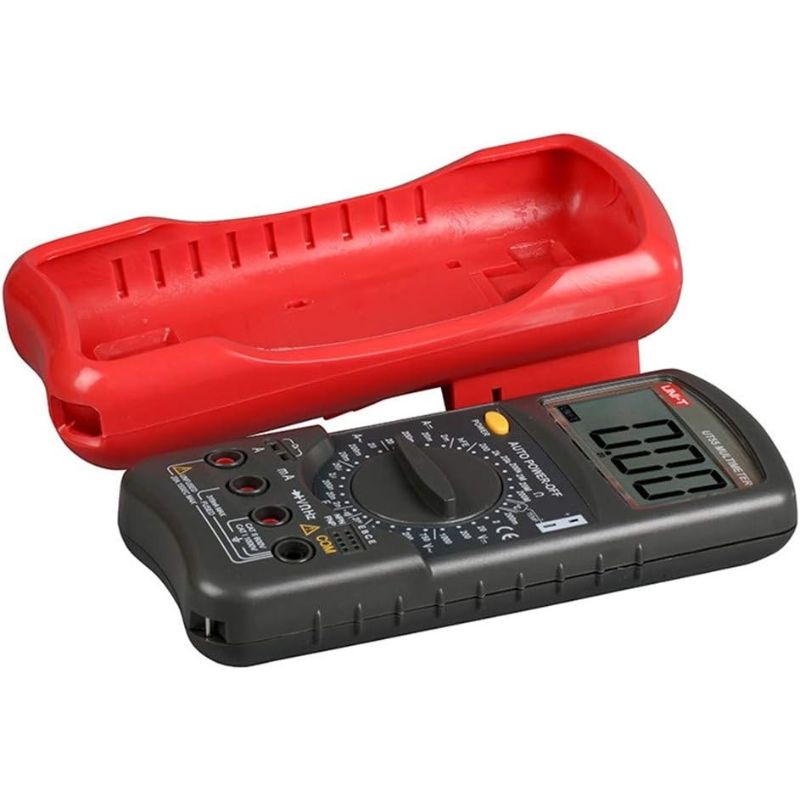

Standard Accessories Test Lead, Battery, Holster,Point type temperature probe
Standard Packing Gift Box, English Manual
Standard Quantity Per Carton 20 Pcs
Standard Carton Measurement 535mm×362mm×385mm
Standard Carton Gross Weight UT54-20.5kg,UT55-17.4kg
Optional Accessories* Clip-On Test Lead Light (UT-TL), Built-In Test Lead Light (UT-L1), Built-In Test Lead Light Plus (UT-L2)

Product Manual (en)
