MULTIMETER DIGITAL 20A CAP/DIODE/HFE/TEMP/VOLT/CUR
Part No: UT58E
Manufacturer: UNI-TREND TECHNOLOGY LTD.
Stock No: MJJP-882YY
SKU No: 238127
.jpg)
(1).jpg)
(2).jpg)
(3).jpg)
(4).jpg)
Image is for illustrative purposes only. Please refer to product description.
$94.95 CAD
Stock may not be available at all store locations. Inventory quantites can change without notice.
| Burlington | 2 | |
| Cambridge | 2 | |
| Markham | 1 | |
| Mississauga | 3 | |
| Scarborough | 3 | |
| Vaughan | 2 | |
| Warehouse | 12 |
| Specifications | Range | Best Accuracy |
| Model | UT58E | |
| DC Voltage (V) | 200mV/2V/20V/200V/1000V | ±(0.05%+3) |
| AC Voltage (V) | 2V/20V/200V/1000V | ±(0.5%+10) |
| DC Current (A) | 2mA/20mA/20A | ±(0.5%+5) |
| AC Current (A) | 20mA/200mA/20A | ±(0.8%+10) |
| Resistance (Ω) | 200Ω/2KΩ/20KΩ/2MΩ/200MΩ | ±(0.5%+10) |
| Capacitance (F) | 2nF/20nF/2μF/20μF | ±(3%+4) |
| Frequency (Hz) | 20KHz | ±(1.5%+5) |
| Temperature (°C) | -40 °C ～ 1000°C | ±(1%+30) |
| Features | ||
| Display Count | 2000 | |
| Manual Range | √ | |
| Diode | √ | |
| Transistor | √ | |
| Auto Power Off | √ | |
| Continuity Buzzer | √ | |
| Data Hold | √ | |
| Low Battery Indication | √ | |
| Full Icon Display | √ | |
| Input Impedance for DCV | Around 10MΩ | √ |
| Test Lead Connection Indications | √ | |
| General Characteristic | ||
| Power | 9V Battery（6F22) | |
| LCD Size | 60mm×54mm | |
| Product Color | Red and Grey | |
| Product Net Weight | 350g （Including holster) | |
| Product Size | 179mm×88mm×39mm | |

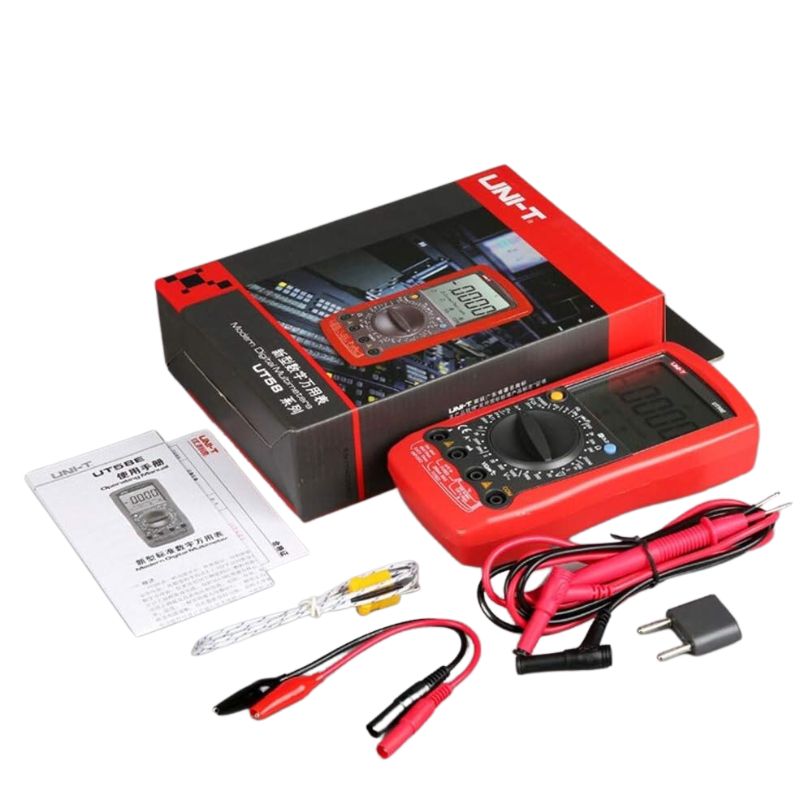

| Standard Accessories | Battery, Test Lead,Holster,Muli-Purpose Socket,Point Contact Temperature Probe | |
| Standard Individual Packing | Gift Box, English Manual | |
| Standard Quantity Per Carton | 40 PCs | |
| Standard Carton Measurement | 598mm×418mm×340mm (0.085 CBM Per Standard Carton) | |
| Standard Carton Gross Weight | 27 Kg | |
Product Manual (en)
