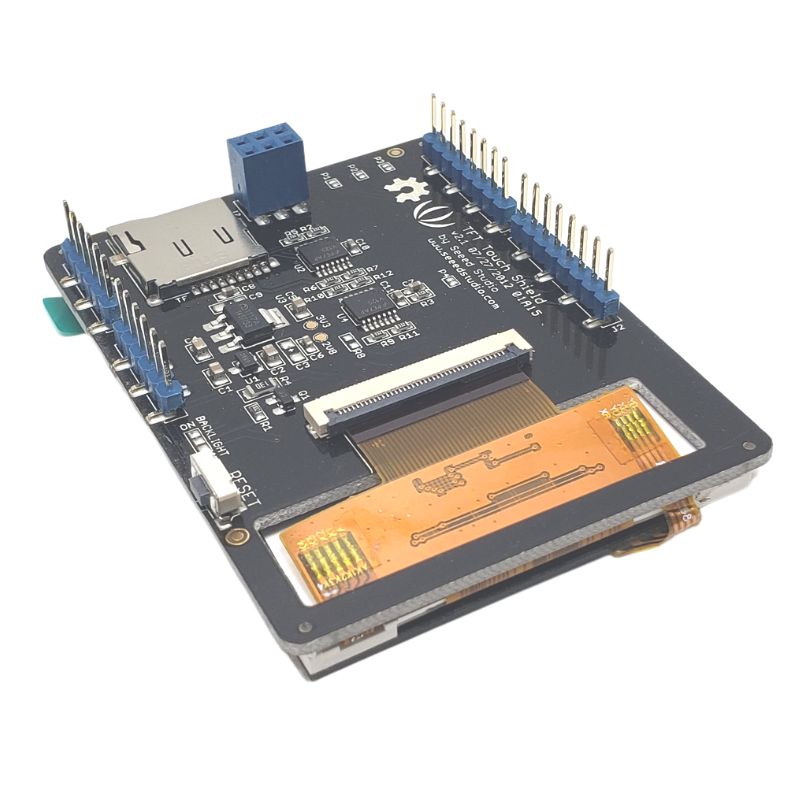

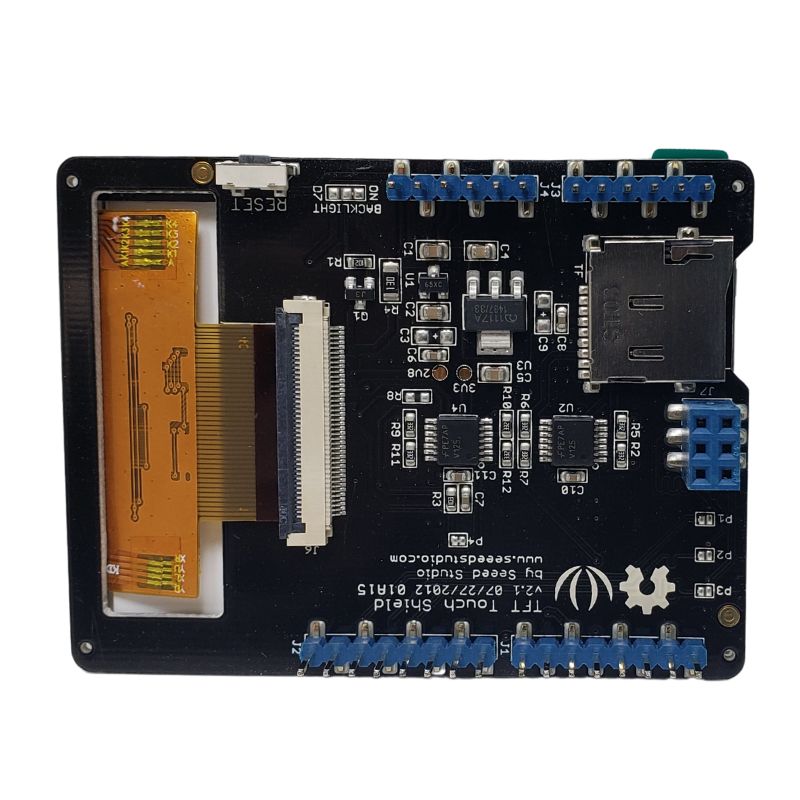

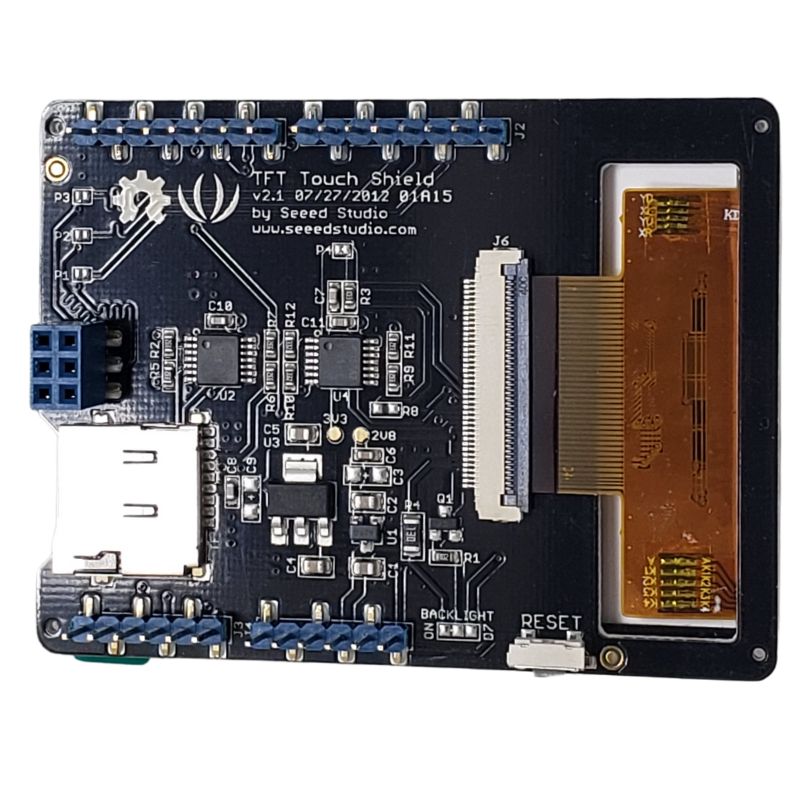

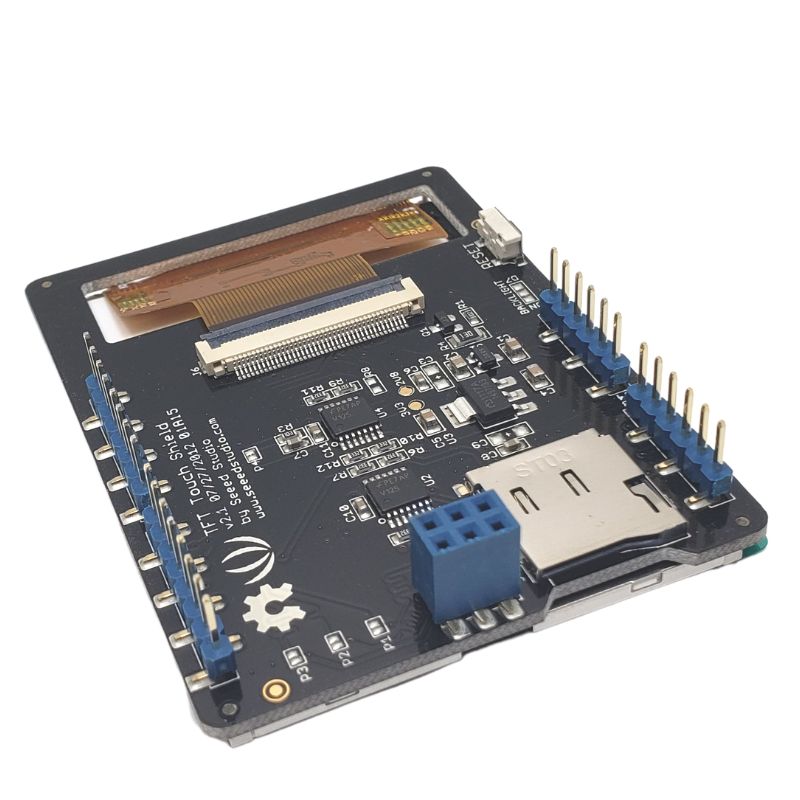

TFT SHIELD 2.8IN COLOR W/MICROSD SLOT COMPATIBLE WITH ARDUINO
Part No: 2760382
Manufacturer:
Stock No: 1813-KA1
SKU No: 244710
Stock Number: 1813-KA1    $39.95

Image is for illustrative purposes only. Please refer to product description.

$39.95 CAD
Stock may not be available at all store locations. Inventory quantites can change without notice.
Barrie2
Burlington1
Cambridge1
Markham5
Mississauga1
Scarborough6
Vaughan1
Warehouse 22
2.8" diagonal color touchscreen TFT 240x320 resolution, 18-bit (262,000) color - our library uses 16 bit color mode ILI9341 (datasheet) controller with built in video RAM buffer STMPE610 touch screen controller High speed SPI display with digital SPI touchscreen driver The display uses digital pins 13-9. Touchscreen controller requires digital pin 8. microSD pin requires digital #4. That means you can use digital pins 2, 3, 5, 6, 7 and analog 0-5. Pin 4 is available if not using the microSD Works with any classic Arduino '328. Solder closed three jumpers to use the ICSP header for use with Leonardo or Mega Onboard 3.3V @ 300mA LDO regulator, current draw depends on usage but is about 100mA for the display and touchscreen 4 white LED backlight. On by default but you can connect the transistor to a digital pin for backlight control 4-wire resistive touchscreen attached to STMPE610 controller
