IRF520 MOSFET DRIVER MODULE COMPATIBLE WITH ARDUINO
Part No: WPM411
Manufacturer: Velleman
Stock No: 1814-LB4
SKU No: 248137
Stock Number: 1814-LB4    $8.95
MODULES COMPATIBLE WITH ARDUINO 1557
MODULES COMPATIBLE WITH ARDUINO 1558

Image is for illustrative purposes only. Please refer to product description.

$8.95 CAD
** International Order Shipping Charges Apply - Read about it here.
Stock may not be available at all store locations. Inventory quantites can change without notice.
Burlington2
Cambridge4
Markham7
Mississauga5
Scarborough3
Vaughan2
Warehouse 46
Details
Documents

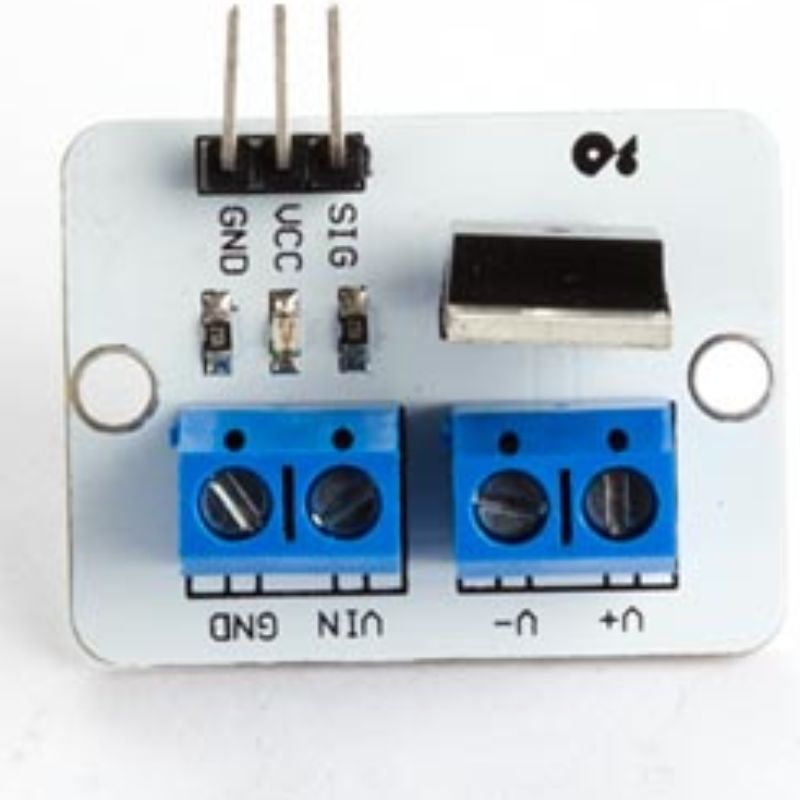

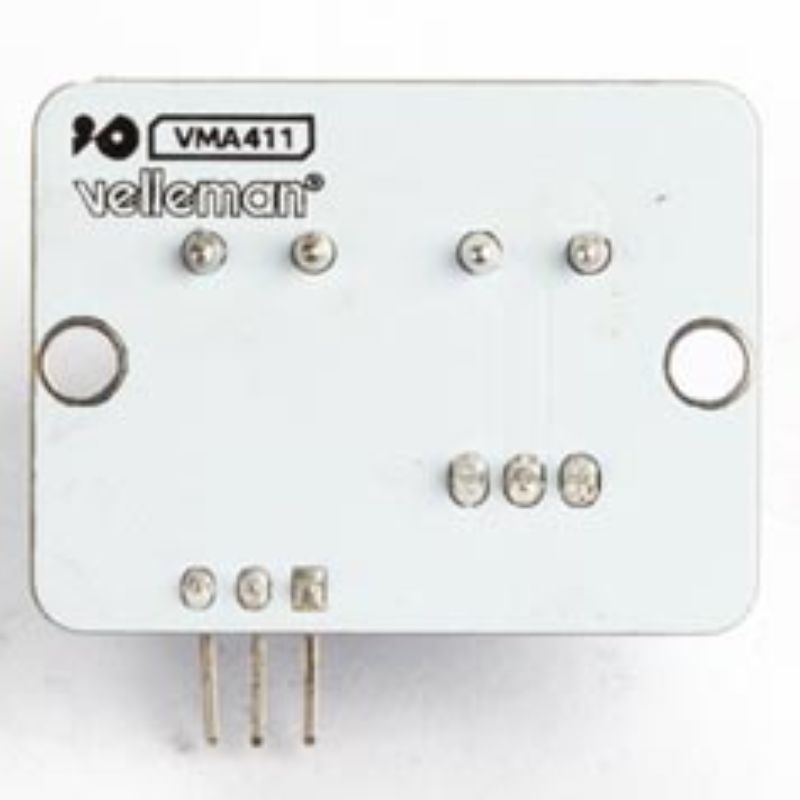

ARDUINO COMPATIBLE MOS DRIVING MODULE

This little module is a breakout board for the IRF520 MOSFET transistor. The module is designed to switch heavy DC loads from a single digital pin of your microcontroller.

Its main purpose is to provide a low cost way to drive a DC motor for robotics applications, but the module can be used to control most high current DC loads.

Specifications:
  • Operating voltage: 3 to 5 VDC
  • Max. load voltage: 0 to 24 VDC
  • Input: SIG pin, logic level 3 to 5 VDC
  • Max. load current: 5 A (a heatsink is required for loads > 1 A)
  • MOSFET: IRF520
  • Dimensions: 34 x 21 x 16 mm

To purchase bulk quantities, Please contact our Sales Department
(+1-416-494-8999) or email shop@sayal.com
