OSEPP 101 BASIC STARTER KIT W/UNO BOARD COMPATIBLE W/ARDUINO - ARD-01

OSEPP 101 BASIC STARTER KIT W/UNO BOARD COMPATIBLE W/ARDUINO

Part No: ARD-01

Manufacturer: OSEPP

Stock No: 1811-BF2

SKU No: 249553

Image is for illustrative purposes only. Please refer to product description.

$89.94 CAD

Stock may not be available at all store locations. Inventory quantites can change without notice.

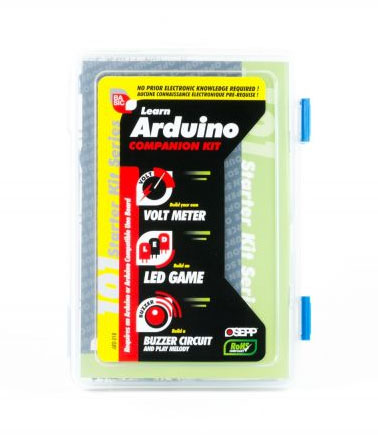

OSEPP™ 101 Arduino Basics Starter Kit (incl. UNO Board)

Discover Arduino through EASY and FUN lessons
Step-by-step instructions with diagrams
No prior electronics knowledge required
Kit comes with everything you need to build your own:
- Volt Meter
- LED Game
- Buzzer Circuit and play melody
- INCLUDES the OSEPP UNO R3 PLUS board!

8-bit AVR RISC-based microcontroller running at 16 MHz
Microcontroller ATmega328P
Clock Speed 16 MHz
Flash Memory 32 KB
SRAM 2 KB
EEPROM 1 KB
Connects to a computer via a standard USB cable
Flexible power source (USB or DC power)
ICSP header for programming microcontroller
Compatible with existing Arduino software libraries
Compatible with the Ethernet and Motor Controller Shields

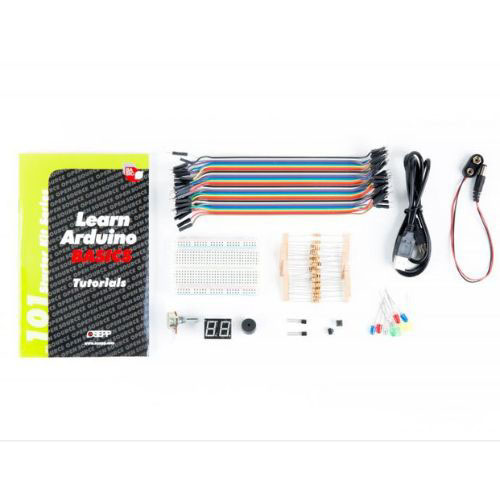

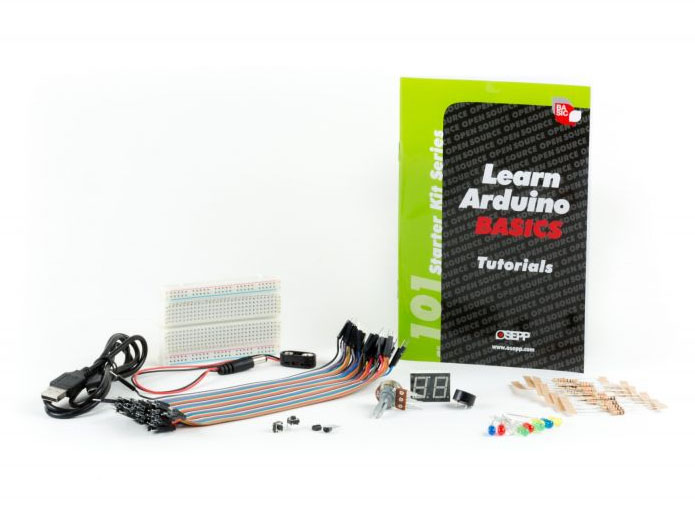

OSEPP UNO R3 Plus	1
6 feet USB type A to mini-B	1
Tact push switch 6mm x 6mm – through hole	2
DIP switch 4 position – through hole	1
1K ohm potentiometer (variable resistor) – long pins	1
10K ohm potentiometer (variable resistor) – long pins	1
330 ohm axial resistor, 1/2W, 5%	20
1 k ohm axial resistor, 1/2W, 5%	5
10k ohm axial resistor, 1/2W, 5%	5
LED through hole – Red, 8.7mm height, ~2V drop, ~10-20mA	2
LED through hole – Yellow, 8.7mm height, ~2V drop, ~10-20mA	2
LED through hole – Green, 8.7mm height, ~2V drop, ~10-20mA	2
LED through hole – White, 8.7mm height, ~2V drop, ~10-20mA	2
LED through hole – Blue, 8.7mm height, ~2V drop, ~10-20mA	2
Two digits 7-segment LED – RED	2
Buzzer, 5Vo-p	1
NPN transistor	2
Breadboard – 30 columns x 14 rows (include 2 VCC and 2 GND)	1
Ribbon Jumper Cables	40
9 Volt Battery Connector	1
2cm x 2cm x 3mm thick double side tape	2
Information sheet – Arduino UNO diagram + basic electronic theory	1
Really nice Kit container	1
