ROBOTIC FUNCTION KIT W/UNO BOARD COMPATIBLE WITH ARDUINO
Part No: MECHF-01
Manufacturer: OSEPP
Stock No: 1811-BH1
SKU No: 249556
Stock Number: 1811-BH1    $139.95
BOARDS COMPATIBLE WITH ARDUINO 1026

Image is for illustrative purposes only. Please refer to product description.

$139.95 CAD
Stock may not be available at all store locations. Inventory quantites can change without notice.
Burlington1
Cambridge2
Markham1
Mississauga2
Scarborough2
Vaughan1
Robotic Functional Kit The Robotics Functional Kit
adds smarts and control to your Mechanical Kits!

This kit includes an OSEPP UNO R3 PLUS micro controller board, a high voltage TB6612 Motor Shield and sensors that gives users the most commonly requested robotic functions.

All of the assembly instructions and code are open source and downloadable from the Documents tab.

Bluetooth (HC-06) Module
This module allows the user to control their project using their Android smart device.

Ultrasonic Sensor
This module provides object avoidance function.

IR Follower
With this module, you can turn your flash light into a remote control.

Line Sensor
This is no typical line sensor. Most line sensors in the market has one sensor so it is sensitive to the width of the line it is trying to follow. Our sensor module has FIVE sensors so it can follow lines of different widths and with increased accuracy. Works best following black lines on white background.

100% Arduino Compatible

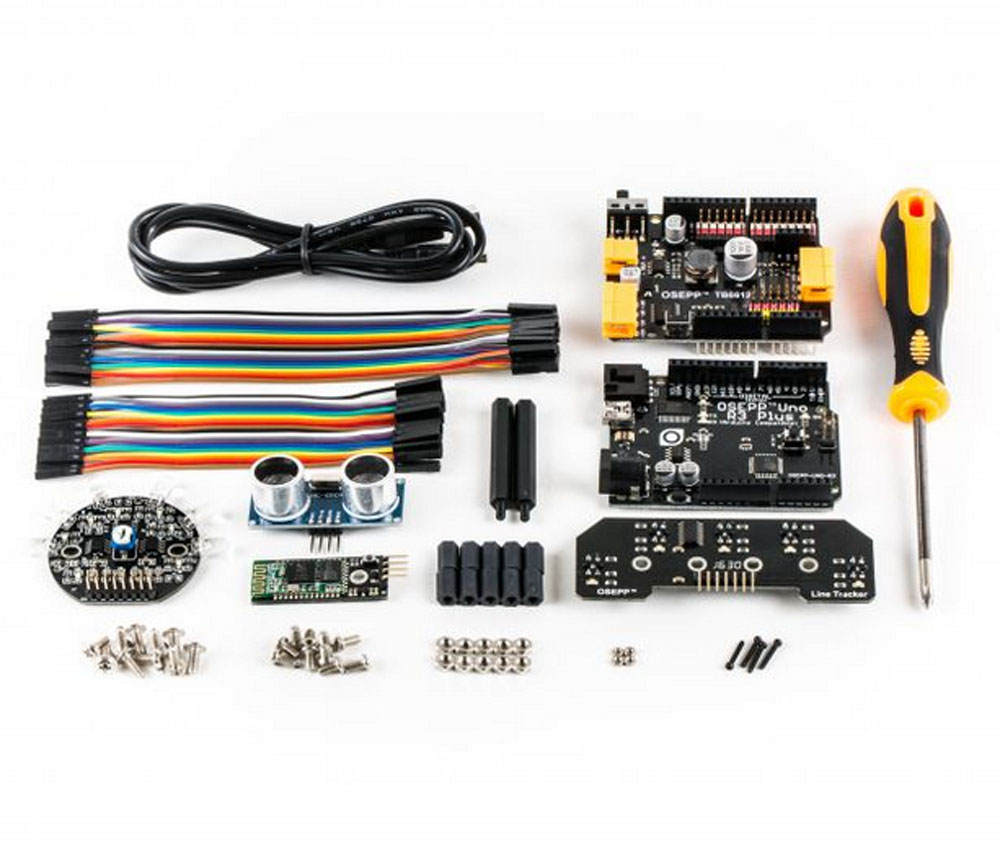

Robotic Functional Kit Includes:
  • OSEPP UNO R3 Plus X1
  • Motor Shield-6612 X1
  • bluetooth Module (HC-06) X1
  • Ultrasonic Sensor X1
  • IR Light Folloing Module X1
  • Line Follower Module X1
  • Jumper Wire FF 10cm 20pc X20
  • Jumper Wire FF 15cm X20
  • standoff M3*10 X10
  • standoff M3*30 X6
  • Ultrasonic Screw Mounting Set X1
  • Screw M3 Set X1
  • Nut M3 Set X1
  • Mini USB Cable X1

  • TB6612 Driver Schematic https://www.osepp.com/downloads/pdf/tb6612.pdf
  • Bluetooth App (Pairs to HC-06) https://www.osepp.com/robotic-kits/7-robotic-functional-kit
  • Bluetooth App Setup Instructions https://www.osepp.com/downloads/kits/bluetooth%20app%20install%20instructions%202.0%20copy.pdf
