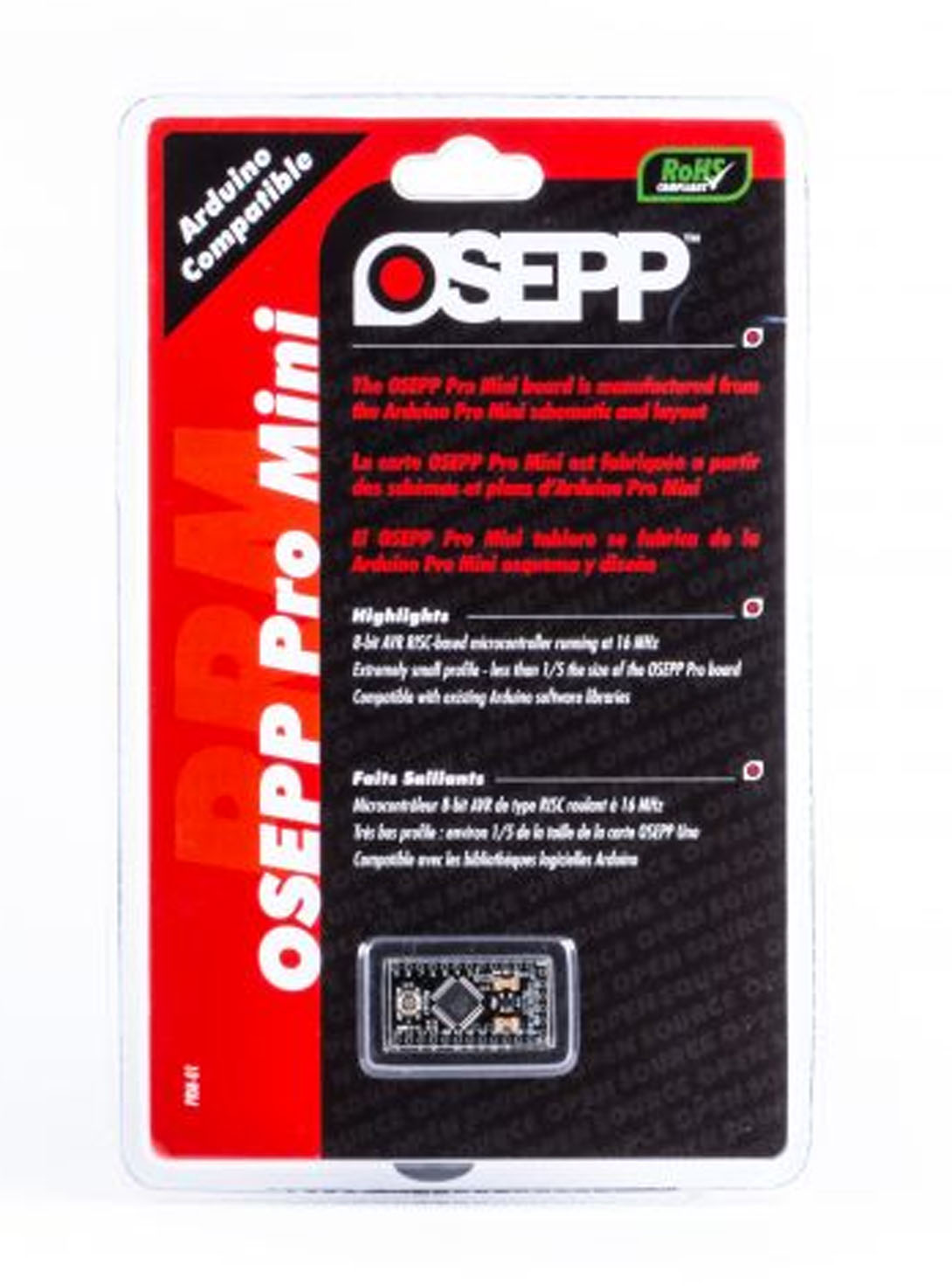

OSEPP PRO MINI BOARD ATMEGA328P MICROCONTROLLER BASED
Part Number
PRM-01
Manufacturer
Stock Number
1811-PB1
SKU Number
249560
Stock Number: 1811-PB1    $21.95
$21.95
ea. CAD

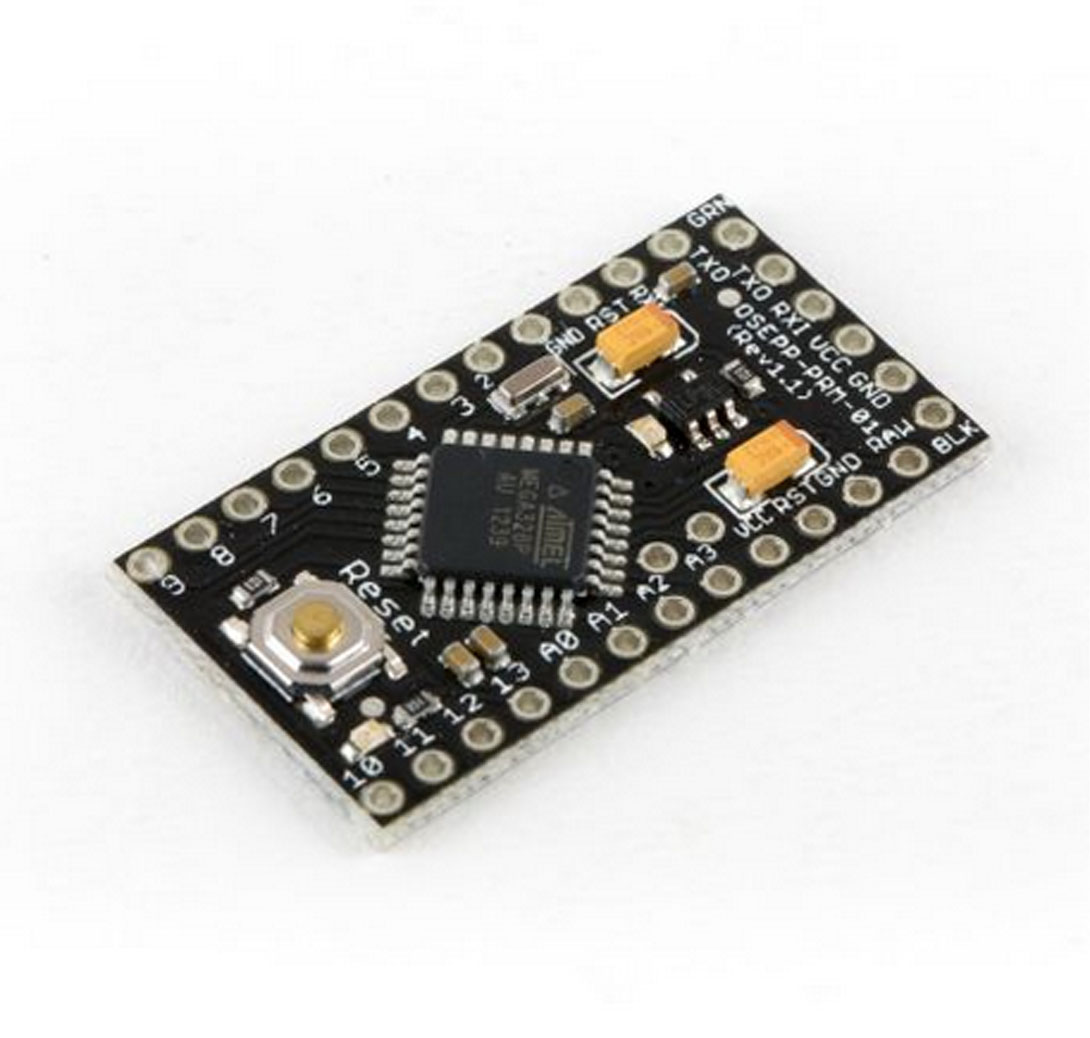

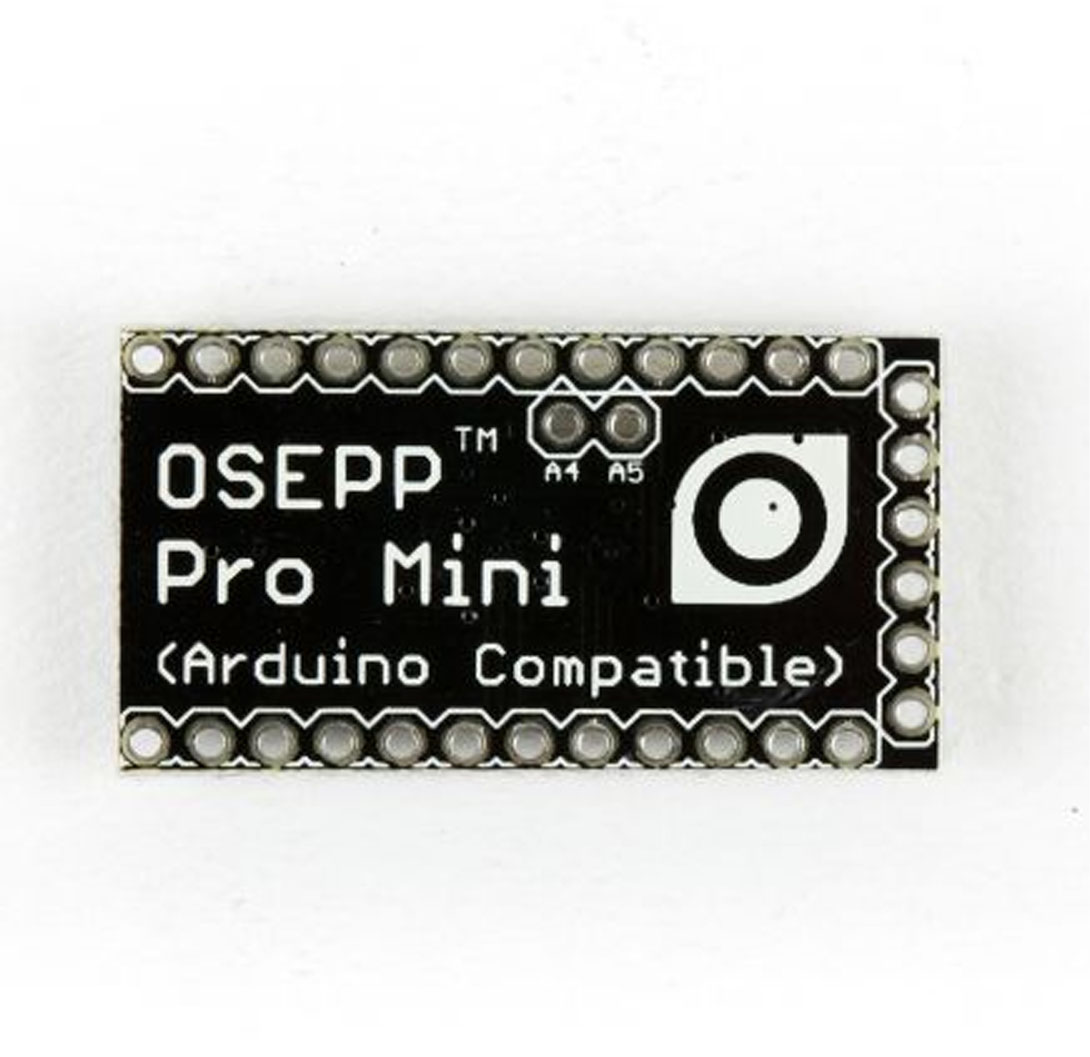

OSEPP™ Pro Mini The OSEPP™ Pro Mini board is a miniaturized version of the OSEPP™ Pro, which in turn is a stripped down version of the OSEPP Uno. Basically, this is as small as it gets which allows for easy concealment in projects. Microcontroller ATmega328P Clock Speed 16 MHz Flash Memory 32 KB SRAM 2 KB EEPROM 1 KB Operating Voltage 5V Input Voltage 5-12 V Digital I/O Pin Count 14 (including 6 for PWM output) Analog Input Pin Count 6 Other Connections Serial communication (requires header) Power (requires header) Dimensions 1.34 x 0.71 x 0.08 inches (34.0 x 18.0 x 2.0 mm) Power Source DC power supply Highlights: 8-bit AVR RISC-based microcontroller running at 16 MHz Extremely small profile – less than 1/5 the size of the OSEPP™ Pro board Compatible with existing Arduino software libraries Features: This board is the smallest OSEPP™ board thus far, but it still packs the same ATmega328P microcontroller running at 16 MHz. Many of the optional connections and devices for development have been stripped out, thus allowing for a massive reduction in PCB estate. This board is meant to be a permanent fixture in a developed project.
SCHEMATIC http://osepp.com/wp-content/uploads/2011/09/OSEPP_Pro_Mini_Arduino_Compatible-Rev1.1-Schematic.pdf OSEPP Pro Mini EAGLE Files https://www.osepp.com/electronic-modules/microcontroller-boards/103-osepp-pro-mini
