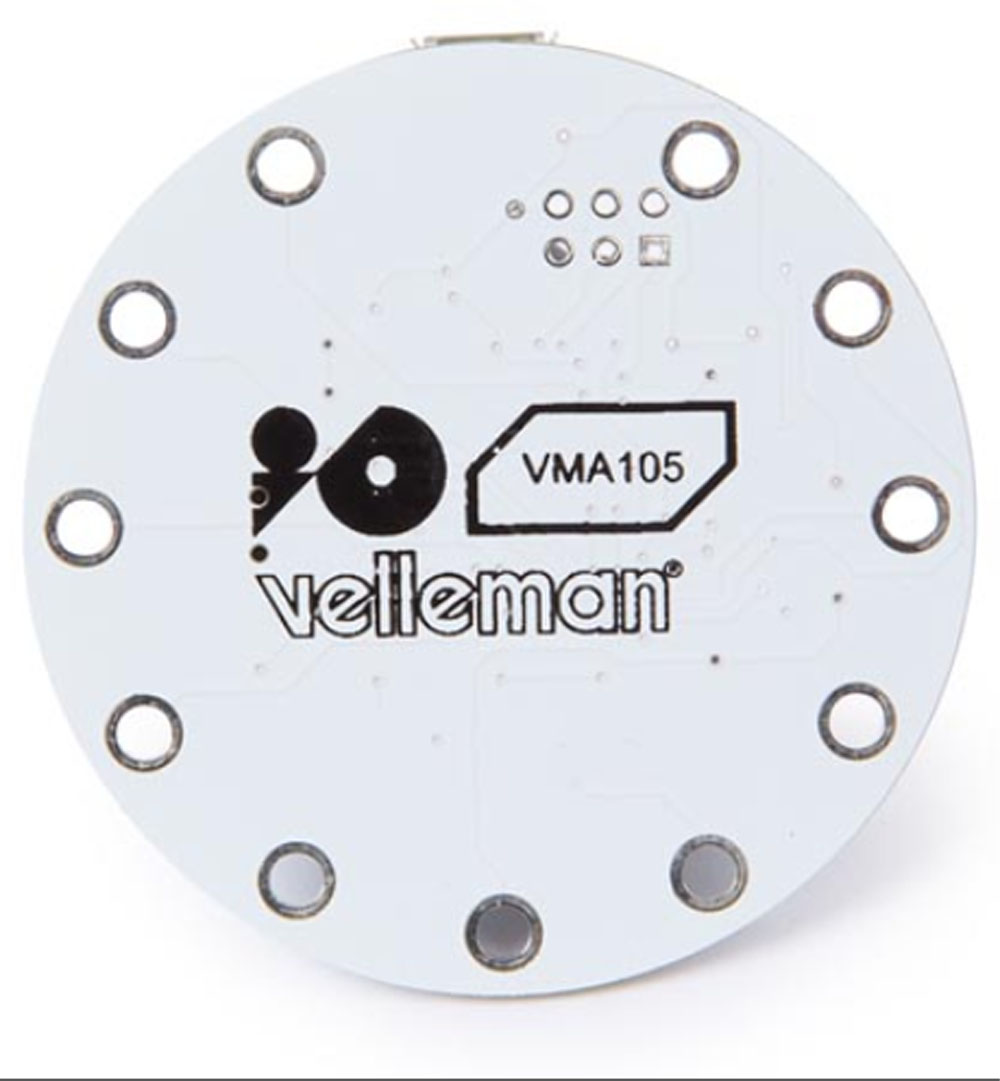

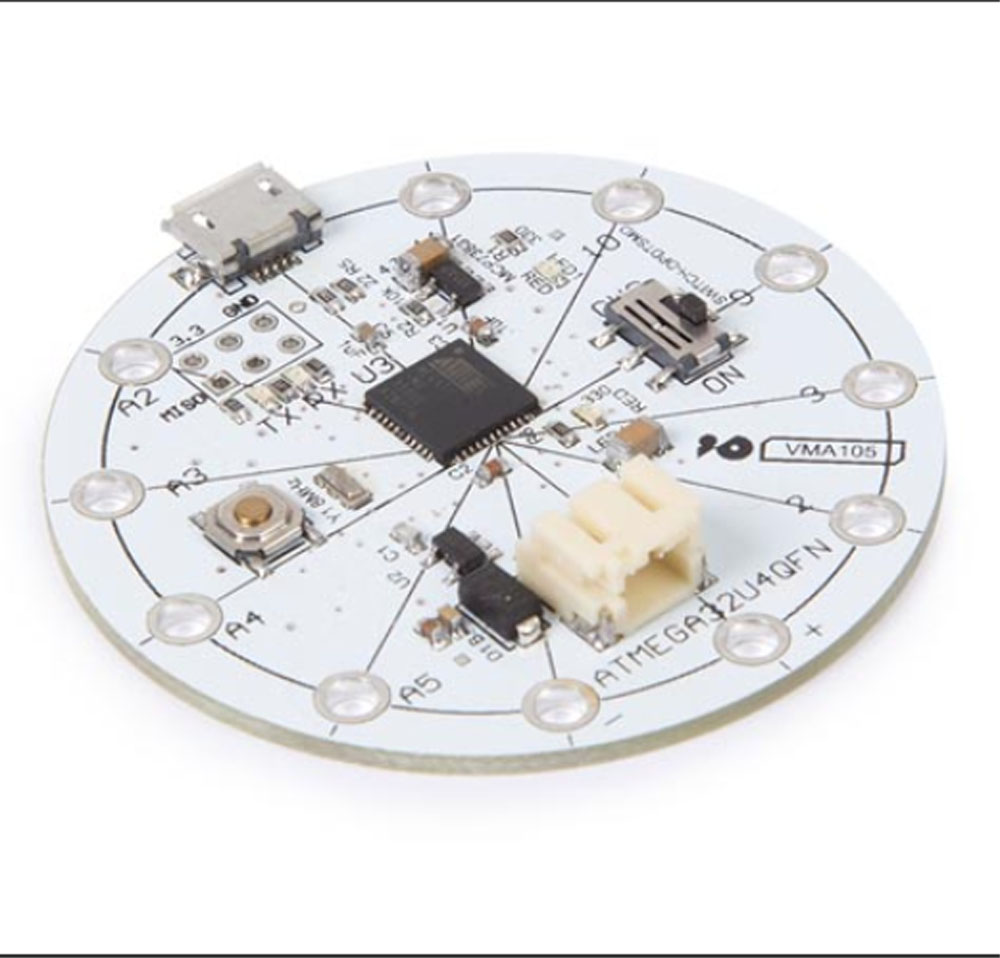

ATMEGA32U4 WEARABLE DEVLOPMENT BOARD ARDUINO LILYPAD COMPATIBLE
Part No: VMA105
Manufacturer: Velleman
Stock No: 1811-SA4
SKU No:252737
Stock Number: 1811-SA4    $28.95
$28.95
ea. CAD
This wearable development board can be used on textiles as well as sensors, actuators and similarly mounted power supplies. Features 100% compatible with Arduino® Liliypad Specifications microcontroller: ATmega32U4 operating voltage: 2.7 - 5.5 VDC input voltage: 2.7 - 5.5 VDC digital I/O pins: 9 PWM channels: 4 analogue input channels: 4 DC current per I/O pin: 40 mA flash memory: 32 KB (of which 4 KB used by bootloader) SRAM: 2.5 KB EEPROM: 1 KB clock speed: 8 MHz diameter: 50 mm
