RELAY MODULE 1 CHANNEL SOLID STATE
Part No: VMA332
Manufacturer: Velleman
Stock No: 1814-JB3
SKU No: 252744
.jpg)
.jpg)

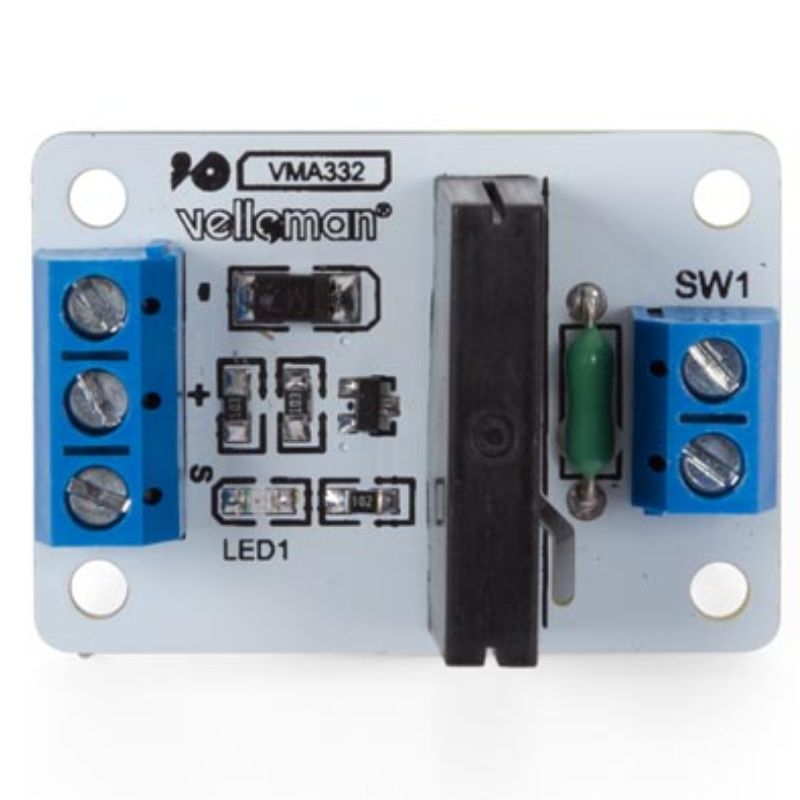

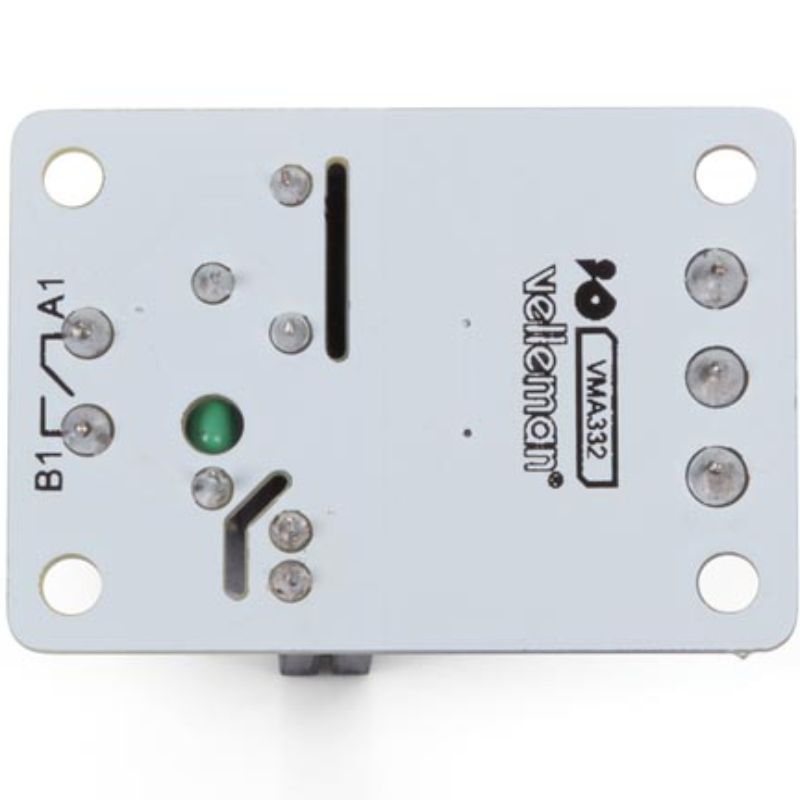

Image is for illustrative purposes only. Please refer to product description.
$12.95 CAD
Stock may not be available at all store locations. Inventory quantites can change without notice.
| Burlington | 2 | |
| Cambridge | 4 | |
| Markham | 1 | |
| Mississauga | 4 | |
| Scarborough | 2 | |
| Vaughan | 2 | |
| Warehouse | 45 |
power supply: 5 VDC
power current: max. 10 mA
input voltage:
relay ON: 0 to 2.5 VDC
relay OFF: 3.3 to 5 VDC
max. load: 240 VAC 2 A 50/60 Hz
dimensions: 2.5 x 2.5 x 3.6 cm
weight: 6 g
protection: 2A Pico fuse on board
