WIRELESS TRANCEIVER MODULE 24GH 2.4GHZ NRF24L1
Part No: WPI322
Manufacturer: Velleman
Stock No: 1814-QA1-2
SKU No: 254083
Stock Number: 1814-QA1-2    $29.95
MODULES COMPATIBLE WITH ARDUINO 1378
MODULES COMPATIBLE WITH ARDUINO 1379
MODULES COMPATIBLE WITH ARDUINO 1380

Image is for illustrative purposes only. Please refer to product description.

$29.95 CAD
( 2 PCS/PKG )
Stock may not be available at all store locations. Inventory quantites can change without notice.
Burlington2
Cambridge2
Markham2
Mississauga2
Scarborough2
Vaughan2

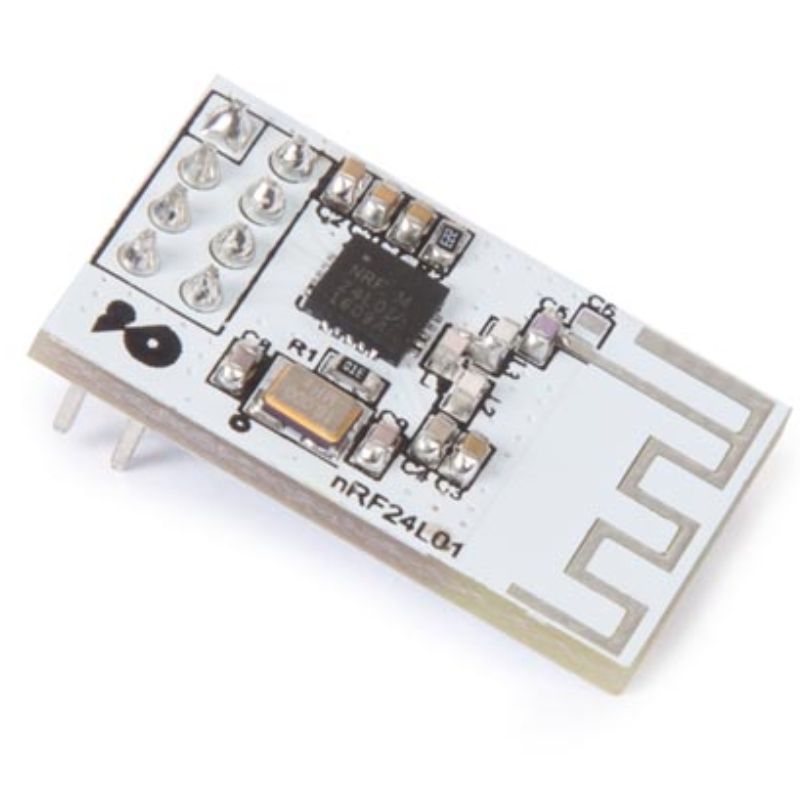

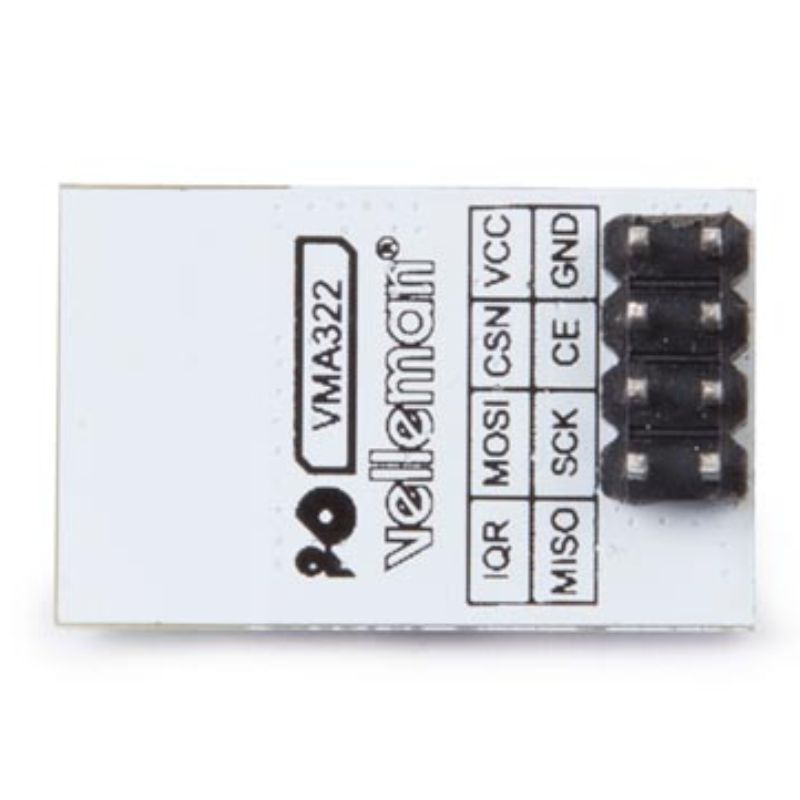

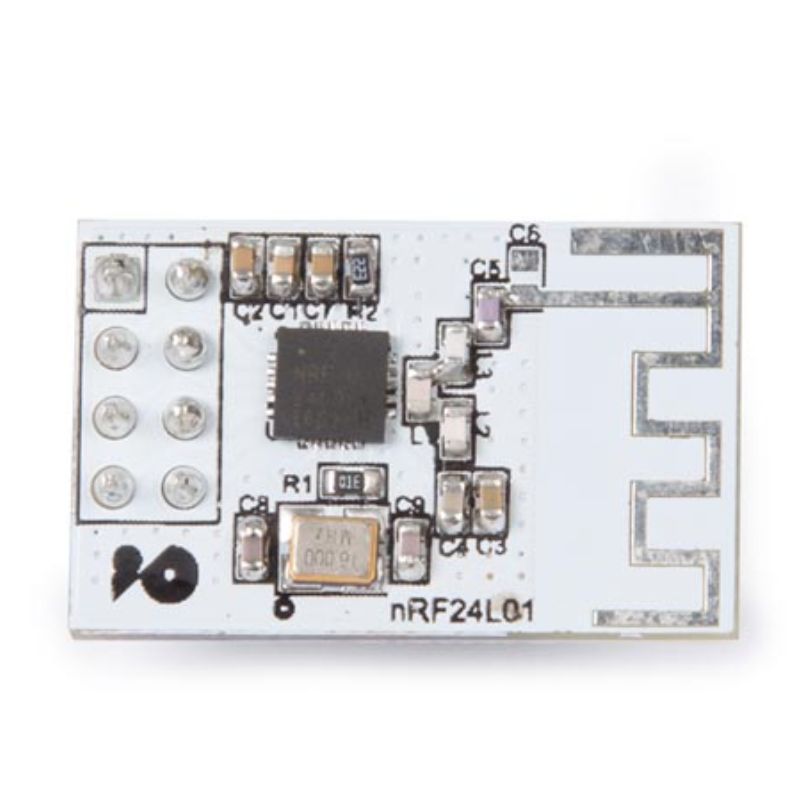

This module based on Nordic nRF24L01, highly integrated, ultra low power (ULP) 2Mbps RF transceiver for the 2.4GHz ISM (Industrial, Scientific and Medical) band. Nordic nRF24L01+ integrates a complete 2.4GHz RF transceiver, RF synthesizer, and baseband logic including the Enhanced ShockBurst™ hardware protocol accelerator supporting a high-speed SPI interface for the application controller.

Features

  • worldwide license-free 2.4 GHz ISM band operation
  • 250 kbps, 1 Mbps and 2 Mbps on-air data-rate options
  • enhanced ShockBurst™ hardware protocol accelerator
  • ultra low power consumption - months to years of battery lifetime

Specifications

  • power supply: 1.9 - 3.6 V
  • IO port working voltage: 0 - 3.3 V
  • transmitting rate: +7 dB
  • receiving sensitivity: < 90 dB
  • transmission range: 250 m in open area
  • dimensions: 15 x 29 mm
