PSU SW 1-36VDC@0.25-3A BENCHTOP 3.3/5V@1.8A 12V@0.8A DIGITAL
Part No: PSC-4136
Manufacturer: Circuit Test
Stock No: PJE-3235
SKU No:254529
Stock Number: PJE-3235    $359.95

Image is for illustrative purposes only. Please refer to product description.

ea. CAD
PSC-4136 is a 100W Switching Mode Power Supply with current limiting control, featuring three fully isolated outputs which can be used independently, simultaneously or in combination. The variable output is also remotely programmable with the USB interface.

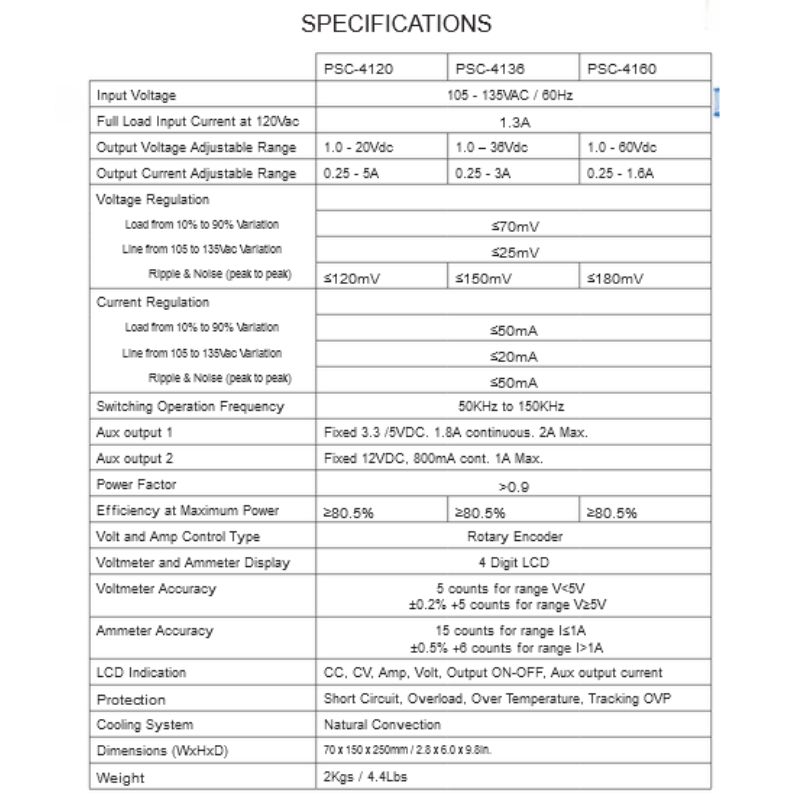

  • Variable Output: 1-36VDC / 0.25-3A
  • Fixed Output: 3.3 or 5VDC (selectable) / 1.8A, 12VDC / 0.8A
  • Constant Voltage or Constant Current with automatic crossover
  • Fully isolated outputs

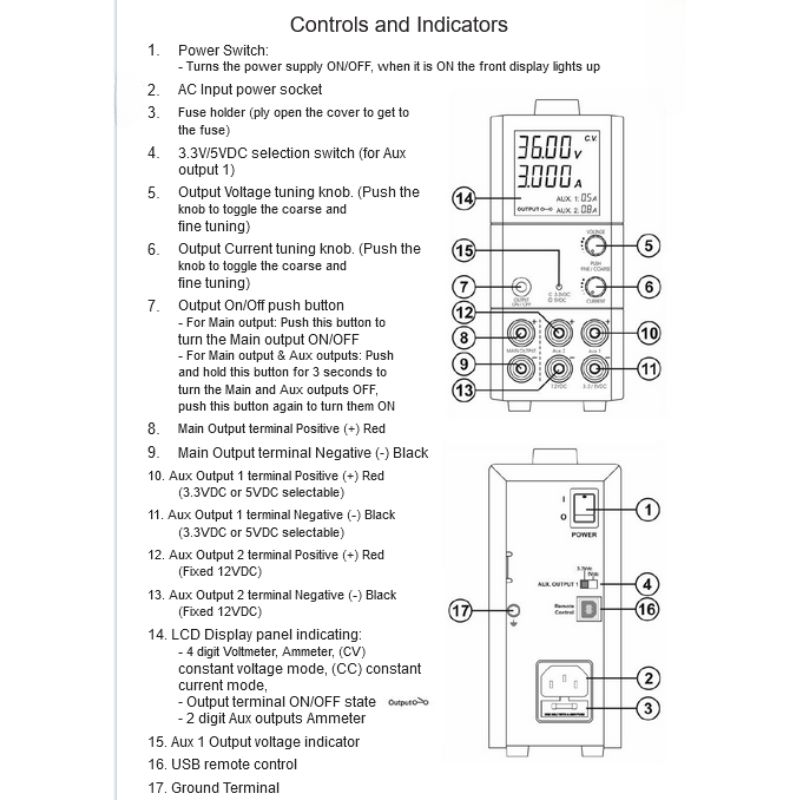

  • Output On-Off switch on front panel

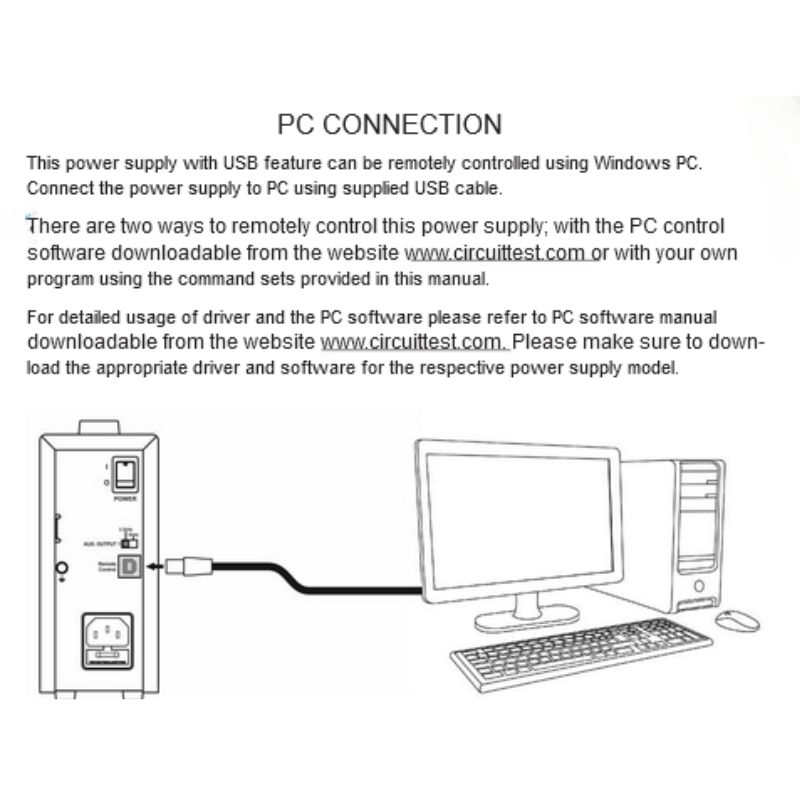

  • USB port to interface with computer
  • Rotary encoder for easy tuning of voltage and current
  • 4-Digit LCD Voltage and Current displays
  • Tracking OVP (output over voltage protection)
  • Natural convection
