ULTRASONIC SENSOR HC-SR04
Part No: 40313
Manufacturer:
Stock No: 1814-KD1AA
SKU No: 255309
Stock Number: 1814-KD1AA    $6.95
MODULES COMPATIBLE WITH ARDUINO 392

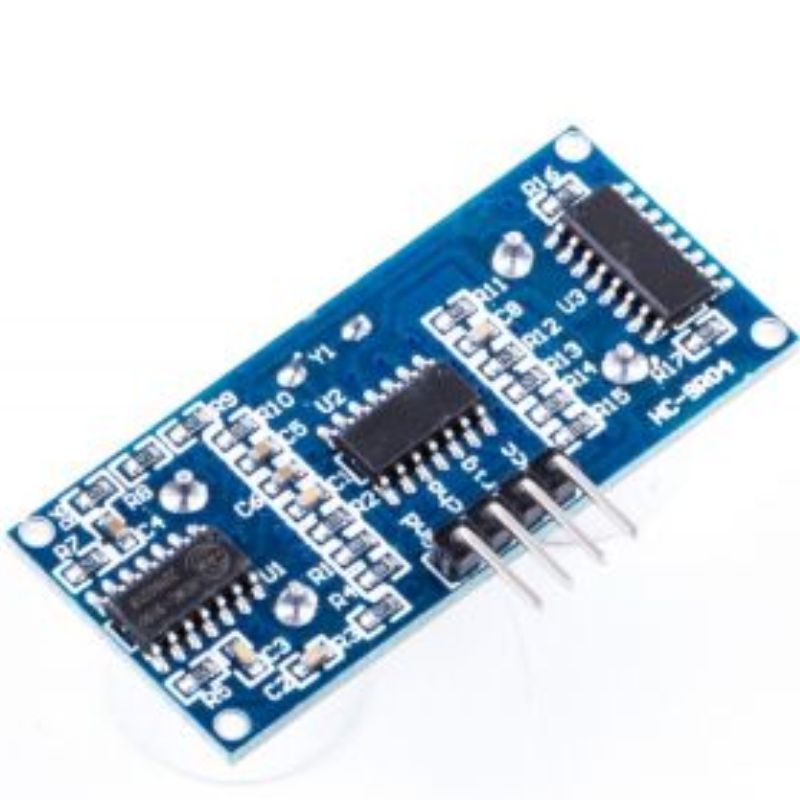

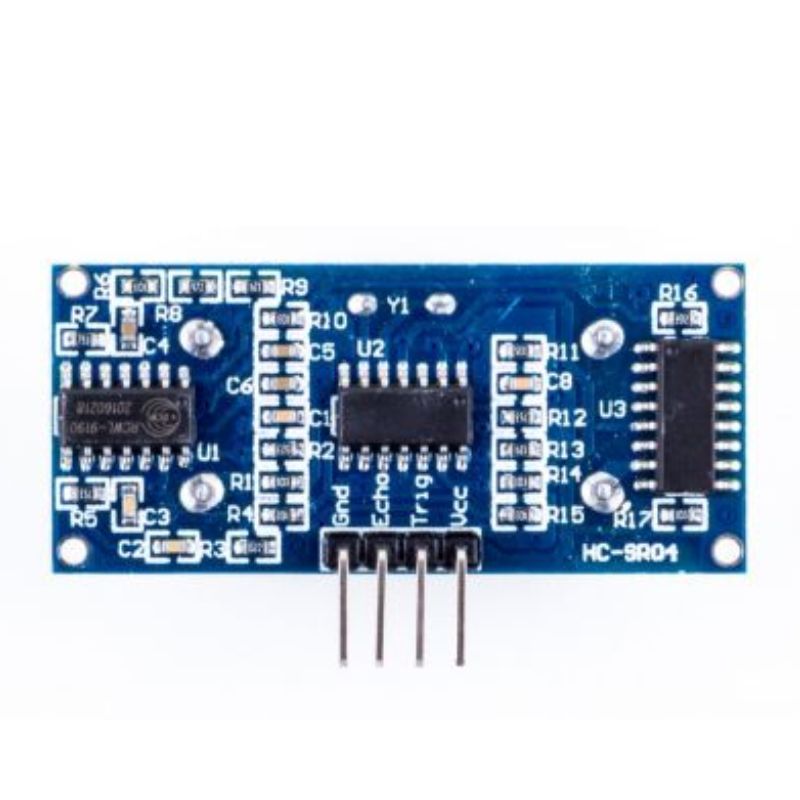

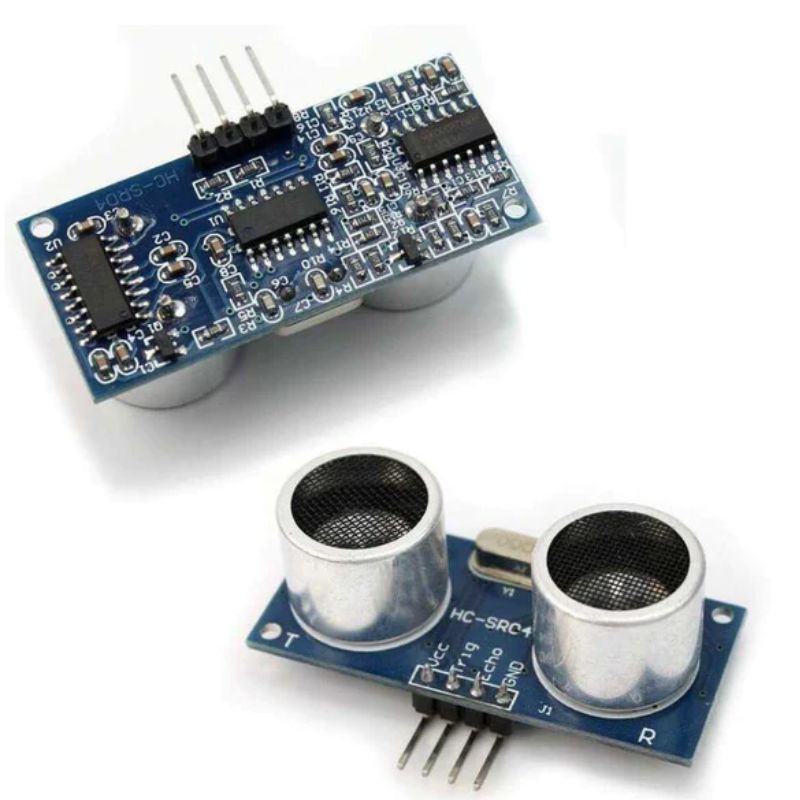

Image is for illustrative purposes only. Please refer to product description.

$6.95 CAD
Stock may not be available at all store locations. Inventory quantites can change without notice.
Barrie2
Burlington2
Cambridge4
Markham2
Mississauga2
Scarborough2
Vaughan1
Geekcreit® Ultrasonic Module HC-SR04 Distance Measuring Ranging Transducers Sensor DC 5V 2-450cm

Supply module with 5V, the output will be 5V while obstacle in range, or 0V if not.The output pin of this module is used as a switching output when anti-theft module, and without the feet when ranging modules.

Note : the module should be inserted in the circuit before been power, which avoid producing high level of non-operation; if not, then power again.

Features
  • Working Voltage : 5V(DC)
  • Static Current: Less than 2mA.
  • Output Signal: high level 5V, low level 0V.
  • Sensor Angle: Not more than 15 degrees.
  • Detection Distance: 2cm-450cm.
  • High Precision: Up to 0.3cm
  • Input Trigger Signal: 10us TTL impulse
  • Signal : output TTL PWL signal
  • Mode of connection: VCC, trig(T), ech0(R), GND
Module Working Principle:

1. Adopt IO trigger through supplying at least 10us of high level signal.
2. The module automatically send eight 40khz square wave and automatically detect whether receive the returning pulse signal.
3. If there is signals returning, through outputting high level and the time of high level continuing is the time of that from the ultrasonic transmitting to receiving. Test distance =(high level time * sound (340M/S) / 2.
