MULTIMETER DIGITAL AUTO CATIV 600V TRUE RMS IP67
Part No: 16030A
Manufacturer: SOUTHWIRE COMPANY
Stock No: MJRH-115
SKU No: 257852
Stock Number: MJRH-115    $39.95

Image is for illustrative purposes only. Please refer to product description.

REG. $52.95
$39.95 CAD SAVE $13
Curb-Side Store Pickup can be selected at Checkout.

Make sure all products in your cart are at the preferred store.
We will contact you when your order is ready to pickup.

To purchase bulk quantities, Please contact our Sales Department (+1-416-494-8999) or email shop@sayal.com
Store Stock Check
Barrie6
Burlington13
Cambridge4
Markham12
Mississauga15
Scarborough5
Vaughan10
Warehouse 104

  • AUTO-SELECTING - Automatically selects AC or DC voltage
  • AUTO HOLD FUNCTION - For quick touch and hold readings
  • TrueRMS - Higher accuracy on AC circuits
  • EASY TO READ - 4000 count backlit display

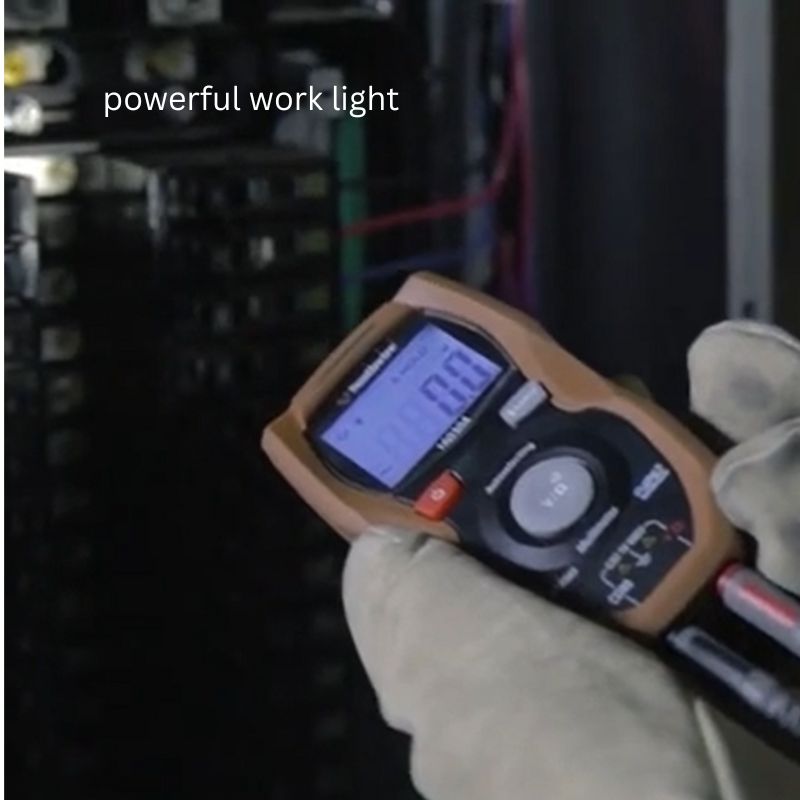

  • ADDED CONVENIENCE - Built-in non-contact AC voltage detector and powerful work light

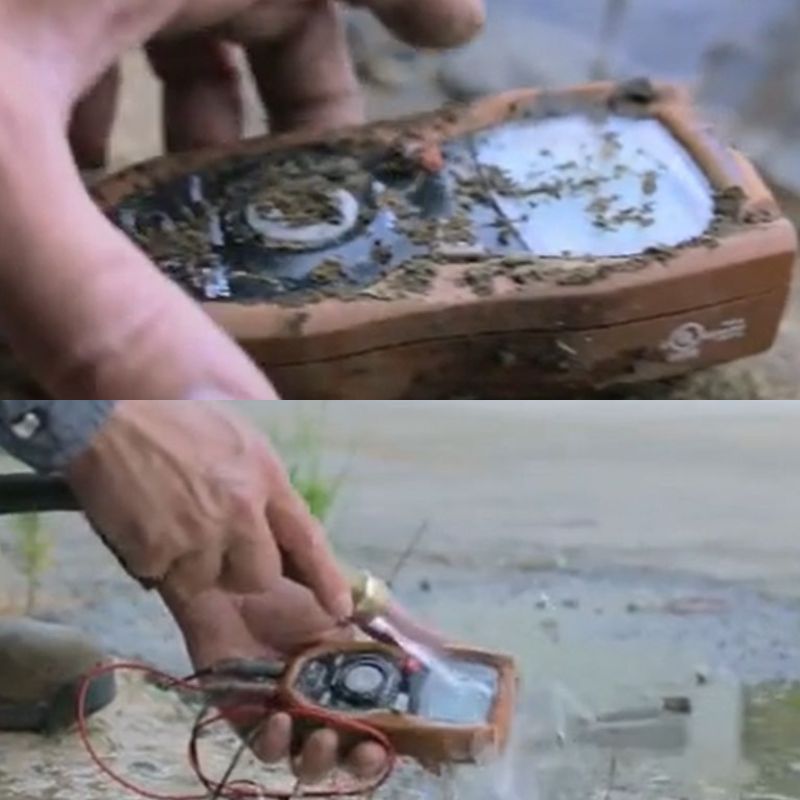

  • IP67 WATERPROOF/DUST TIGHT – For use in demanding environments (dry meter thoroughly before use)
  • SAFETY RATING - CAT IV 600V, UL listed

FUNCTIONRANGERESOLUTIONACCURACY
±(% OF READING DIGITS)
AC VOLTAGE
(50 to 60HZ)
400.0V0.1V±(1.0% 5)
600V1V
DC VOLTAGE400.0V0.1V±(1.0% 5)
600V1V
RESISTANCE400.0Ω0.1Ω±(1.0% 10) (1)
4.000kΩ±(1.0% 5)
40.00kΩ10Ω
400.0kΩ100Ω±(1.5% 10)
CONTINUITYAudible beeper if resistance is approx. 50Ω or less
32°F to 122°F (0°C to 50°C)
GENERAL SPECIFICATIONS
SAFETY RATINGCAT IV 600V, UL listed
ENCLOSUREIP67 waterproof and dust proof
AC RESPONSETrue RMS
AUTO POWER OFFAfter approx. 15 minutes of inactivity
DISPLAY4000 count backlit LCD
BATTERIESTwo AAA 1.5V batteries
OPERATING TEMPERATURE
MODEL #STOCK #UPC #DESCRIPTION
16030A63-01-91032886963407AUTOSELECTING CAT IV MULTIMETER
