FUNCTION	RANGE	RESOLUTION	ACCURACY ±(% OF READING DIGITS)
AC Voltage (50 to 60Hz)	4.000V	1mV	±(1.5% 10)
	40.00V	10mV
	400.0V	0.1V
	600V	1V
Low Z (AC Voltage)	4.000V	1mV	±(1.5% 10 digits)
	40.00V	10mV
	300.0V	0.1V
DC VOLTAGE	400.0mV	0.1mV	±(0.8% 8)
	4.000V	1mV	±(1.2% 2)
	40.00V	10mV
	400.0V	0.1V
	600V	1V	±(1.2% 5)
Low Z (DC Voltage)	400.0mV	0.1mV	±(0.8% 8)
	4.000V	1mV	±(1.2% 2)
	40.00V	10mV
	300.0V	0.1V
AC Current (50 to 60Hz)	4.000A	1mA	±(3.0% 5)
	10.00A	10mA
DC CURRENT	4.000A	1mA	±(2.5% 5)
	10.00A	10mA
RESISTANCE	400.0Ω	0.1Ω	±(1.2% 4)
	4.000kΩ	1Ω
	40.00kΩ	10Ω
	400.0kΩ	100Ω
	4.000MΩ	1kΩ	±(2.0% 20)
	40.00MΩ	10kΩ	±(5.0% 20)
CONTINUITY	Audible beeper if resistance is approx. 40Ω or less
DIODE TEST	Test current 1.5mA max., open circuit voltage 3V typical
CAPACITANCE	40.00nF	10pF	±(5.0% 50)
	400.0nF	100pF	±(3.0% 5)
	4.000µF	0.001µF
	40.00µF	0.01µF
	400.0µF	0.1µF	±(5.0% 10)
	4000µF	1µF
FREQUENCY	9.999Hz	0.001Hz	±(1.5% 5)
	99.99Hz	0.01Hz
	999.9Hz	0.1Hz	±(1.2% 3)
	9.999kHz	1Hz
	99.99kHz	10Hz
	999.9kHz	100Hz
	9.999MHz	1kHz	±(1.5% 14)
DUTY CYCLE	0.1 to 99.9%	0.10%	±(1.2% 2)
TEMPERATURE	-4°F to 1400°F	0.1°F	±(3.0% 9°F)
	-20°C to 760°C	0.1°C	±(3.0% 5°C)

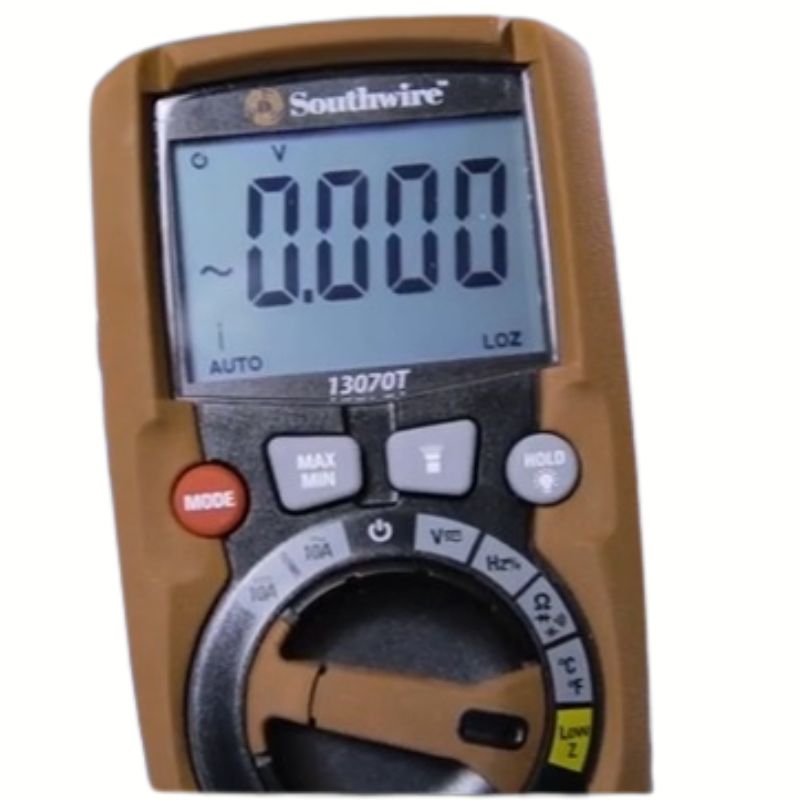

4000 count backlit LCD

GENERAL SPECIFICATIONS
SAFETY RATING	CAT Ill 600V, UL listed

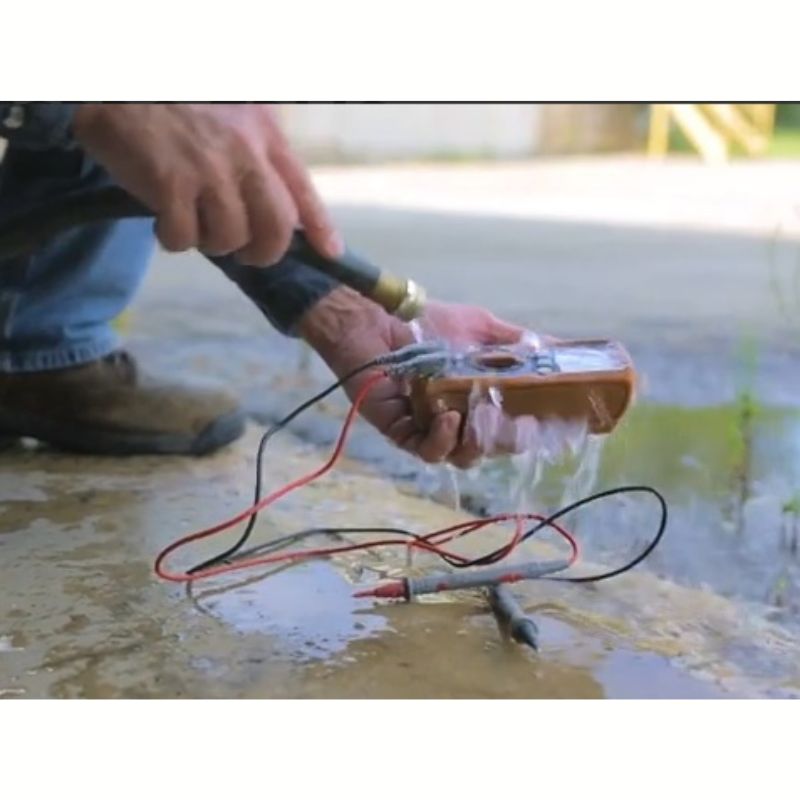

ENCLOSURE	IP67 waterproof and dust proof
AC RESPONSE	True RMS
AUTO POWER OFF	After approx. 15 minutes of inactivity
DISPLAY

MODEL #	STOCK #	UPC #	DESCRIPTION
13070T	63-01-50	032886963285	"ResidentialPRO™ TRUE RMS CAT III MULTIMETER"
