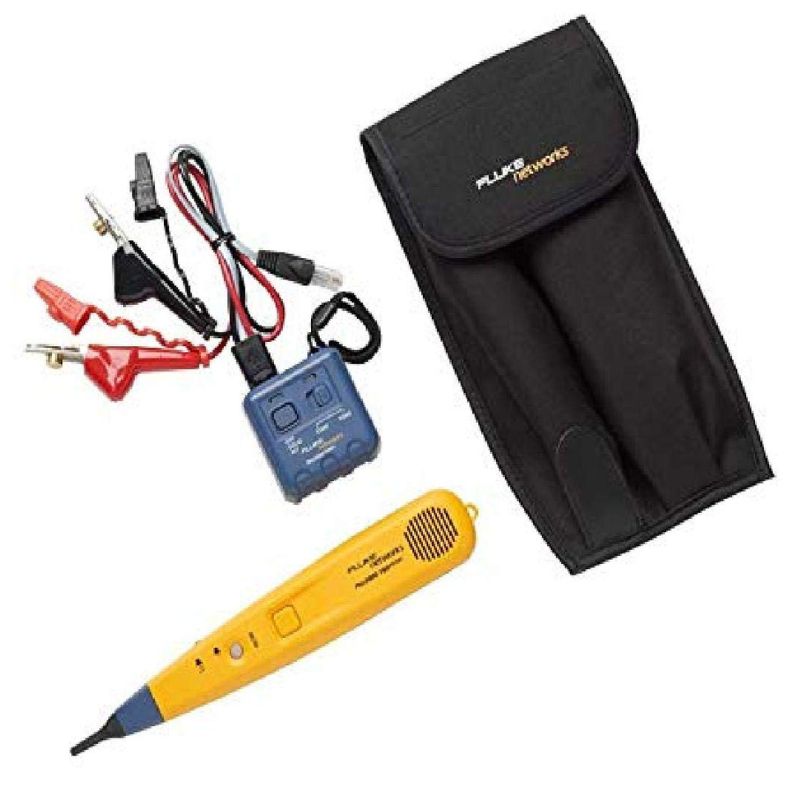

CABLE TRACER KIT FILTERED PROBE & TONE GENARATOR KIT 60HZ
Part No: PRO3000F60-KIT
Stock No: MTE-391
SKU No: 260792
Image is for illustrative purposes only. Please refer to product description.
Stock may not be available at all store locations. Inventory quantites can change without notice.
Filtered Probe & Tone Generator Kit, Network Cable Tester, 60Hz

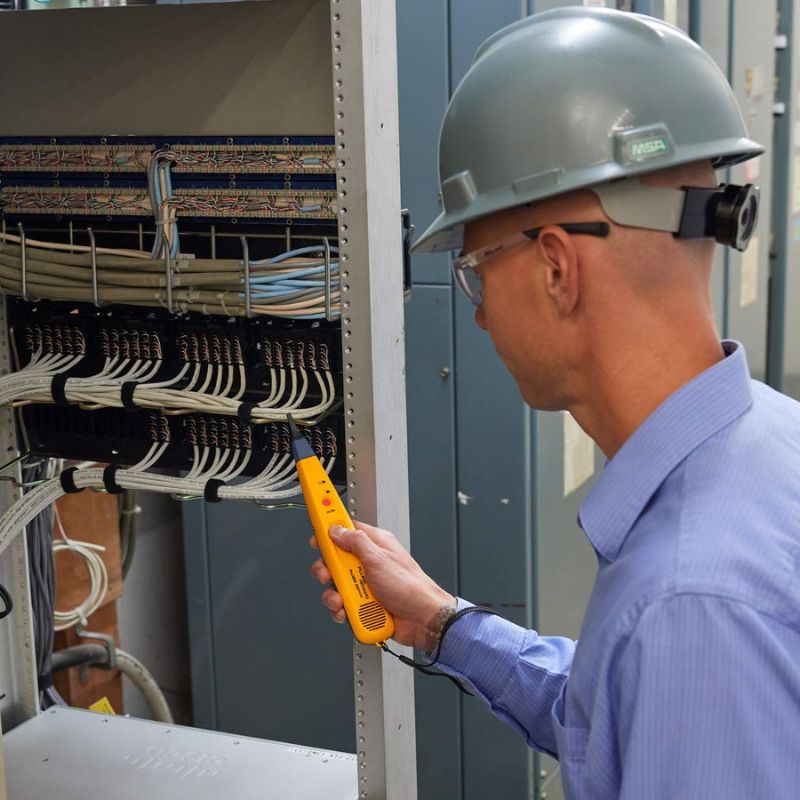

Signal Interference can be caused by multiple sources (I.e. power cables, fans,
lighting, etc.) and can make tracing communication cabling almost impossible.
The Pro3000F probe utilizes innovative filter technology to obstruct signal
interference to make tracing your cable easier, regardless of the work environment.
Depending on the region, signal interference may be at 60 Hz, which is most
common in North America, The Pro3000F60, which obstructs 60 Hz signals and its harmonics .

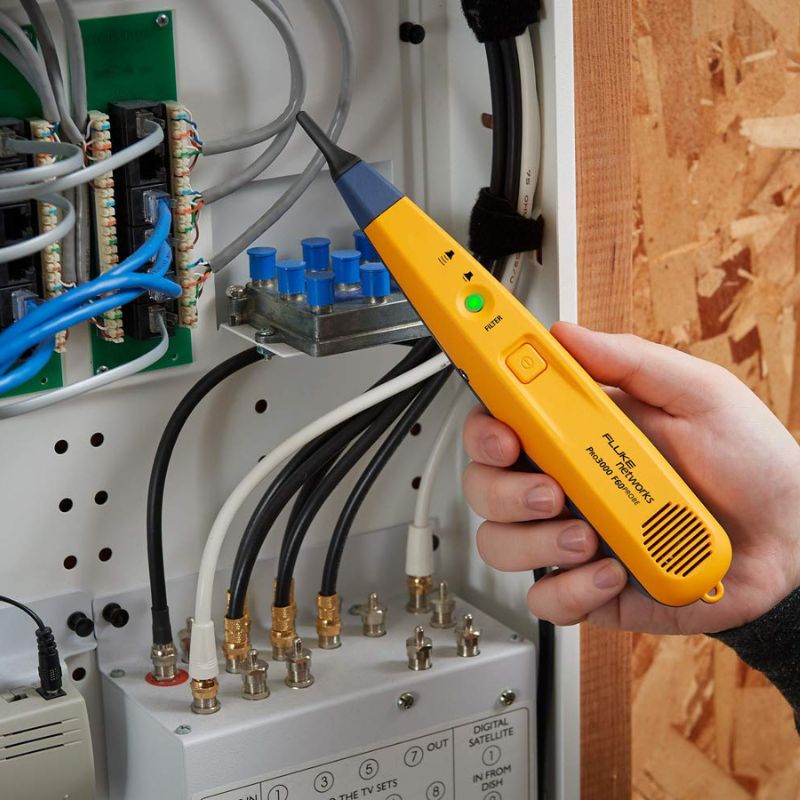

Technicians can also switch between filtered and unfiltered modes with a simple
push of a button. The probe’s loud speaker also allows for use in noisy locations and
for tracing cable through drywall, wood and other enclosures. The probe also touts
an auto-off feature that deactivates the probe after 5 minutes to conserve battery life.
The Pro3000F Filtered probe becomes even more useful when paired with the
Pro3000 Tone Generator. The Pro3000 Tone Generator allows for direct connection
to un-terminated wire using the angle bed of nails clips or terminated RJ-type jacks
with the male RJ-11 plug. The tone generators strong tone and SmartTone™ technology allows for precise pair identification up to 10 miles (16 km) away.
Pro3000 Analog Tone Generator and SmartTone™
Use the SmartTone™ capability of the Pro3000 Tone Generator to identify the right pair. Simply
short the selected pair at the near or far end to change the cadence of the tone generated. The
tone change you hear through the probe can help you identify the correct wire pair. SmartTone™
provides five distinct tones for exact pair identification.
Tone Generator features:
Send tone signal up to 10 miles on most cables
Line cord features angled bed-of-nails clips and a rugged RJ-11 plug for direct access to
phone and data jacks without adapters
External switch allows selection of solid or alternating tone options, indicated with solid or
Line polarity confirmation

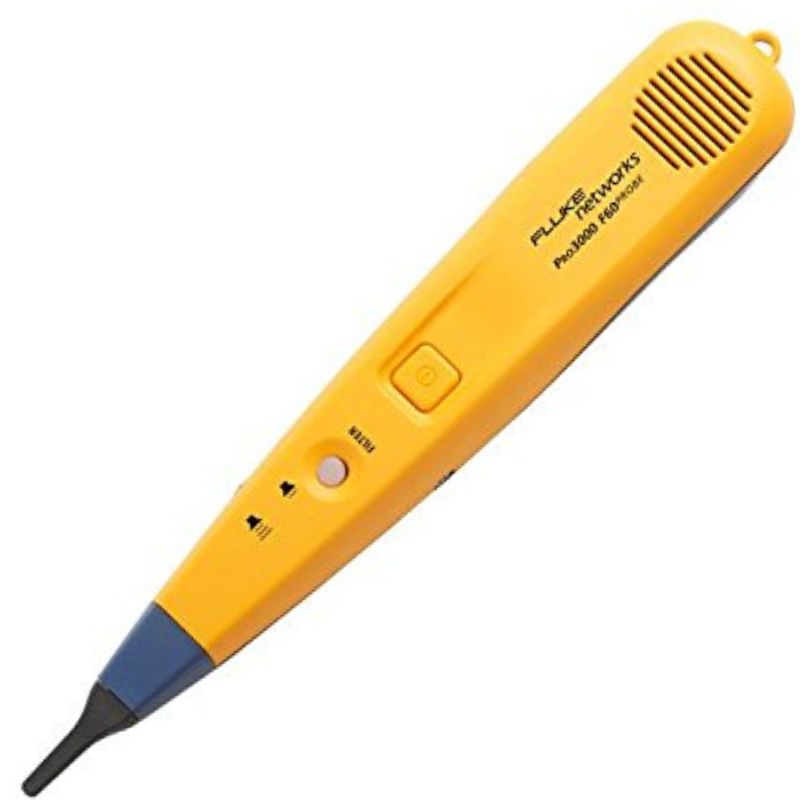

Pro3000F Filtered Probe features:
Innovative filtered probe obstructs signal of 60 Hz or 50 Hz external interference
Switch between filtered and unfiltered modes with one button press.
Tone and trace wire on non-active networks
Auto-off capability extends battery life
Loud probe speaker is audible in noisy locations
Pro 3000 Toner Specifications
Slide Switch selects Continuity or Tone Mode
Push button switch selects SOLID, ALT, or OFF
Tone mode LED
Solid Frequency 1000 Hz nominal
Alternating Frequency 1000/1500 Hz nominal
Over Voltage Protection/td> 60 Vdc in Toner/Polarity Mode
Output Power in Tone Mode 8 dbm into 600 ohms
Output Voltage Level in Continuity Mode 8 Vdc with fresh battery
Battery 9V alkaline
Temperature Operating: -20°C to 60°C, Storage: -40° to 70° C
Dimensions 2.7 in. x 2.4 in. x 1.4 in. (6.9 cm x 6.1 cm x 3.6 cm)
Pro3000F Filtered Probe Specifications
ON/OFF button (Push 1 second to activate, Press to turn off, Auto-off after 5 minutes)
Filtered/Unfiltered Mode Button with LED (Green = Filtered, Red = Unfiltered)
3.5 mm earphone jack
Frequencies filtered Pro3000F60 Probe: 60 Hz and its harmonic frequencies
Pro3000F50 Probe: 50 Hz and its harmonic frequencies
Battery 9V alkaline
Temperature Operating: -20° C to 60° C, Storage: -40° to 70° C
Dimensions 9.8 in. x 1.6 in. x 1.3 in. (24.9 cm x 4.1 cm x 3.3 cm)
