JOYSTICK MODULE 3.3-5V 2-AXIS ARDUINO COMPATABLE
Part No: KY-023
Manufacturer:
Stock No: 1814-ED2
SKU No: 262361
Stock Number: 1814-ED2    $4.95
MODULES COMPATIBLE WITH ARDUINO 1507
MODULES COMPATIBLE WITH ARDUINO 1508
MODULES COMPATIBLE WITH ARDUINO 1509
MODULES COMPATIBLE WITH ARDUINO 1510

Image is for illustrative purposes only. Please refer to product description.

$4.95 CAD
Stock may not be available at all store locations. Inventory quantites can change without notice.
Burlington4
Cambridge7
Markham5
Mississauga5
Scarborough3
Vaughan6
Warehouse 8

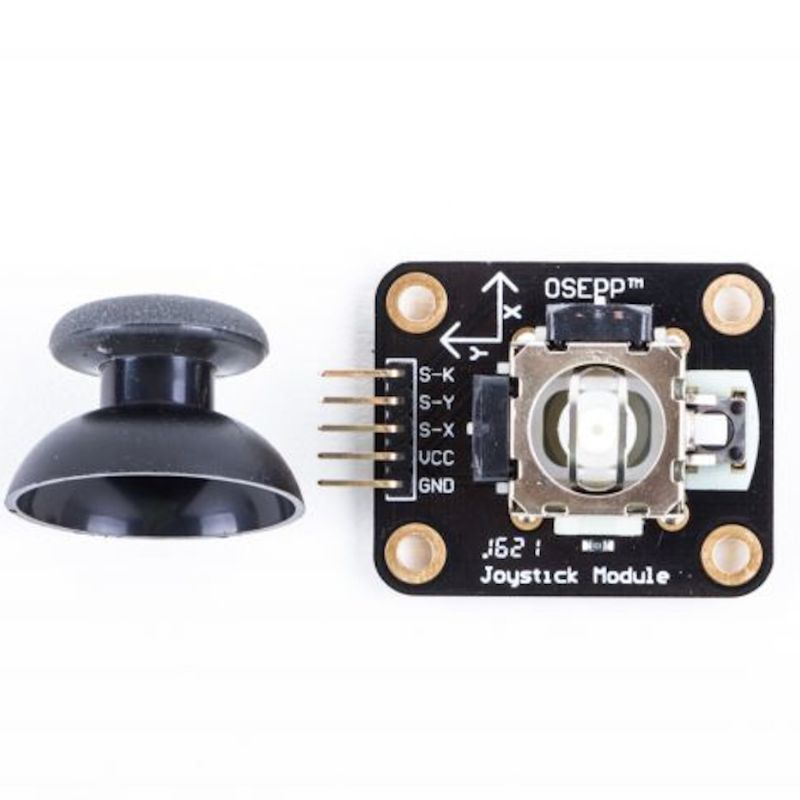

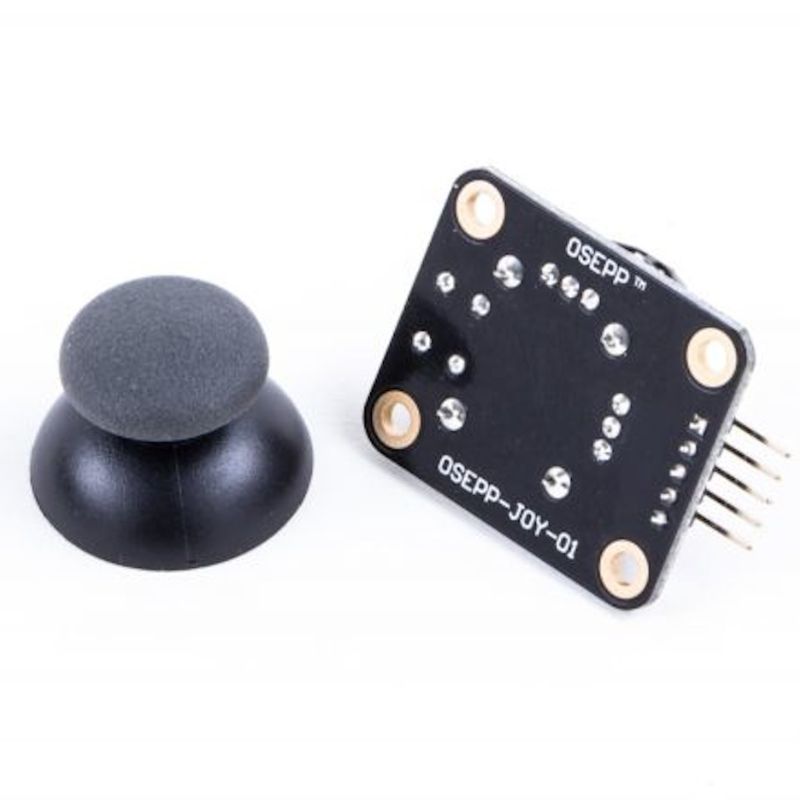

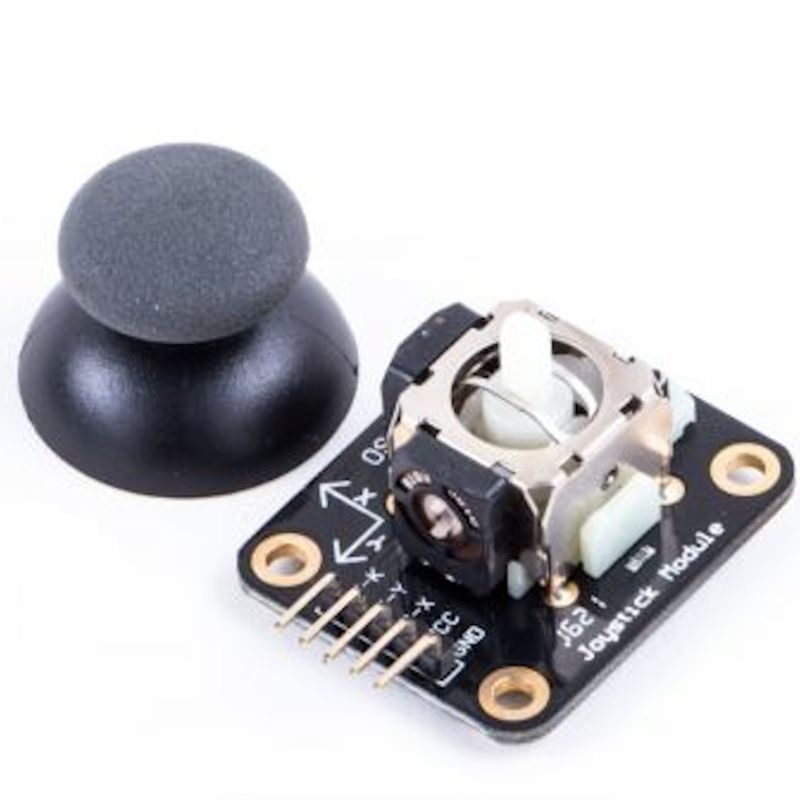

Two-axis key joystick sensor module by the use of PS2 rocker potentiometer, with (X, Y) 2-axis analog output, (Z) 1 button digital output. With the Arduino sensor expansion board can produce remote control and other interactive works. In addition, this product in order to allow customers to more easily with the arduino expansion board and other standard interfaces, in the design of the X, Y, Z axis of the circuit are separate leads, the user can use 3-pin ARDUINO special line really plug into the expansion board . Product performance: 1. Input voltage range: DC 3.3V to 5V 2. Output signal: the module special two-way analog output and a digital output interface, the output value corresponding to (X, Y) bi-axial offset, the type of analog; keys that the user press the Z axis, Its type is digital switch. 3. Arduino controller can be programmed, the sensor expansion board plug, complete with creative remote interactive works. 4. Cross joystick is a bi-directional 10K resistor, with the rocker in different directions, the tap resistance with the change. This module uses 5V power supply, the original state of X, Y read voltage of 2.5V or so, when pressed with the arrow direction, the read voltage value increases with the maximum to 5V; arrows in the opposite direction to press, read the voltage decreases , The minimum is 0V.
