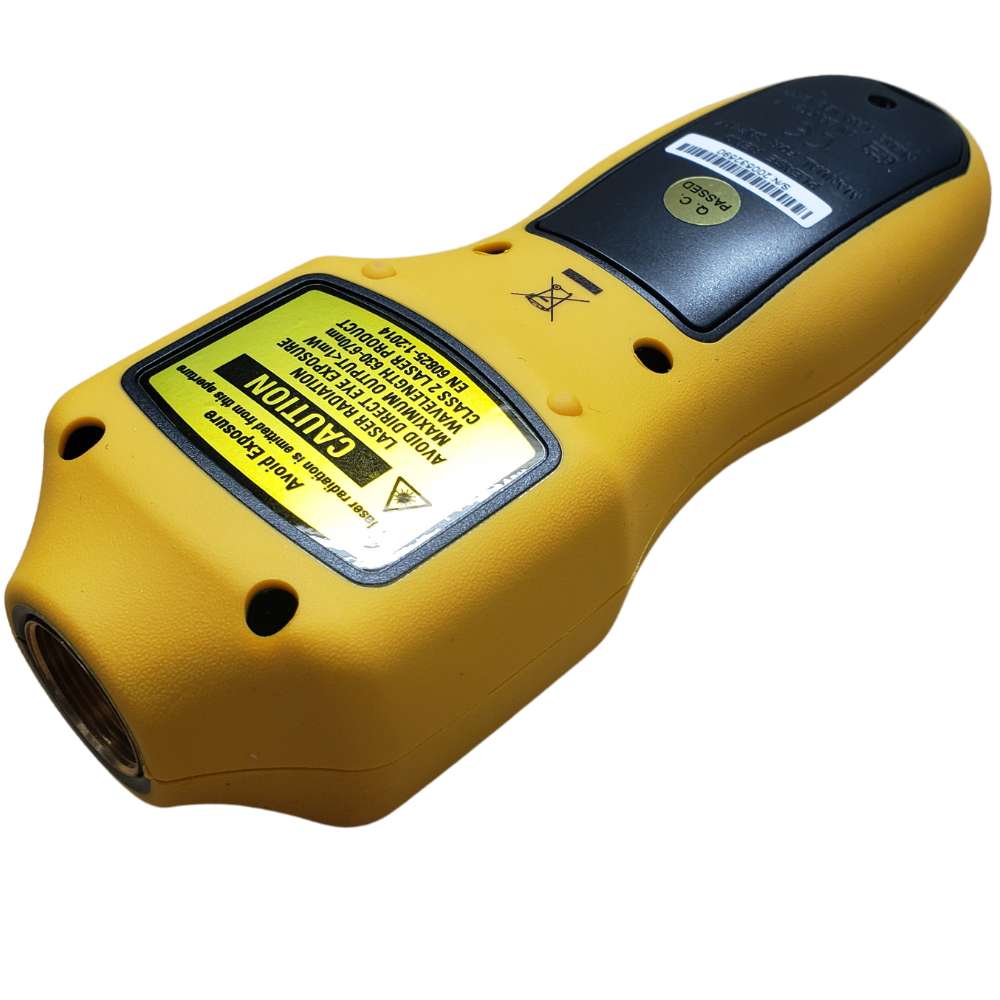

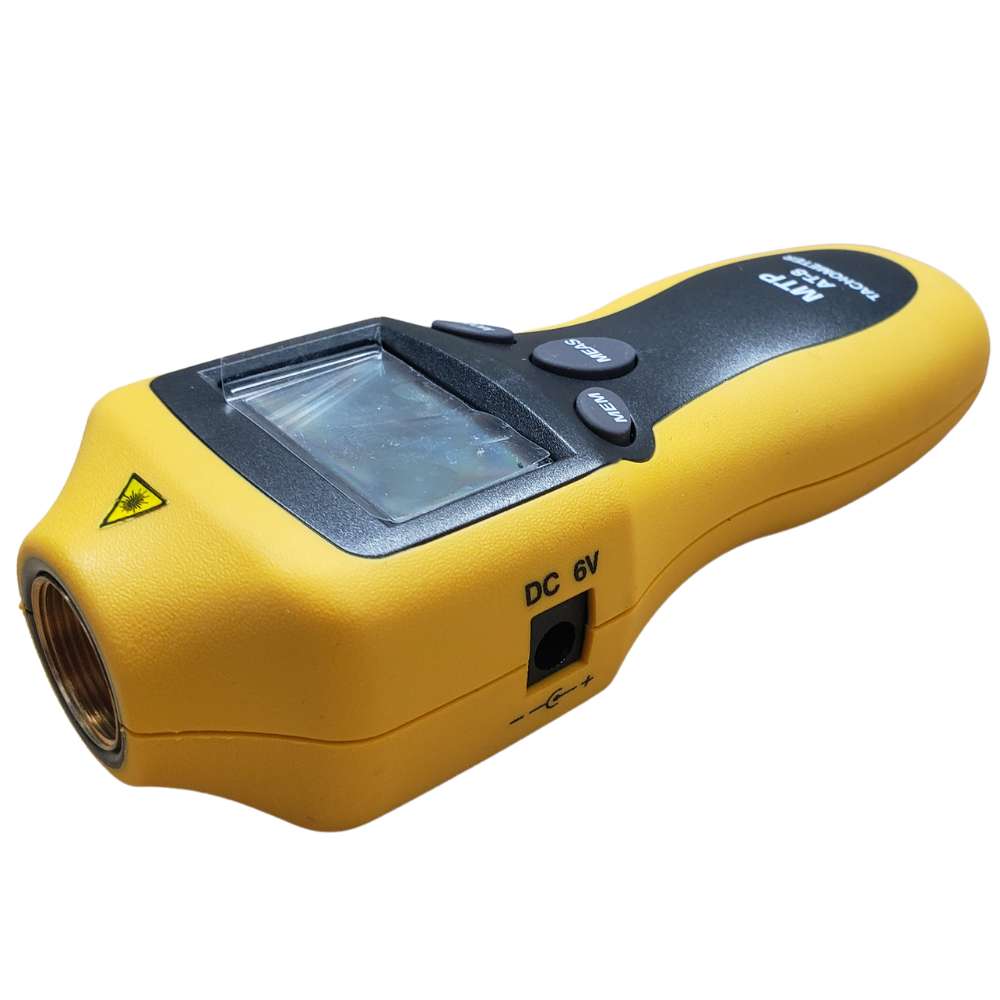

DIGITAL TACHOMETER 1 TO 99 999 RPM RES-1RPM D-50-500MM MEM-40

Part No: MTP AT-8

Manufacturer: MTP Instruments Inc.

Stock No: MEJ-111

SKU No: 263518

Image is for illustrative purposes only. Please refer to product description.

$129.95 CAD

** International Order Shipping Charges Apply - Read about it here.

Stock may not be available at all store locations. Inventory quantites can change without notice.

	Burlington	2
	Markham	2
	Mississauga	3
	Warehouse	1

Details

Introduction

Congratulations on your purchase of our Contact/Non-Contact Tachometer, model MTP AT-8.

Careful use of this meter will provide years of reliable service.

1. Features

 The digital tachometer provides fast and accurate contact and non-contact RPM and

surface speed measurements of rotating objects

 Measurement types : Rotation Speed (RPM/rpm), Total Revolutions (REV), Frequency

(Hz), Surface Speed (m/min, in/min, ft/min, yd/min and Length (m, in, ft, yd)

 Offers a wide measurement range and high resolution

 Large easy to read LCD display with backlight

 40 readings memory: 10 selectable MAX measurements, 10 selectable MIN

measurement, 10 selectable AVG measurements, 10 selectable DATA measurement

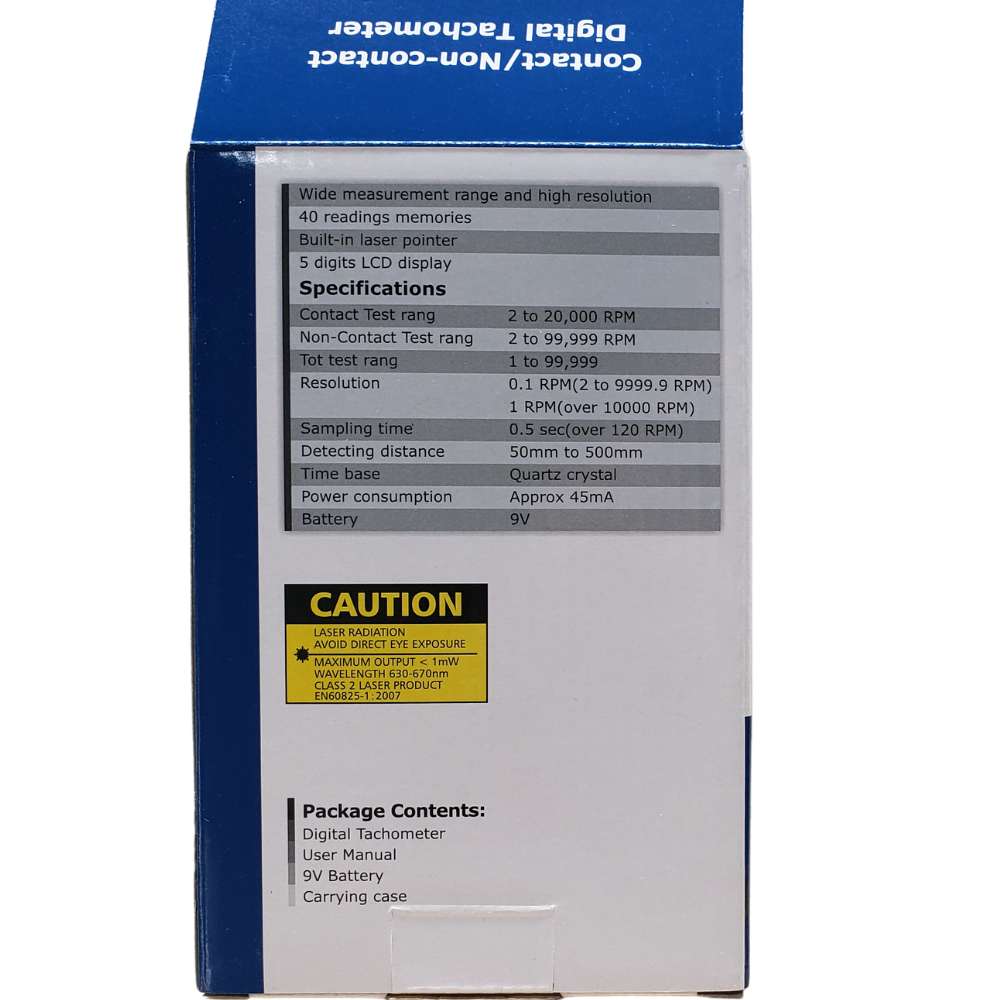

Specifications

 Display:5 digits LCD display

 Accuracy :(0.05% + 1 digit)

 Contact Test Range :2 to 20,000 RPM

 Non- Contact Test Range:2 to 99,999 RPM

 Total Test Range :1 to 99,999

 Resolution :0.1 RPM (2 to 9999,9 RPM), 1 RPM (over 10000 RPM)

 Sampling Time :0.5 sec. (over 120 RPM)

 Detecting Distance :50mm to 500mm.

 Time Base :Quartz crystal

 Power Consumption:Approx. 45mA

 Power Supply:9V battery

 Operation Temperature:0ºC to 50ºC (32 to 122ºF)

 Weight:160g

 Dimensions:160 x 60 x 42

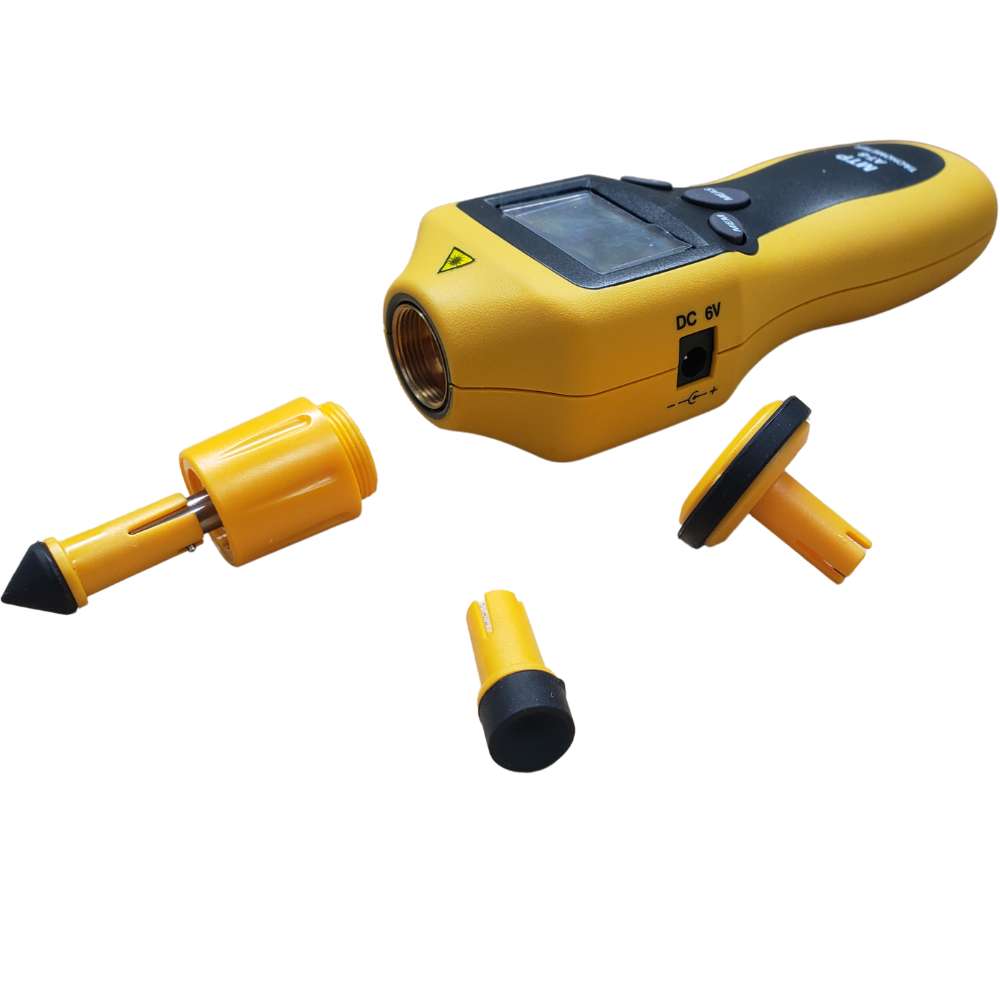

 Accessories:9V battery, carrying case, contact adapter (funnel, cone, measuring wheel). x03 reflective strips, manual
