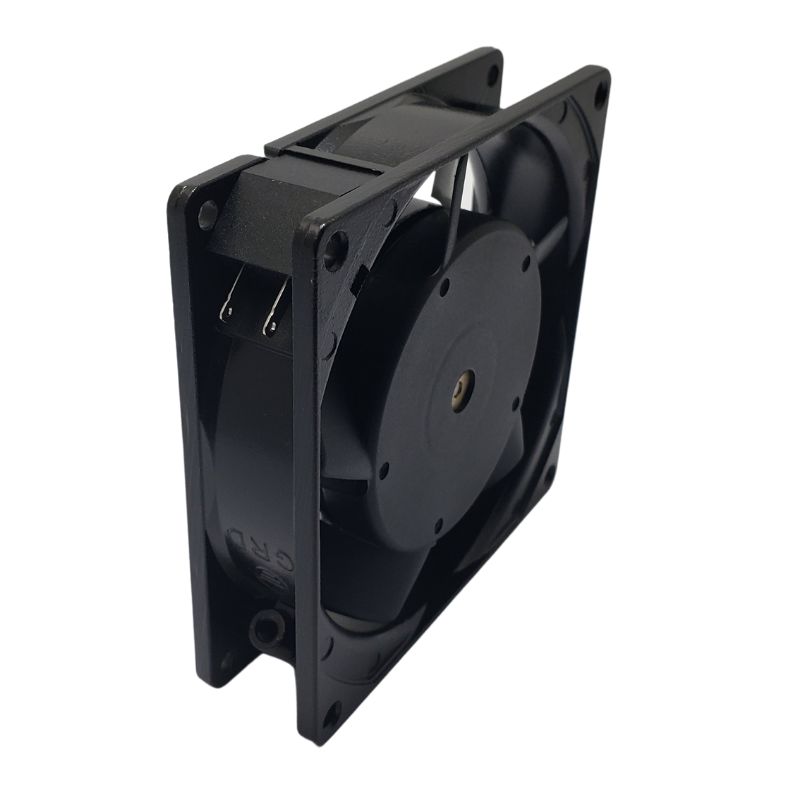

FAN AC 230V 3.6X1IN 80MA 16/14W TABS 33/40CFM BALL BEARING AXIAL
Part No: CFB2309225HB
Manufacturer: Circuit Test
Stock No: JTAG-2125
SKU No: 263590
.JPG.jpg)
Image is for illustrative purposes only. Please refer to product description.
$34.95 CAD
Stock may not be available at all store locations. Inventory quantites can change without notice.
| Burlington | 2 | |
| Cambridge | 1 | |
| Markham | 3 | |
| Mississauga | 1 | |
| Scarborough | 3 | |
| Vaughan | 2 | |
| Warehouse | 2 |
- Dimensions: 92 x 92 x 25mm (3.62 x 3.62 x 1")
- Mounting Center: 82mm (3.25")
- Rating: 230VAC
- Current: 0.08/0.07 Amps
- Power: 16/14 W
- Frequency: 50/60Hz
- Bearing: Ball
- Speed: 2500/3000 RPM
- Noise: 32/36 dBA
- Max Air: 33/40 CFM
- Max Pressure: 4.2/6.1 mmH2O
- Temperature: -40 to +70 C
- Hours: 40000
- Termination: 1/8" Terminals
- Weight: 280g
- Impeller: Glass fibre reinforced plastic 94V-0 PBT
- Frame: Die-cast aluminum
