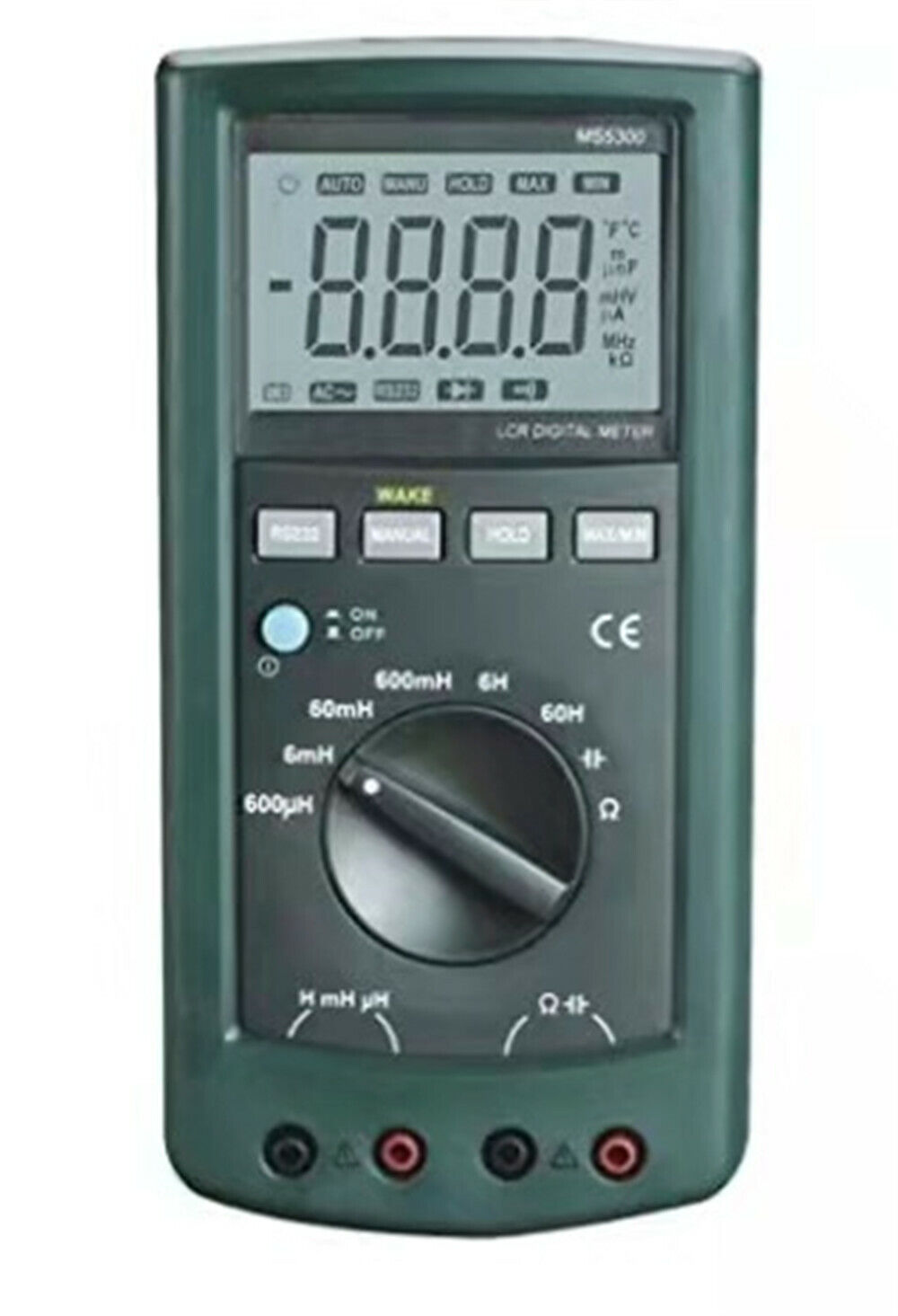

The Mastech MS5300 is an auto/manual-ranging LCR meter with RS232 interface, which offers you the capability of connecting the meter with your PC for data logging, plotting and recording. The MS6300 provides a wide range of measurements

---

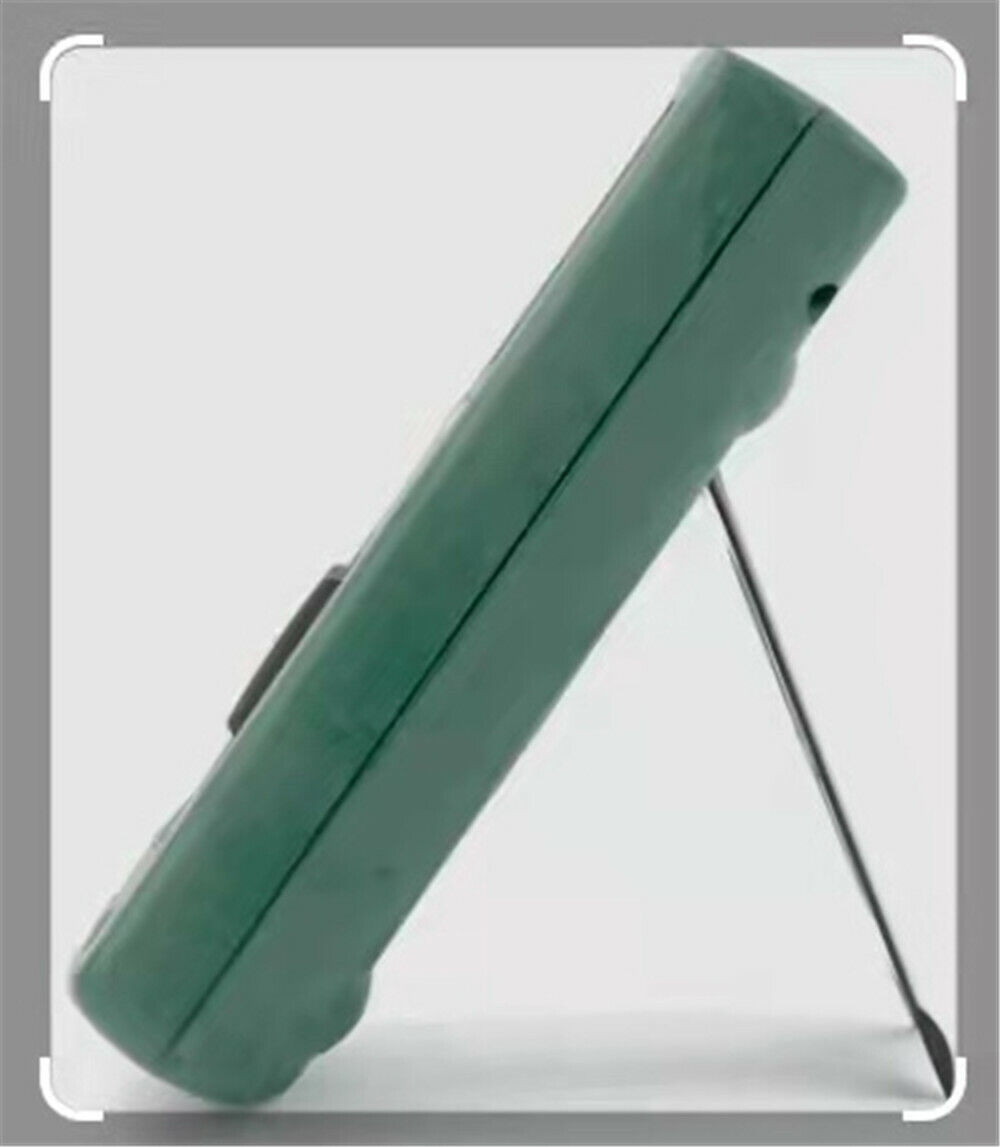

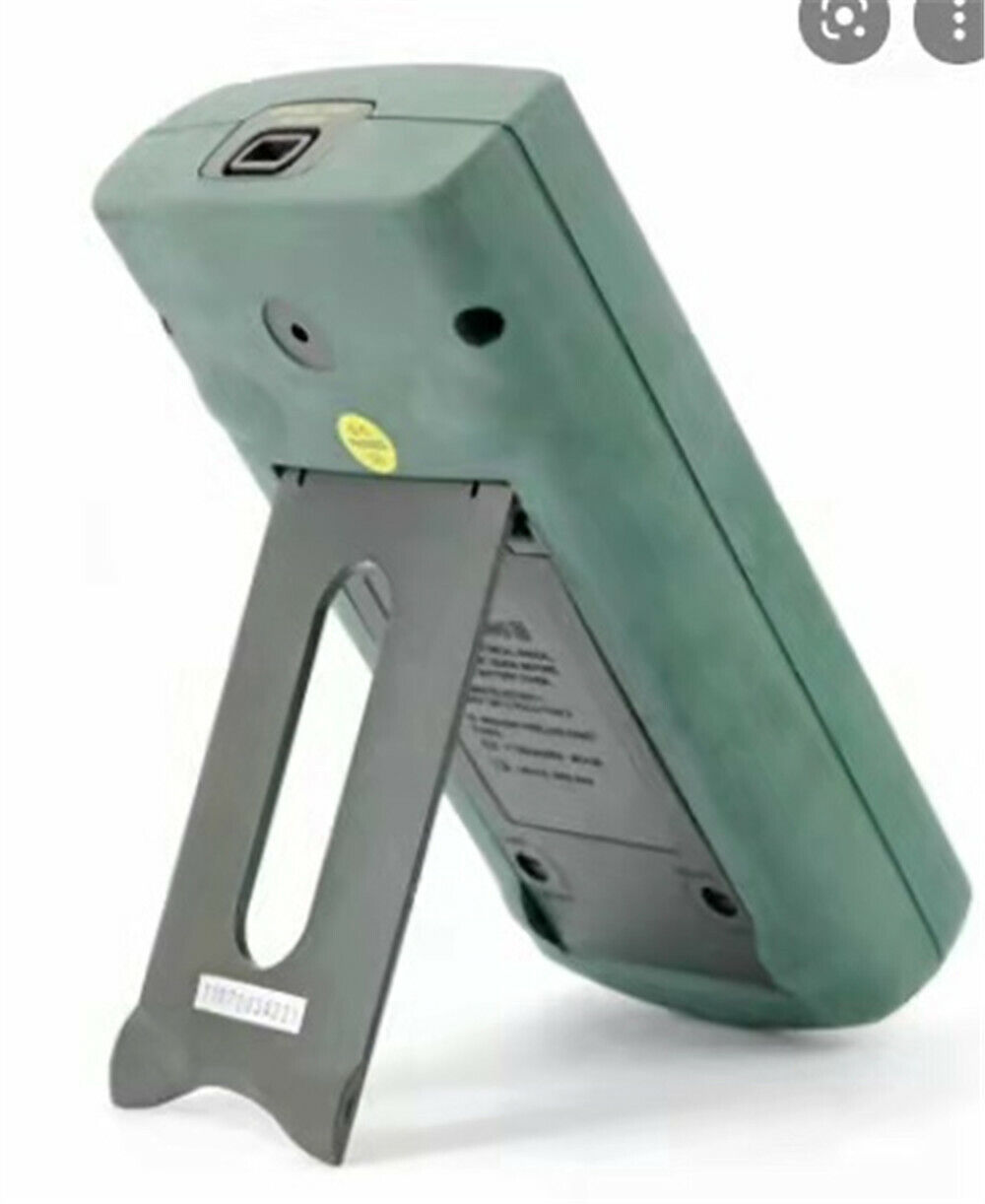

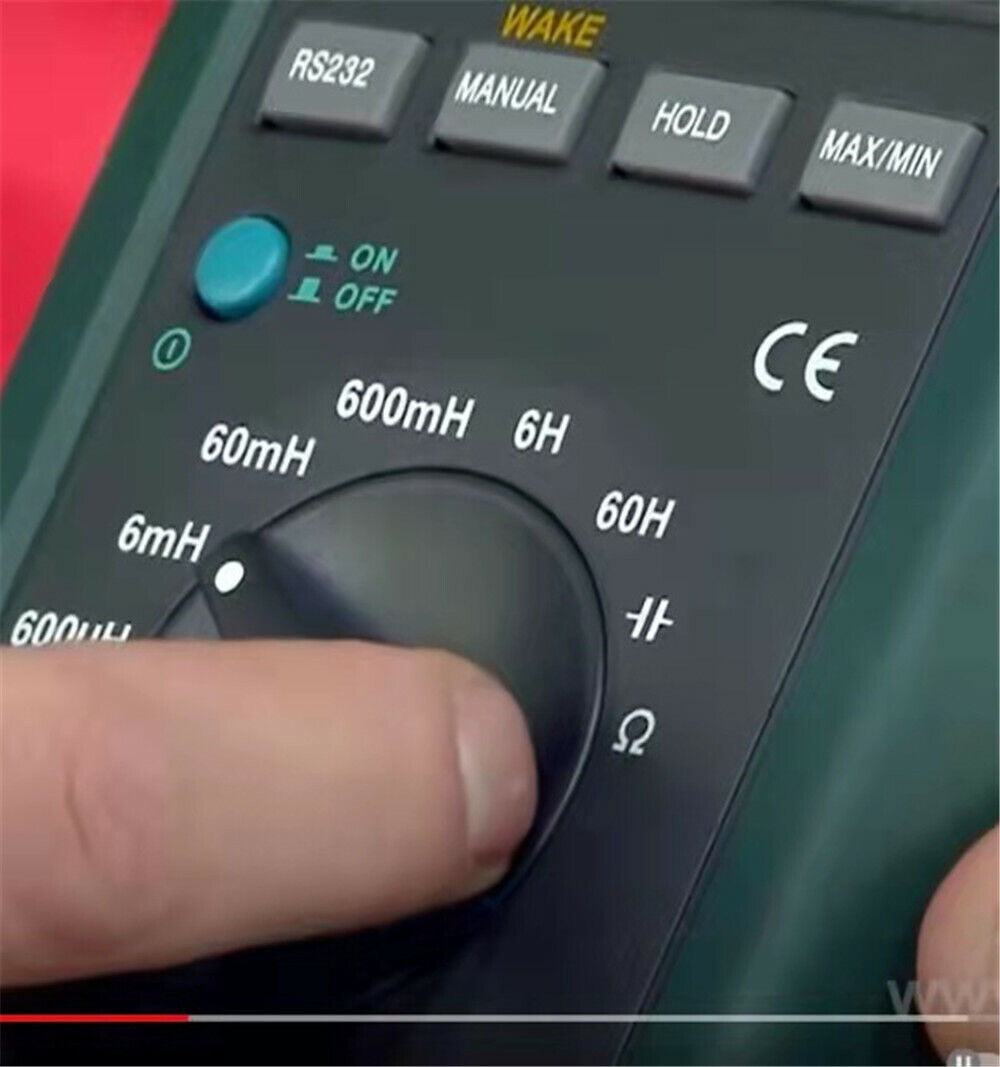

Conforms to international safety standard IEC1010-1 Rubber holster offers excellent protection Real-time data transfer to PC through a full isolated optical RS232C interface Tilt back-stand SMT application Auto/manual range Data hold MAX /MIN. value measurement Auto power off (can be disabled) Specifications: Resistance: 600/6k/60k/600k/6MΩ±1.0%, 60MΩ±1.5% Capacitance: 6nF±2.0%, 60n/600n/6μF±1.0%, 60μ/600μ/6mF±1.5% Inductance: 600μH±2.5%; 6m/60m/600mH±1.5%; 6H:<4H ±2.8% >4H ±5.0%; 60H:<40H ±3.5% >40H Unspecified Power: 6 × 1.5V (AAA Type) Size: 200 mm × 100 mm × 40 mm Weight: Approx. 550g (including battery)
