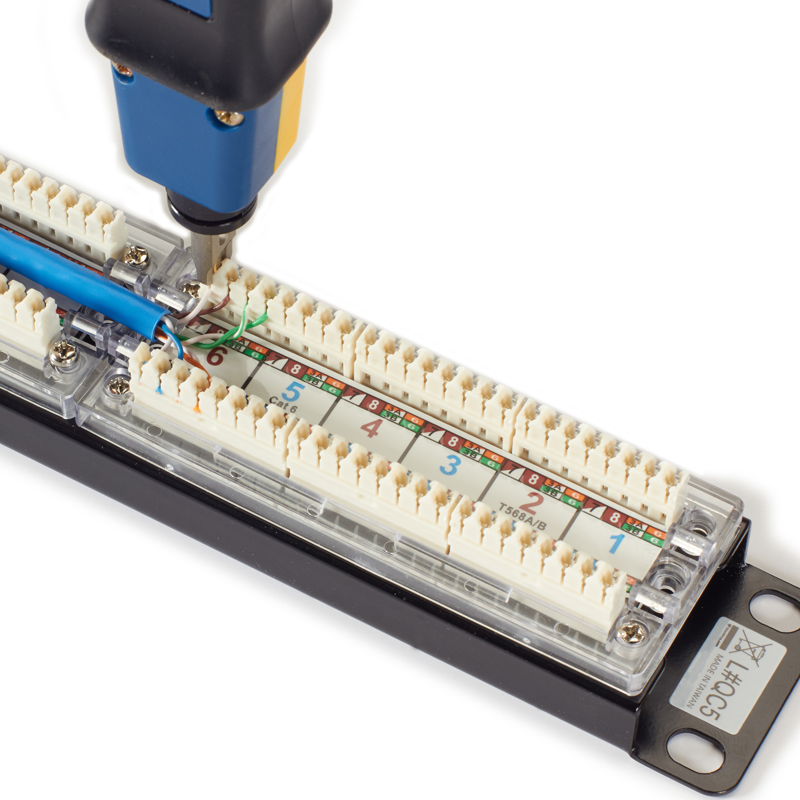

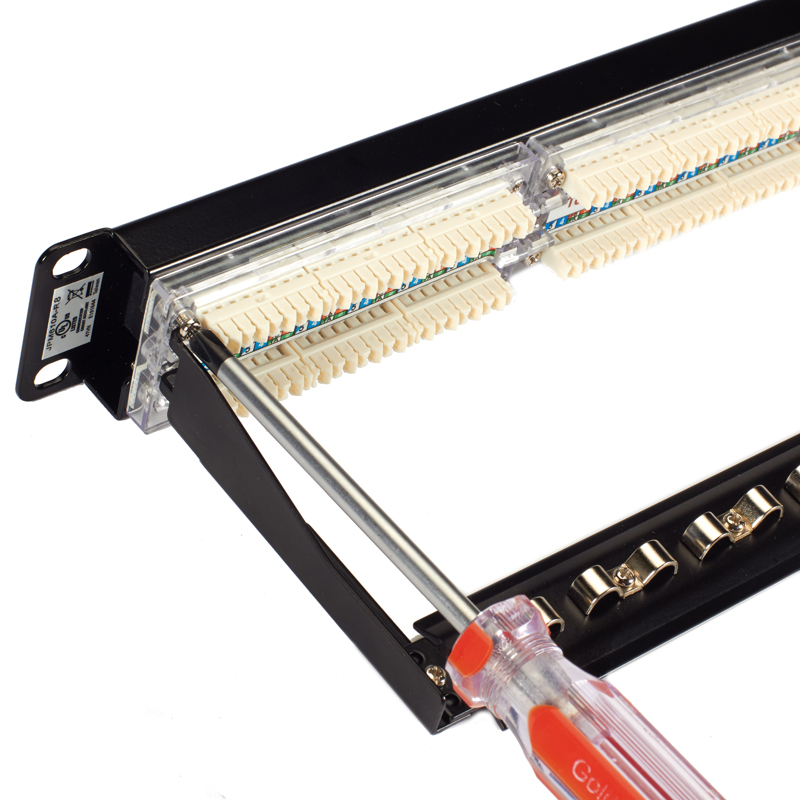

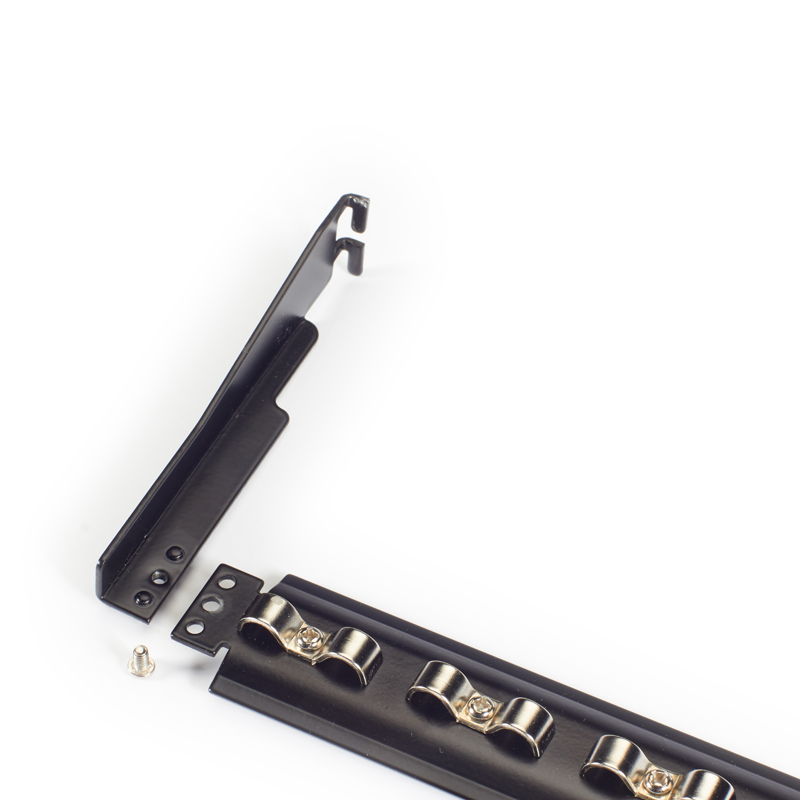

GigaTrue® CAT6 Patch Panel - 1U, Unshielded, 24-Port Component level provides better performance and stability in the overall channel Includes cable management bars that make organization easier Designed for use in our ETL-Verified GigaTrue® channel Meets or exceeds ANSI/TIA/EIA-568-C CAT6 component performance Component level tested panel that provides better performance and stability in the overall channel; the panel by itself can pass CAT6. Includes cable management bars that make organization easier. Meets or exceeds ANSI/TIA/EIA-568-C.2 Category 6 component performance specifications. Tested for NEXT, Power Sum NEXT, FEXT, Return Loss and attenuation to 250 MHz. Universal wiring - panel is supplied with labeling for both T568A and T568B. Paired punchdown sequence enables pair twist within 1-2" of termination. Redesigned IDC 110 block features peaks to make lacing cable easier. Rolled-edge construction provides superior panel rigidity to eliminate flex during termination. Includes cable ties and mounting hardware. Product Includes: CAT6 Panel Cables Ties (4) 10-32 (4) 12-24 Cuphead Screws Stuffer Caps (1) Cable Support Bar Manual Product works with: GigaTrue 6 Patch Cable, 4-Pair (EVNSL641, etc.) GigaTrue CAT6 Jacks (FM630-R2–FM640-R2) GigaTrue2 CAT6 Jacks (FMT630-R2–FMT640-R2)

---

Connectors (24) RJ45 Dimensions 1.75"H (1U) x 19"W x 1.25"D (4.4 x 48.3 x 3.2 cm) Replaces JPM610A-R7 Weight 1.5 lb. (0.680 kg)
