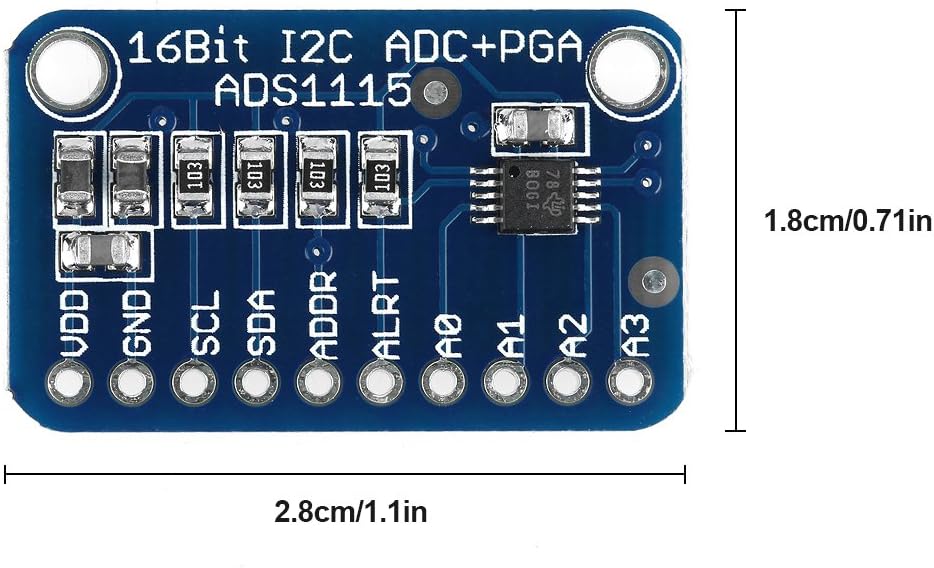

Model name : 16-Bit I2C High Precision ADC Development Board Connectivity technology : I2C Included components : 1 module Operating system : Raspberry Pi OS Wireless communication standard : 802.11b Compatible devices : Micro-controller, Arduino, Raspberry Pi models RAM memory technology : DDR3 Higher Precision: For micro-controllers without an analog-to-digital converter or when you want a higher-precision ADC, the provides 16-bit precision at 860 samples/second over I2C Tiny Chip: The chip's fairly small so it comes on a breakout board with ferrites to keep the AVDD and AGND quiet. Interfacing is done via I2C. The address can be changed to one of four options, so you can have up to 4 's connected on a single 2-wire I2C bus for 16 single ended inputs Configured Channels: The chip can be configured as 4 single-ended input channels, or two differential channels. This board/chip uses I2C 7-bit addresses between 0x48-0x4B, selectable with jumpers Internal Configuration: It includes a programmable gain amplifier, up to x16, to help boost up smaller single/differential to the full range. Built in four single-ended or two differential inputs, programmable comparator, internal low-drift voltage reference, internal oscillator, internal PGA 16 Bit Converter: We like this ADC because it can run from 2V to 5V power/logic, can measure a large range of and its super easy to use. It is a great general purpose 16 bit converter

---

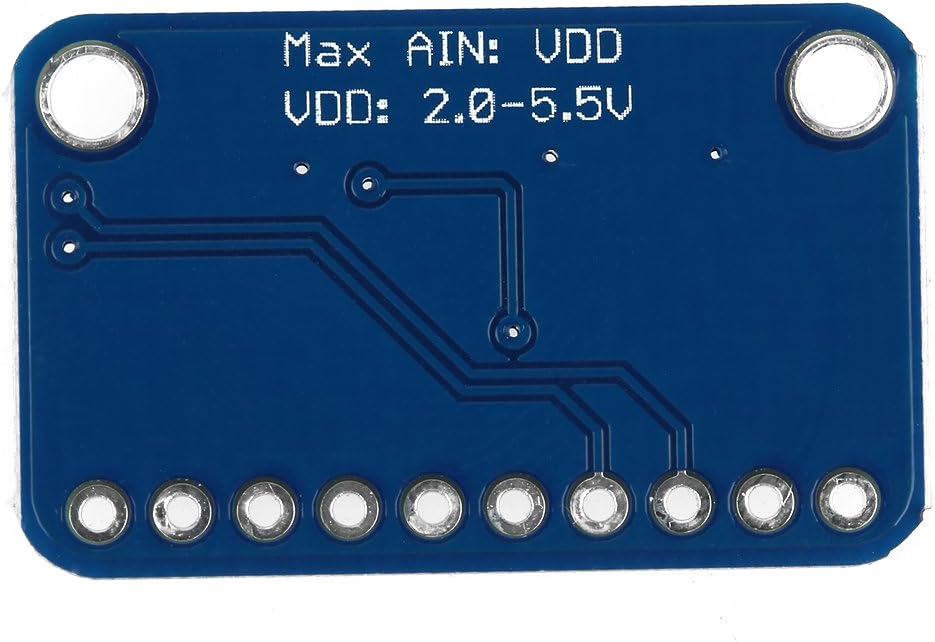

Wide Supply Range: 2.0v to 5.5v; Low Current Consumption: Continuous Mode: Only 150uA Single- Mode: Auto Shut-Down; Programmable Data Rate: 8sps to 860sps; I2C Interface: Pin-selectable addresses; Size: 2.8*1.8cm/1.1*0.7in
