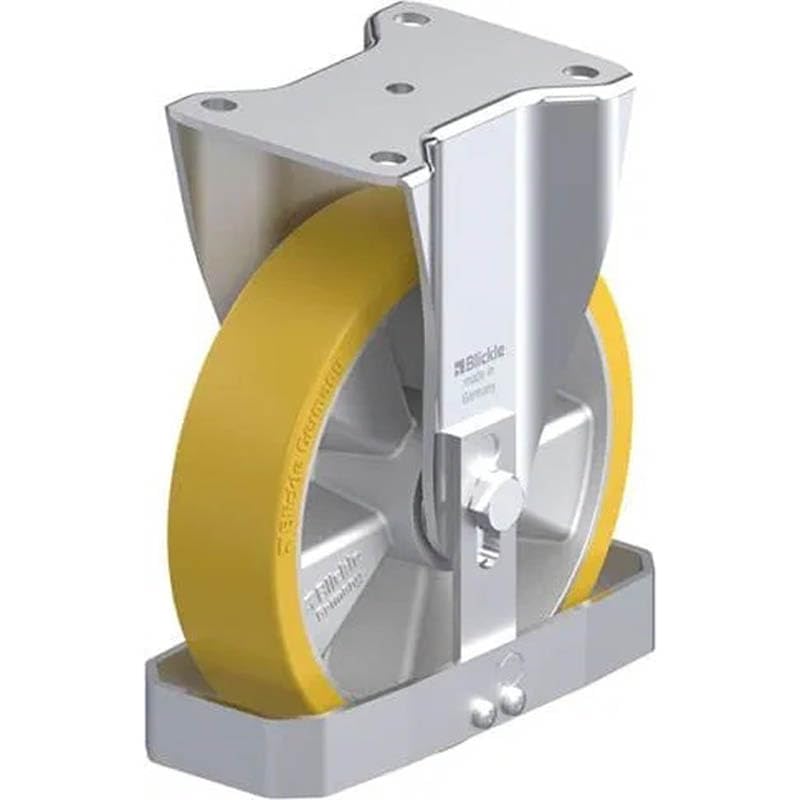

Heavy-Duty Fixed Caster, 200 mm Extrathane Polyurethane Wheel, Aluminum Core, Steel Foot Guard, Ball Bearing, 800 kg Capacity, Plate Mount, 747750/BH-ALTH 200K-FS Pressed steel fixed castor, heavy duty design, with top plate fitting, steel foot guard, heavy duty wheel, with Blickle Extrathane polyurethane tread, with aluminium wheel centre Bracket: BH series pressed steel, zinc-plated, blue-passivated, Cr6-free heavy fork and top plate Wheel: ALTH series tread: high-quality polyurethane elastomer Blickle Extrathane, hardness 92 Shore A, colour light brown, non-marking, non-staining wheel centre: die-cast aluminium, colour silver grey Other features: high chemical resistance to many aggressive substances operating temperature: -20 °C to +70 °C, temporarily up to +90 °C, reduced load capacity over +40 °C 800 KG DYNAMIC LOAD CAPACITY: Rated for loads up to 800 kg / 1,764 lb per caster at 4 km/h, with a static load capacity of 2,000 kg / 4,409 lb, making it suitable for heavy machinery, industrial carts and material-handling equipment. ALUMINUM WHEEL CORE AND BALL BEARING: Heavy-duty wheel features a silver-grey die-cast aluminum centre and precision ball bearing for smooth rolling under demanding industrial loads INDUSTRIAL MOUNTING DIMENSIONS: Wheel measures 200 mm × 50 mm with a total caster height of 245 mm. Mounting plate measures 140 × 110 mm, with 105 × 75–80 mm bolt-hole spacing and 11 mm

---
