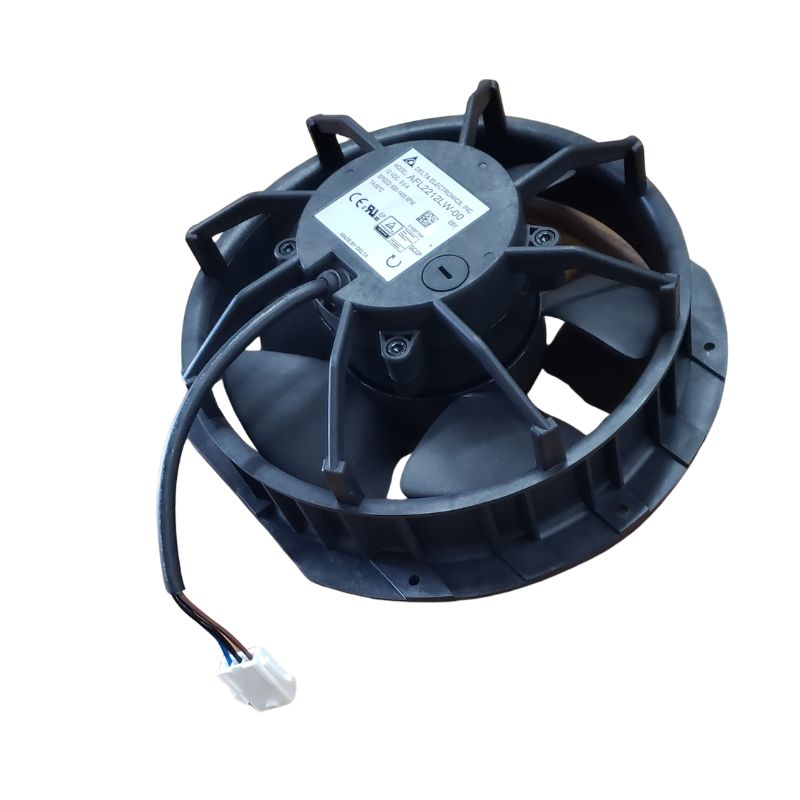

The Delta Electronics AFL2212LW-00 is a low-profile, variable-speed brushless axial fan designed for commercial refrigeration, appliance ventilation and equipment-cooling applications. It operates from a 12V DC supply and provides efficient airflow with PWM speed control, ball bearings and an IP56-rated enclosure. Fan Tubeaxial 12VDC Rectangular/Rounded - 203mm L x 195mm H Ball 170.1 CFM (4.76m³/min) 3 Wire Leads Specifications Manufacturer: Delta Electronics Model/part number: AFL2212LW-00 Product type: EC brushless axial cooling fan Rated voltage: 12V DC Rated current: 0.6A—based on AFL2212LW-00-labelled units Speed range: 600–1400 RPM Maximum airflow: Up to 170.1 CFM Maximum power: Approximately 7.2W based on 12V × 0.6A Fan diameter: Approximately 222 mm Depth: Approximately 80 mm Bearing type: Ball bearing Speed control: PWM Connection: Wire leads Ingress protection: IP56 Operating temperature: −40°C to +60°C Frame material: Plastic Impeller material: Plastic Typical applications: Commercial refrigeration, refrigerator airflow, ventilation and equipment cooling Short description Delta AFL2212LW-00 variable-speed 12V DC brushless axial fan featuring PWM control, ball bearings, 600–1400 RPM operation and an IP56-rated housing.

---
