STEPPER MOTOR DRIVER 5V ULN2003 WITH STEPPER MOTOR 5VDC - WPI401

A small and versatile motor and driver set. This 5 VOLTS DC stepper motor controlled by the ULN2003 driver can be used with any Arduino® or compatible boards via jumper leads. Four-phase LED indicates the status of the stepper motor.

Features

with LED step indicators

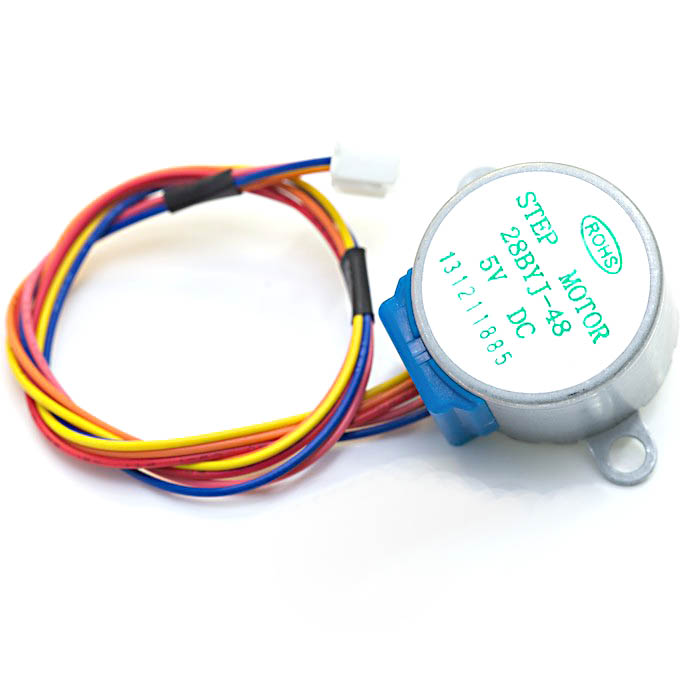

included: 5 Volts DC stepper motor

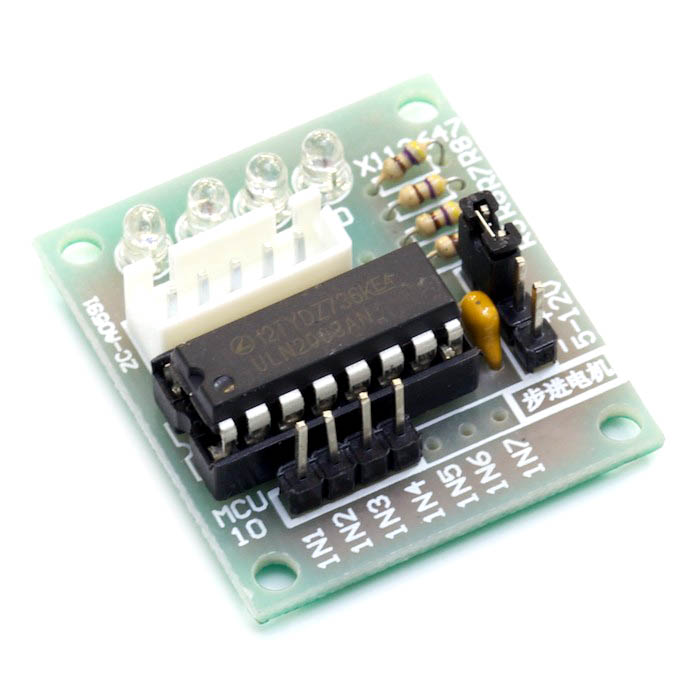

ULN2003 controller module
cable

Specifications

operating voltage: 5 Volts DC
steps / revolution: 64
controller: ULN2003
motor diameter: 28 mm
reduction ratio: 1:64
number of phases: 4
dimensions: 35 x 32 x 10 mm

Velleman WPI401 Document 1
vma401_a4v01.pdf

Velleman WPI401 Document 2
uln2003_datasheet.pdf

Velleman WPI401 Document 3
vma401_stepper_motor.pdf

Velleman WPI401 Document 4
FQYRHSTHMVJ7U24.pdf

Velleman WPI401 Document 5
vma401_example.zip

To purchase bulk quantities, Please contact our Sales Department
(+1-416-494-8999) or email shop@sayal.com
