TEENSY2.0 USB DEVELOPMENT BOARD WITH ARDUINO SOFTWARE
Part Number
TEENSY2.0
Manufacturer
Stock Number
1825-KA1
SKU Number
254665
Stock Number: 1825-KA1    $26.95
$26.95
ea. CAD
Details
Store Stock
Document Links
The Teensy is a complete USB-based micro-controller development system, in a very small footprint, capable of implementing many types of projects.

All programming is done via the USB port. No special programmer is needed, only a standard "Mini-B" USB cable and a PC or Macintosh with a USB port.

Features USB can be any type of device single push button programming easy to use Teensy Loader application compatible with Arduino® software and libraries free software development tools works with Mac® OS X, Linux® & Windows® tiny size, perfect for many projects.

Features:
  • ATMEGA32U4 8 bit AVR® 16 MHz microcontroller
  • 32K flash memory
  • 2.56K RAM
  • 1K EEPROM
  • 25 digital I/O
  • 12 analog inputs
  • 7 PWM outputs
  • 1 UART
  • 1 SPI
  • 1 I2C
  • dimensions: 1.2 x 0.7 inch (30.5 x 17.78 mm)
Pin Assignments, Using Arduino Software

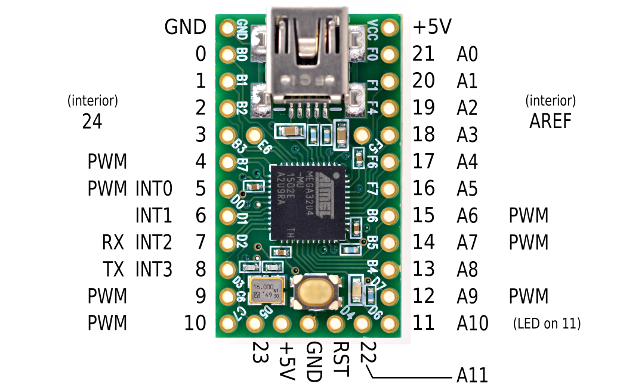

Teensy 2.0 Pinout
